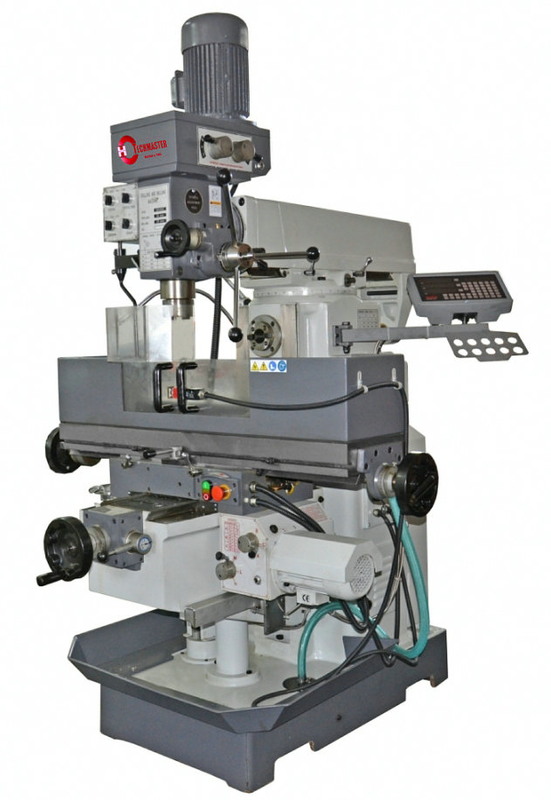

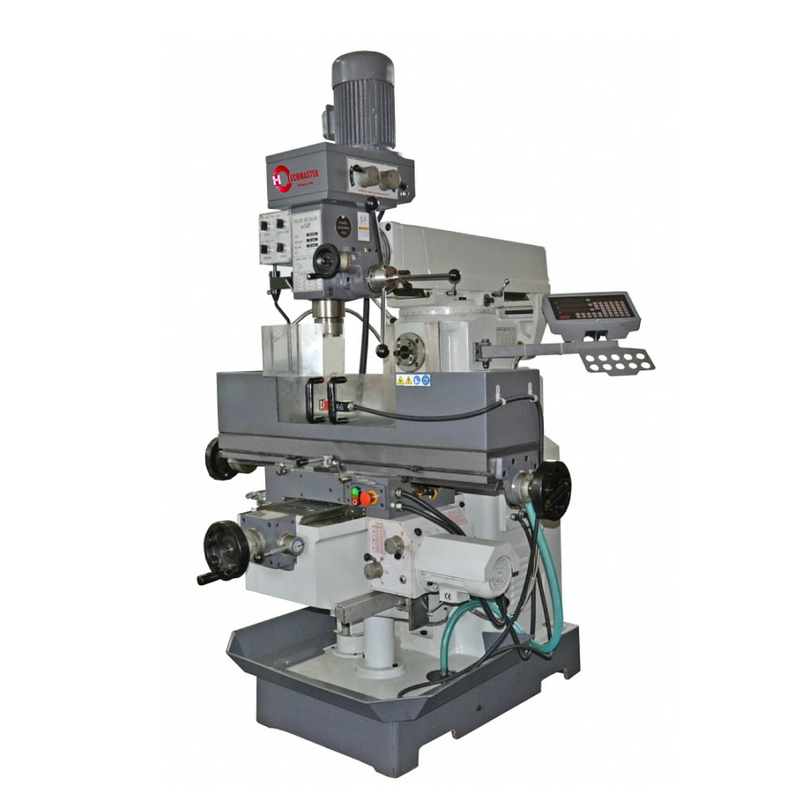

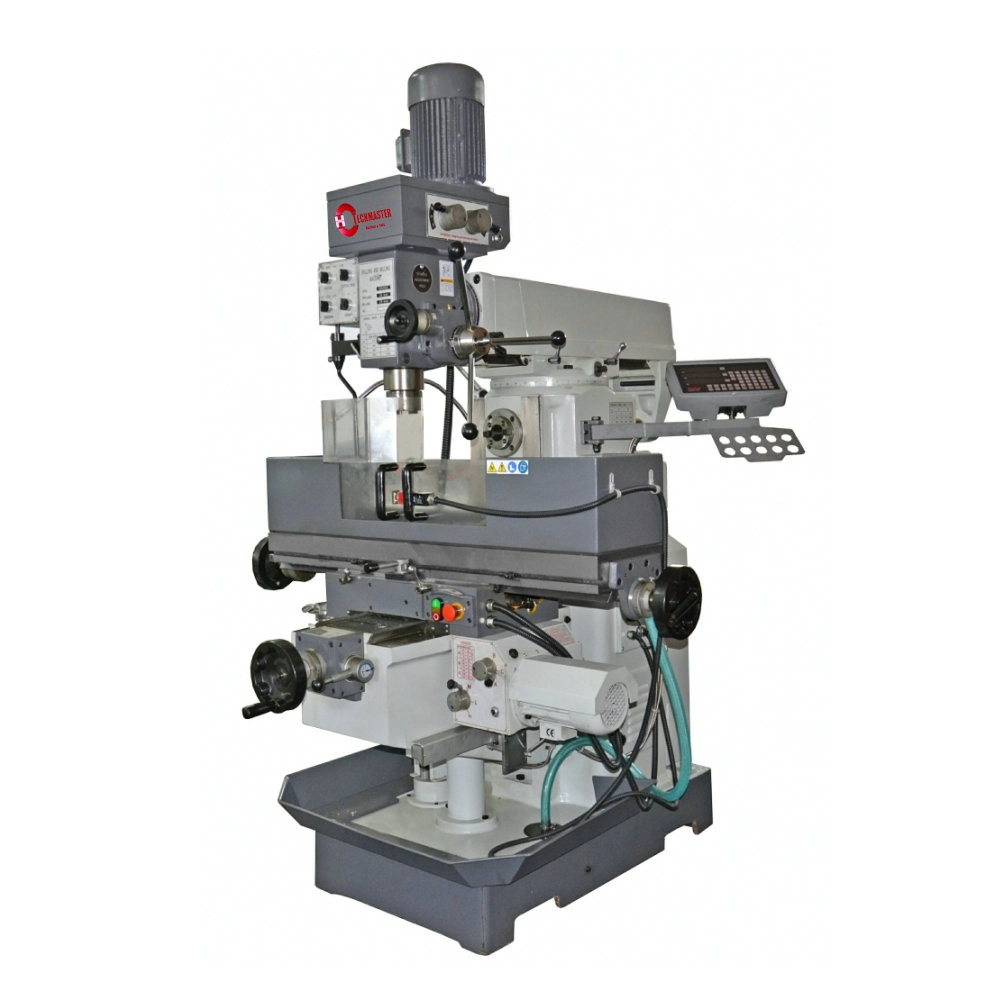

| MODEL | XZ6350A |
| Max.drilling dia.(MT4 taper) (mm) | 50 |
| Max.end milling width (mm) | 100 |
| Max.vertical drilling dia. (mm) | 25 |
| Max.tapping dia. (mm) | M16 |
| Spindle nose to table surface(mm) | 100-430 |
| Spindle speed range (r.p.m) | 115-1750Vertical/ 38-1310Horizontal |
| Spindle travel (mm ) | 120 |
| Table size (mm ) | 1120×260 |
| Table travel (mm) | 600×270 |
| Overall dimensions (mm ) | 1352×1285×2150 |
| Main motor power (KW ) | 0.85/1.5 (Vertical) 2.2 (Horizontal) |
| N.W/G.W (Kg ) | 1500/1600 |
