Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed
And cyclic change of feeding speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.

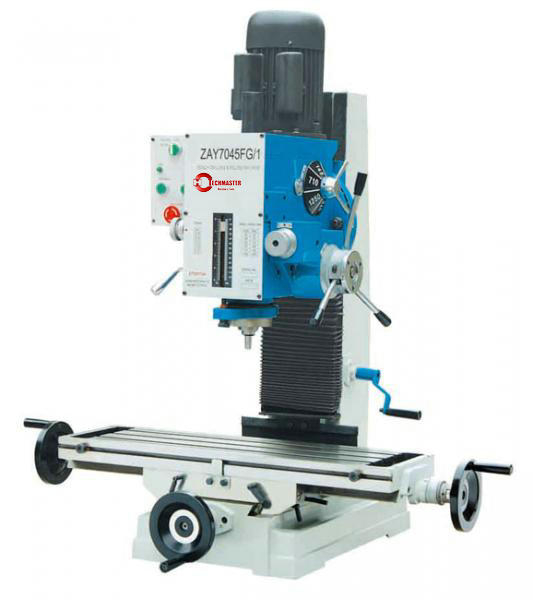

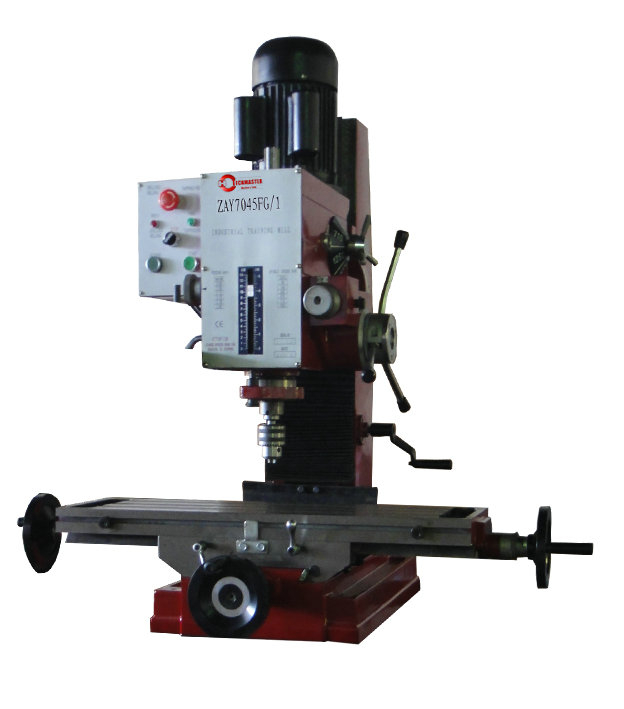

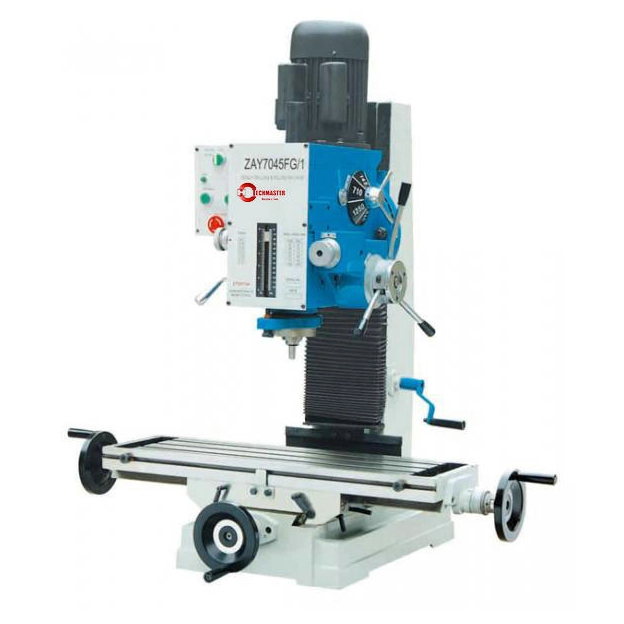

| ITEM | ZAY7032FG/1 | ZAY7040FG/1 | ZAY7045FG/1 |
| Drilling capacity | 32mm | 40mm | 45mm |
| Max.boring diameter | 50mm | 60mm | 70mm |
| Max Face mill capacity | 63mm | 80mm | 80mm |
| Max End mill capacity | 20mm | 32mm | 32mm |
| Max distance from spindle nose to table | 450mm | 450mm | 450mm |
| Min distance from spindle axis to column | 260mm | 260mm | 260mm |
| Spindle travel | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Step of spindle speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Auto-feeding step of spindle | 6 | 6 | 6 |
| Auto-feeding amount of spindle | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
| Swivel angle of headstock (perpendicular) | ±90° | ±90° | ±90° |
| Table size | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 175mm | 175mm | 175mm |
| Left and right travel of table | 500mm | 500mm | 500mm |
| Motor Power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Net/Gross weight | 320kg/370kg | 323kg/373kg | 325kg/375kg |
| Packing size | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
