Feature
Drilling, tapping
Head swivels 360°
Worktable up and down perpendicularly
Super hign column
Wide and big table
pricision micro feed (Auto-feed optional)
Heavy-duty tapered roller bearing spindle
Positive spindle lock
Geared drive, lower noise
Technical Parameter

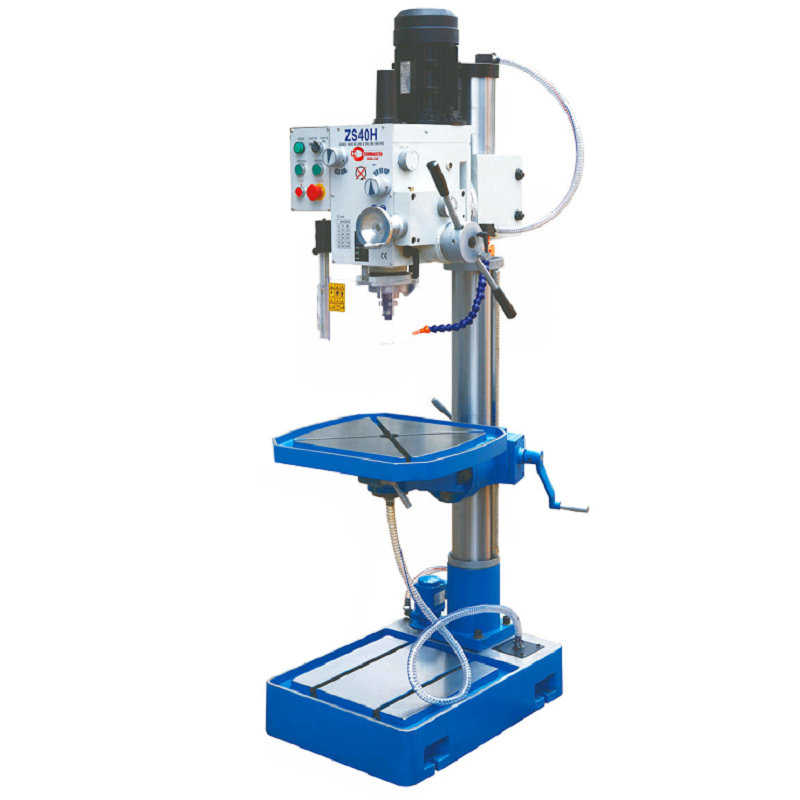

Model | ZS40H |
Max.drilling capacity | 31.5mm(MT3) 40mm(MT4) |
Max.distance spindle nose to work table | 715 mm |
Max.distance spindle nose to base | 1180 mm |
Work table size | 500x460 mm |
Spindle taper | MT3 or MT4 |
Spindle travel | 120 mm |
Spindle speed(6steps) | 75-1600 rpm (50HZ) |
Diameter of column | 115 mm |
Dimension of base | 650x450 mm / 670x470 mm (water tank) |
Distance spindle axis to column | 297.5 mm |
Motor power | 1.5 kw |
NW/GW | 335/365 kgs |
Packing size | 730x760x1870 mm |
Standard accessories: | |
| 1、Draw bra | 2、Adapter |
| 3、Taper shank for drilling chuck | 4、Drilling chuck |
| 5、T slot bolt | 6、Washer |
| 7、Nut | 8、Tilted wedge |
| 9、Spanner | 10、Oil gun |
| 11、Instruction Manual | 12、Certificate of inspection |
| 13、Pacjing list | |
Optional accessories | |
| 1、Spindle power feed | 2、Halogen working lamp |
| 3、Cooling pump | 4、Power off protective cover(CE) |
| 5、Tapping function | 6、Double speed motor |
| 7、Electronic depth display | |
