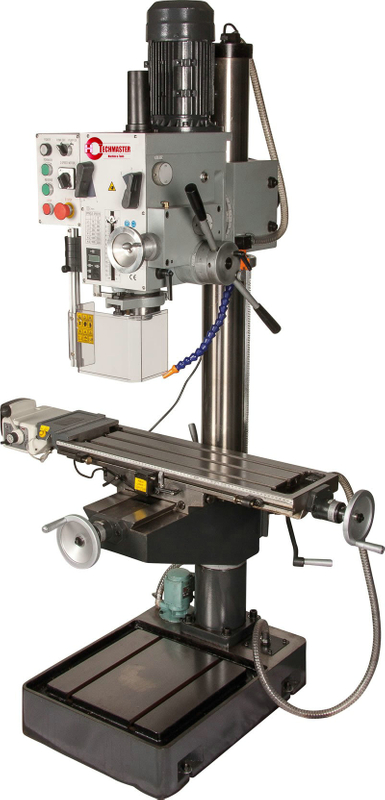

| Model | ZX40HS |
| Max. Drilling dia (Steel/Iron) | 31.5/40mm |
| Max milling capacity(Face/End) | 80/32mm |
| Spindle taper | MT3/MT4/R8/ISO30 |
| Worktable Size | 600× 190mm |
| Worktable travelX/Y | 370/190mm |
| Dimensions of base | 650× 450mm |
| Spindle travel | 130mm |
| Spindle center to column surface | 275mm |
| Spindle nose to worktable | 610mm |
| Spindle nose to base | 1180mm |
| Diameter of column | 115mm |
| Spindle speed(option ) | 6steps: 60Hz 90~1970rmp 50Hz 75~1600rmp |
| Motor | 1.1kw |
| N. W/G. W | 350/400KG |
| Packing size(L× W× H)mm | 820× 720× 1830mm |
| Sdts/20′ Container | 21sets |
