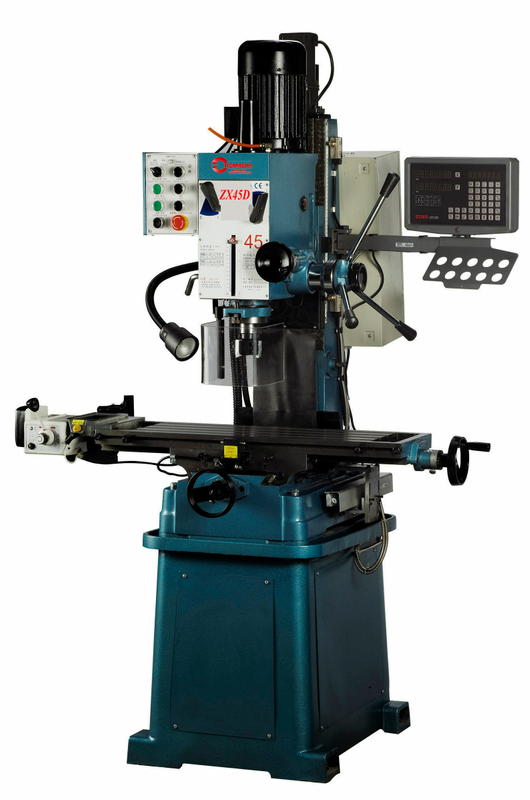

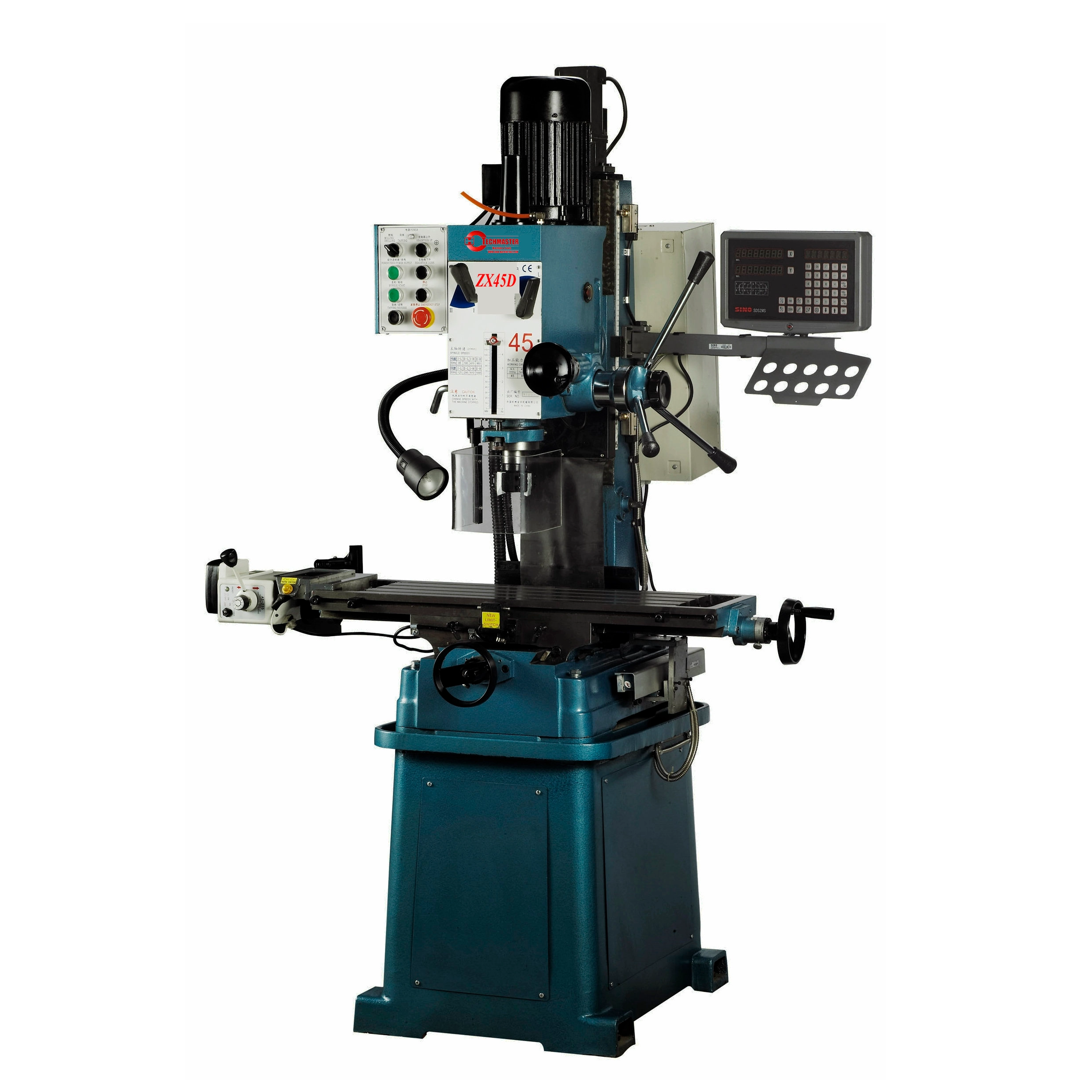

GEARED DRILLING AND MILLING MACHINE STEELMASTER ZX45D
GENERAL MILL DRILL FEATURES
3-Axis digital readout system (optional)
Gear driven head with 6 speeds
Dovetailed vertical Z-Axis
Pendant control with swivel arm
Digital tilting head gauge (optional)
Tilting head to ± 90 dgree from vertical with digital display
Large 820mm x 240mm ground work table with T-slots
Adjustable lead screw nuts eliminating backlash on both Axis
Fine feed hand wheel operating quill feed
Longitudinal X-Axis power feed
Motorised head for Z-Axis travel (optional)
Forward and reverse on/off switch
MT3 spindle with 75mm diameter lockable quill
Adjustable table and drill length stops
Metric dial graduations @ 0.05mm for X & Y-Axis
Rear slide-way cover and slide clamps on all Axis
Table lock on both Axis
Heavy duty cast iron stand with coolant tray
Coolant system, swarf tray & work light (optional)
Accessories available
3-Axis digital readout system (optional)
Cast iron stand (optional)
Coolant system (optional)
X-Axis Power feed unit (optional)
Motorised vertical head motor (optional)
Digital tilting head gauge(optional)
Halogen light
Drill chuck & arbour
Tungsten-tipped cutter & arbour
Instruction booklet
Toolbox
| CODE | ZX45D |
| DIGITAL READOUT |
|
| DRILLING CAPACITY | 31.5mm |
| END MILLING CAPACITY | 28mm |
| FACE MILLING CAPACITY | 80mm |
| SPINDLE TAPER | MT3(MT4 is optional)) |
| SPINDLE SPEED | 6(95-1600rpm) |
| SPINDLE TRAVEL | 120mm |
| SPINDLE TO TABLE | 450mm |
| COLUMN DIAMETER | Dovetailed |
| SPINDLE TO COLUMN | 273mm |
| TABLE SIZE | 820 x 240mm |
| T-SLOT | 14mm |
| WORK TABLE CAPACITY | 55kg |
| LONGITUDINAL TRAVEL (X-AXIS) | 475mm |
| CROSS TRAVEL (Y-AXIS) | 185mm |
| VERTICAL TRAVEL (Z-AXIS) | 410mm |
| MOTOR POWER | 1.5kW / 2hp |
| MOTOR VOLTAGE | 230V |
| OVERALL HEIGHT | 1550mm |
| WEIGHT (NETT) | 430kg |
