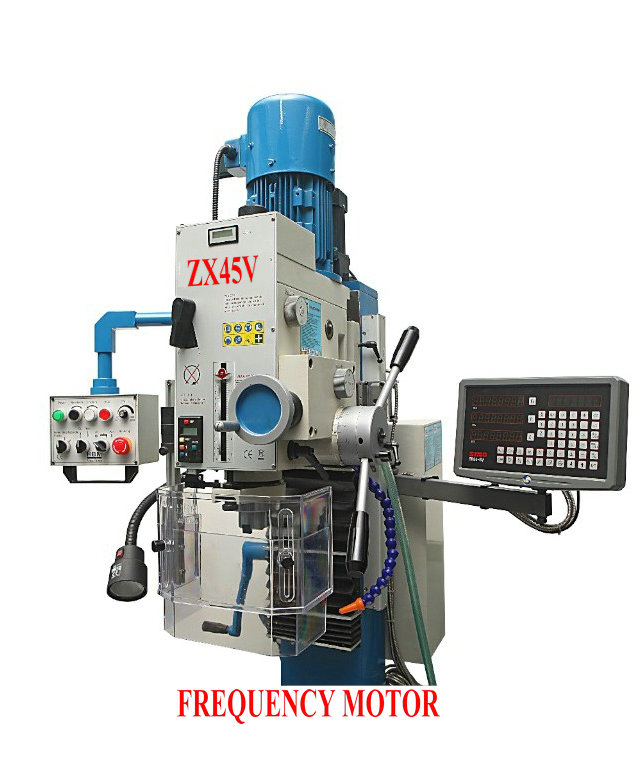

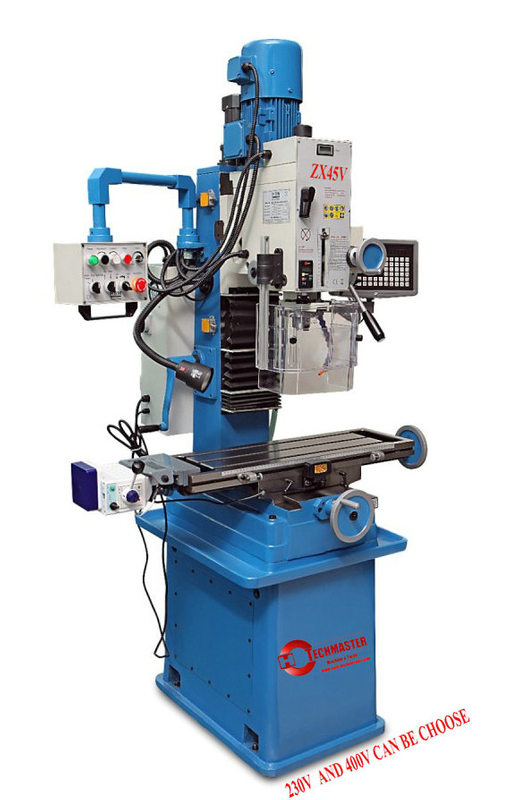

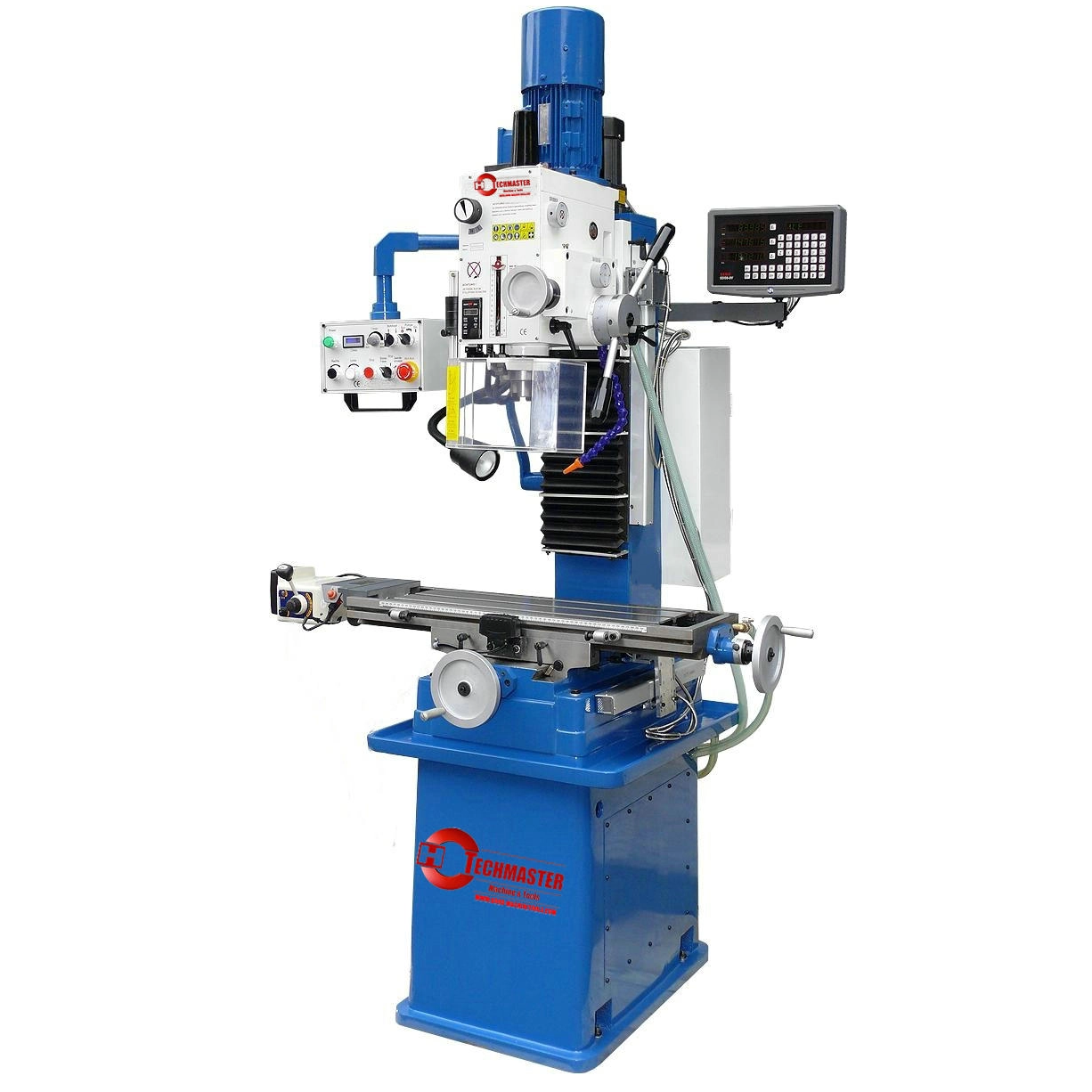

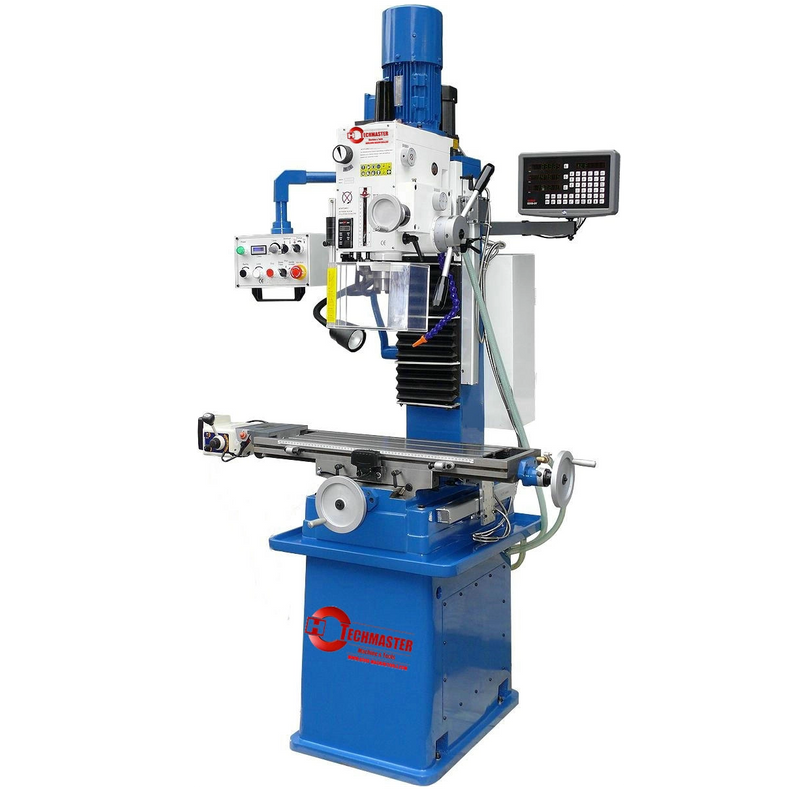

| Model No.< | ZX45V |
| Max. drilling capacity | 45mm |
| Table size<o:p> | 800x240mm |
| Cross travel<o:p> | 220mm |
| Longitudinal travel<o:p> | 580mm |
| Vertical travel<o:p> | 300mm |
| Spindle taper<o:p> | MT 4 |
| Spindle stroke<o:p> | 120mm |
| T-slot size<o:p> | 14mm |
| Range of spindle speeds<o:p> | 75-2500rpm(230V AND 400V CAN BE CHOOSE) |
| Range of spindle feeds<o:p> | 0.1/0.18/0.26mm/ |
| Frequency Motor<o:p> | 1.5kw |
| Net weight<o:p> | 580kg |
