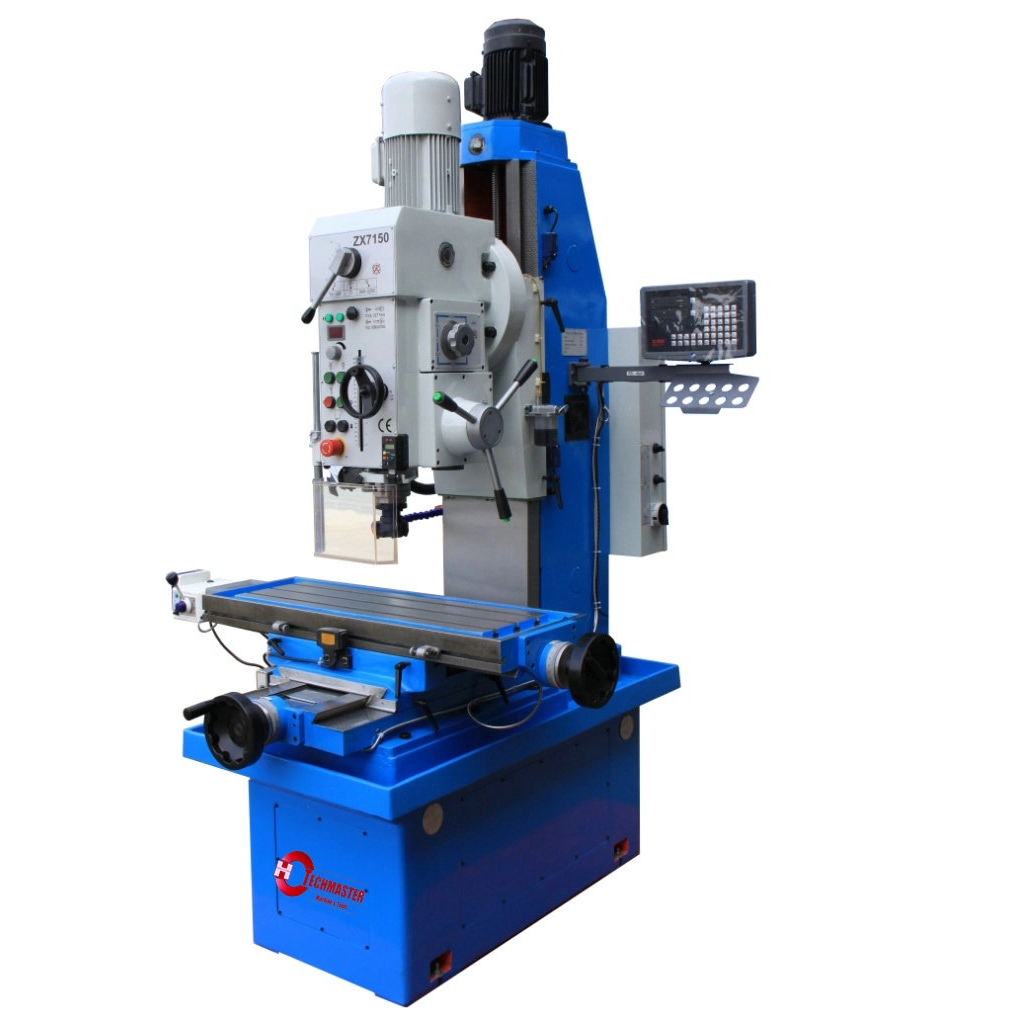

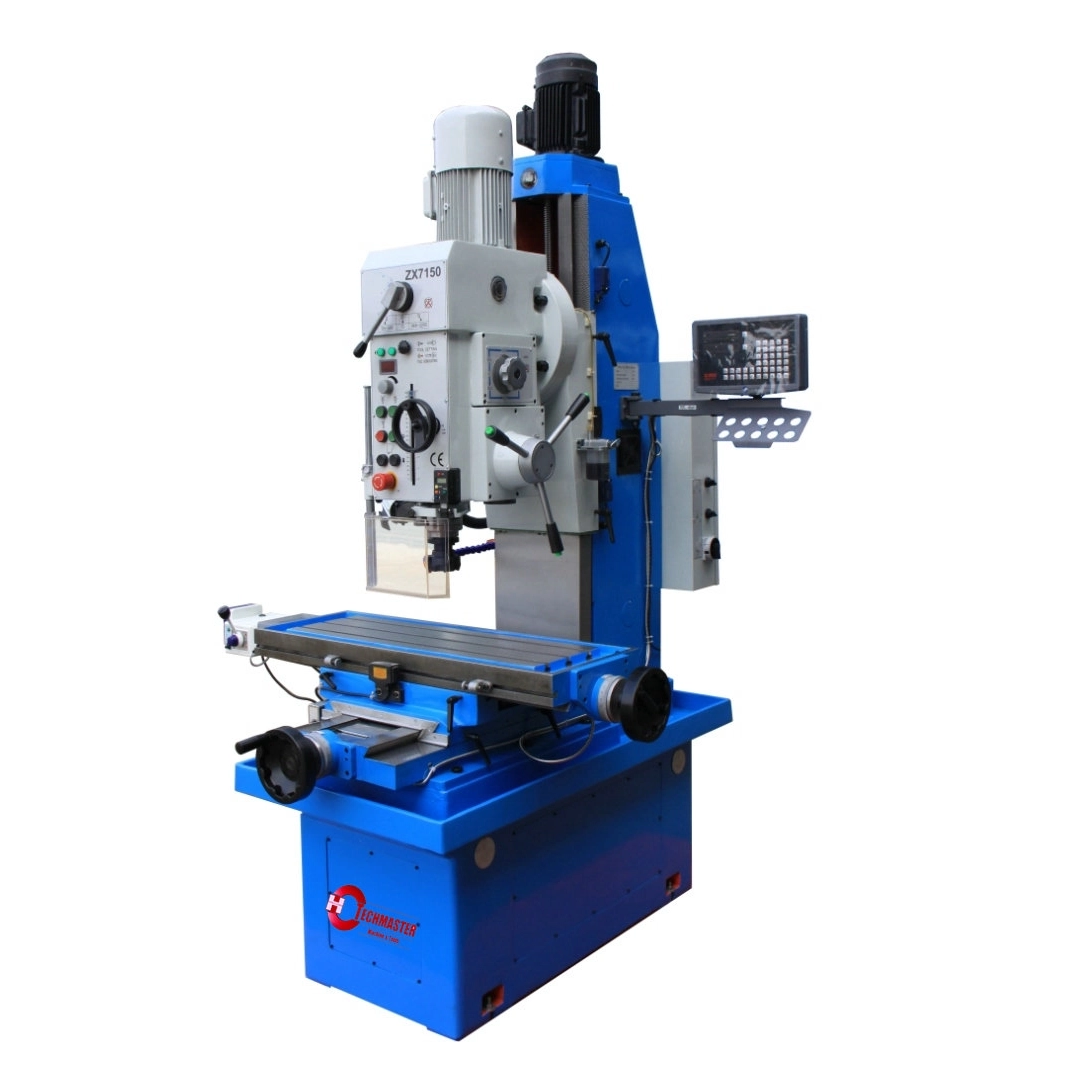

ZX7150 Drilling and Milling Machine
Stepless timing feed of worktable in X direction
display in X,Y directions; thin oil lubr
| Specification | Data | Unit | ||
| Max. drilling diameter(steel) | 50 | mm | ||
| Max. tapping diameter(steel) | M30 | mm | ||
| Max. milling cutter diameter | 80 | mm | ||
| Distance between spindle center to column guide surface | 450 | mm | ||
| Max. distance between spindle end to the worktable surface | 550 | mm | ||
| Max. travel of spindle | 200 | mm | ||
| Spindle taper bore | MT.4 | Morse | ||
| Travel of spindle box up and down | 420 | mm | ||
| Speed of spindle box up and down | 1780 | mm/min | ||
| Spindle speed steps | Stepless | |||
| Spindle speed range | 55-348,348-2200 | r/min | ||
| Spindle feed steps | 6 | Step | ||
| Spindle feed range | 0.08-0.50 | mm/r | ||
| Worktable feed steps in X direction | Stepless | Step | ||
| Worktable feed range in X direction | 4-480 | mm/min | ||
| Rapid moving speed of worktable in X direction | 640 | mm/min | ||
| Travel of worktable in X and Y direction | 450X340 | mm | ||
| Area of worktable(LXW) | 960X340 | mm | ||
| Numbers and width of the T solts for worktable | 3~14 | mm | ||
| Power of main motor(tranducer motor) | 2.2 | kw | ||
| Power and speed of motor for spindle box up and down | 1.1, 910 | kw,r/mm | ||
| Data of power feed for worktable | 220. 20 | V,N.m | ||
| Machine dimension(LXWXH) | 1600X1450X2420 | mm | ||
| Weight of machine(Net weight) | 1500 | kg | ||
| Packing size | 1680X1280X2250 | mm | ||
ZX7150 Drilling and Milling Machine
Stepless timing feed of worktable in X direction
display in X,Y directions; thin oil lubr
| Specification | Data | Unit | ||
| Max. drilling diameter(steel) | 50 | mm | ||
| Max. tapping diameter(steel) | M30 | mm | ||
| Max. milling cutter diameter | 80 | mm | ||
| Distance between spindle center to column guide surface | 450 | mm | ||
| Max. distance between spindle end to the worktable surface | 550 | mm | ||
| Max. travel of spindle | 200 | mm | ||
| Spindle taper bore | MT.4 | Morse | ||
| Travel of spindle box up and down | 420 | mm | ||
| Speed of spindle box up and down | 1780 | mm/min | ||
| Spindle speed steps | Stepless | |||
| Spindle speed range | 55-348,348-2200 | r/min | ||
| Spindle feed steps | 6 | Step | ||
| Spindle feed range | 0.08-0.50 | mm/r | ||
| Worktable feed steps in X direction | Stepless | Step | ||
| Worktable feed range in X direction | 4-480 | mm/min | ||
| Rapid moving speed of worktable in X direction | 640 | mm/min | ||
| Travel of worktable in X and Y direction | 450X340 | mm | ||
| Area of worktable(LXW) | 960X340 | mm | ||
| Numbers and width of the T solts for worktable | 3~14 | mm | ||
| Power of main motor(tranducer motor) | 2.2 | kw | ||
| Power and speed of motor for spindle box up and down | 1.1, 910 | kw,r/mm | ||
| Data of power feed for worktable | 220. 20 | V,N.m | ||
| Machine dimension(LXWXH) | 1600X1450X2420 | mm | ||
| Weight of machine(Net weight) | 1500 | kg | ||
| Packing size | 1680X1280X2250 | mm | ||
