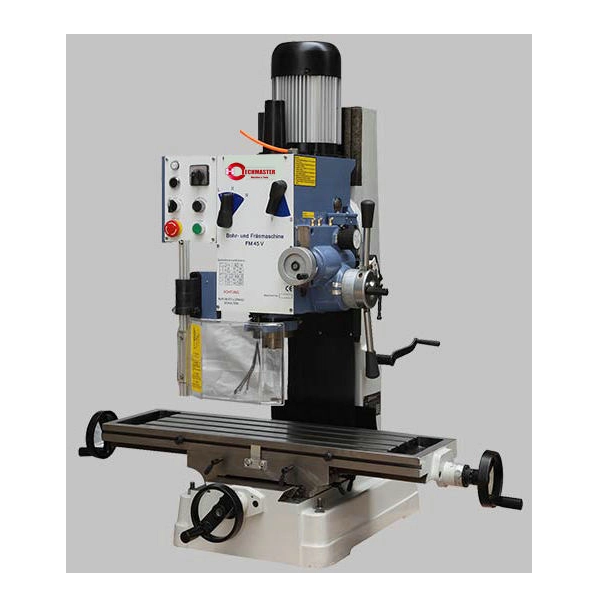

| Model | ZXB45A |
| Drill capacity in steel | 32 mm |
| Drill capacity on cast iron | 45mm |
| Distance spindle to column | 270 mm |
| Spindle speed | (12) 50 - 2520 rpm |
| Spindle taper | MT 3 |
| Spindle stroke | 120 mm |
| Spindle feed | (3) 0, 12 / 0, 19 / 0, 26 mm/r |
| Table size / T-slot size | 730 x 210 mm / 14 mm |
| Travel (x / y) | 500 / 210 mm |
| Mill head tiltable | -90° to +90° |
| Distance spindle / table | 100 - 420 mm |
| Height adjustment of mill head | 325 mm |
| Column diameter | 115 mm |
| Motor power output S1 100% | 0, 85 / 1, 1 KW (400 V) |
| Motor power input S6 40% | 1, 1 / 1, 5 kW (400V) |
| Machine dimension (W x D x H)* | 1050 x 830 x 1450 mm |
| Weight approx. | 260 kg |
