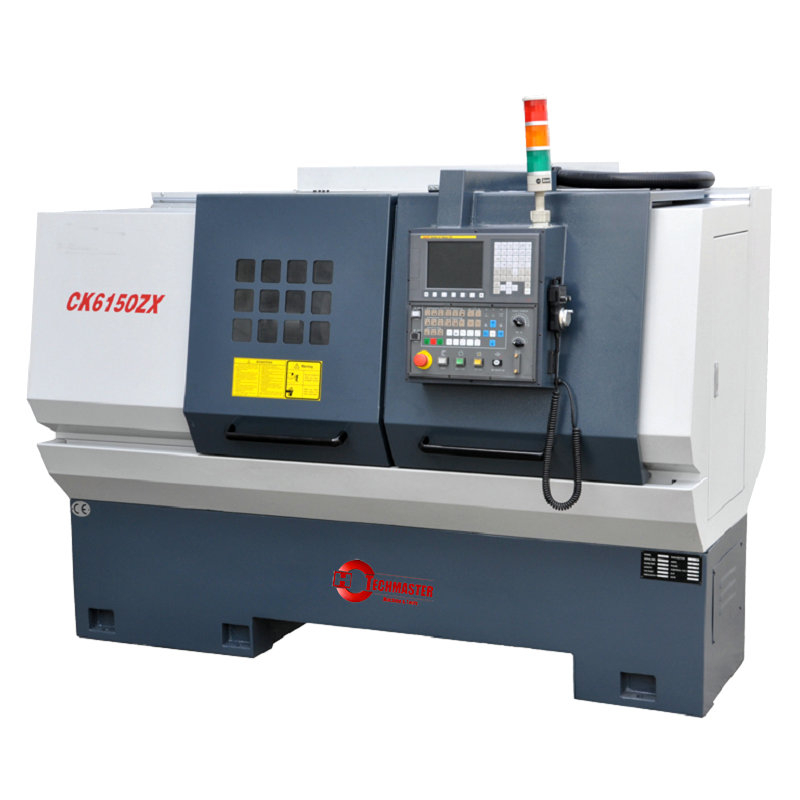

CNC Lathe Machine Model:CK6140ZX – CK6150ZX
| Quantity: | |
|---|---|
PRODUCT FEATURES:
Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
Both chuck and tailstock are supplied with hydraulic or manual type.
The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
The spindle bore size is Ø 80mm. The spindle system is high in the rigidity and accuracy.
SPECIFICATIONS:
ITEMS | CK6140ZX | CK6146ZX | CK6150ZX |
Over bed | Ø400mm | Ø460mm | Ø500mm |
Over carriage | Ø210/Ø165mm (Gang tools) | Ø240/Ø205mm (Gang tools) | Ø280/Ø245mm (Gang tools) |
Maximum turned length | 750/1000/1500mm | ||
Max. turning length | 600/850/1350 mm | ||
Spindle nose | D8 | ||
Spindle bore | Ø80mm | ||
Cone hole diameter and taper of spindle hole | MT.No7 | ||
Steps of spindle speed (Manual) | Variable | ||
Range of spindle speed | 100~2000r/min | ||
Rapid feed for Axis Z | 10m/min | ||
Rapid feed for Axis X | 8 m/min | ||
Max. travel of Axis Z | 710/960/1460 mm | ||
Max. travel of Axis X | 250/330mm(Gang tools) | ||
Min. input | 0.001mm | ||
Tool post stations | 4-ways or 6-ways or gang tools | ||
Tool cross section | 25×25 mm | ||
External diameter | Ø75mm | ||
Taper of bore | MT.No.4 | MT.No.5 | |
Max. Traverse | 130mm | ||
Power of main motor | 5.5KW(Extra 7.5KW) | ||
Power of cooling pump | 75W | ||
Overall dimensions(L×W×H) | 2060/2310/2790×1180×1500mm | ||
Net weight | 2100,2250,2800Kg | ||
