2.The spindle is supported by NSK series bearings.
3.An automatic timely lubrication device is supplied for the machine.
4.It has a stainless steel inner protection and a totally sealed outside protection.
5.Differrent control and parts can be combined according to customers’ requirement.

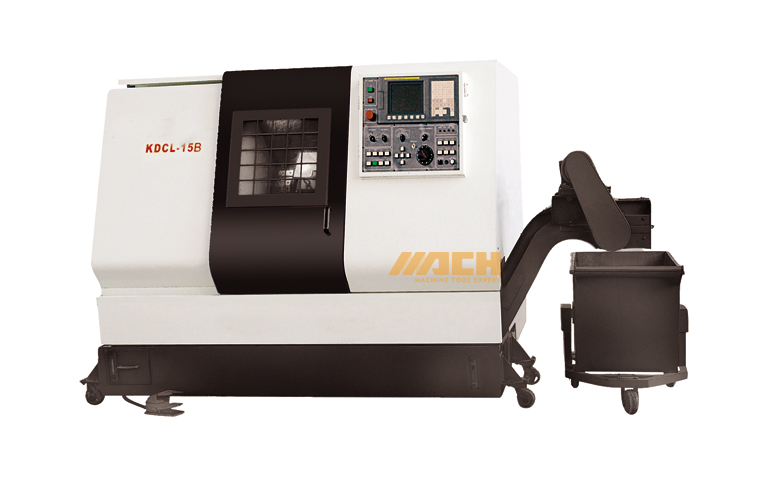

| ITEMS | KDCL-15B |
| Max. swing over bed | 360 mm |
| Max. cutting dia. For disc parts | 250 mm |
| Max. cutting dia. For axle parts | 150 mm |
| Maximum turned length for axle parts | 300 mm |
| Max. cross travel (X) | 150 mm |
| Max. longitudinal travel (Z) | 320 mm |
| Spindle bore | 38mm |
| Spindle nose | A2-5 |
| Taper bore of spindle | M.T.No.5 |
| Spindle speed | 4000r/min |
| Chuck dia. | 6″ |
| Rapid feed for axis X | 10m/min |
| Rapid feed for axisZ | 16m/min |
| Number of tool post | 8 |
| Outside dia. Cutting tool shank | 25×25mm |
| Max. inner dia. Cutting tool shank | 25 mm |
| Guiide ways X&Z | Precision linear ball rail |
| Servo mator for X axis | 8Nm |
| Servo mator for Z axis | 12Nm |
| Tailstock sleeve dia. | 80 mm |
| Tailstock sleeve travel | 90 mm |
| Tailstock center type | M.T.No.4 |
| Type of spindle motor | Variable-frequency |
| Spindle motor power | 5.5KW |
| Bed structure | 45° slant bed |
| Min. Input | 0.001 mm |
| Repeatability | ±0.003mm |
| Capacity for coolant | 100L |
| Surface roughness | ≤Ra0.8μm(Nonferrous) |
| ≤Ra1.6μm(Steel part) | |
| Overall dimensions（L×W×H） | 2700×1460×1680 mm |
| Net weight | 3000 Kg |
3-JAW CHUCK
CIRCLE TOOLPOST BASE
TOOL POST CLAMP GIB
SQUARE TOOL POST BASE
TOOL BOX
