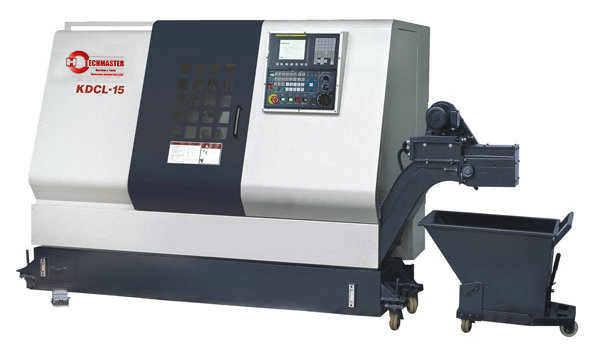

SPECIFICATIONS:
| ITEMS | KDCL-15 | KDCL-15B |
| Max. swing over bed | Ø360 mm | |
| Max. cutting dia. For disc parts | Ø250 mm | |
| Max. cutting dia. For axle parts | Ø150 mm | |
| Maximum turned length for axle parts | 300 mm | |
| Max. cross travel (X) | 150 mm | |
| Max. longitudinal travel (Z) | 320 mm | |
| Spindle bore | Ø56mm | Ø38mm |
| Spindle nose | A2-5 | |
| Taper bore of spindle | M.T.No.5 | |
| Spindle speed | 6000r/min | 4000r/min |
| Chuck dia. | 6″ | |
| Rapid feed for axis X | 12m/min | 10m/min |
| Rapid feed for axisZ | 20m/min | 16m/min |
| Number of tool post | 8 | |
| Outside dia. Cutting tool shank | 25×25mm | |
| Max. inner dia. Cutting tool shank | Ø25 mm | |
| Guiide ways X&Z | Precision linear ball rail | |
| Servo mator for X axis | 8Nm | |
| Servo mator for Z axis | 12Nm | |
| Tailstock sleeve dia. | Ø80 mm | |
| Tailstock sleeve travel | 90 mm | |
| Tailstock center type | M.T.No.4 | |
| Type of spindle motor | Servo | Variable-frequency |
| Spindle motor power | 5.5/7.5KW | 5.5KW |
| Bed structure | 45° slant bed | |
| Min. Input | 0.001 mm | |
| Repeatability | ±0.003mm | |
| Capacity for coolant | 100L | |
| Surface roughness | ≤Ra0.8μm(Nonferrous) | |
| Overall dimensions（L×W×H） | 2700×1460×1680 mm | |
| Net weight | 3000 Kg | |
PRODUCT FEATURES:
●Use Fanuc control system and servo motorsl
●The spindle is supported by NSK series bearings.
●An automatic timely lubrication device is supplied for the machine.
●It has a stainless steel inner protection and a totally sealed outside protection.
●Differrent control and parts can be combined according to customers’ requirement.
