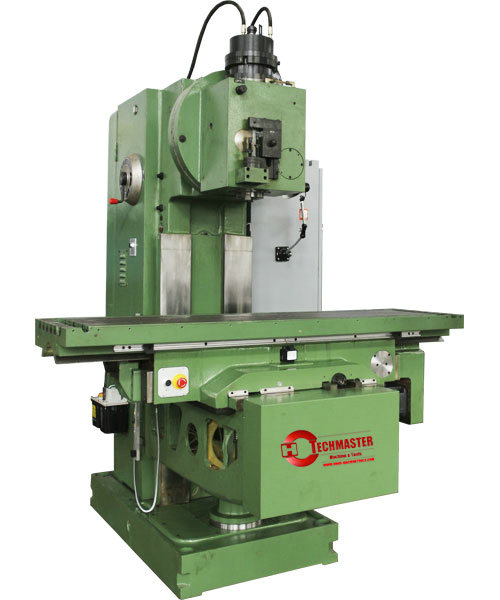

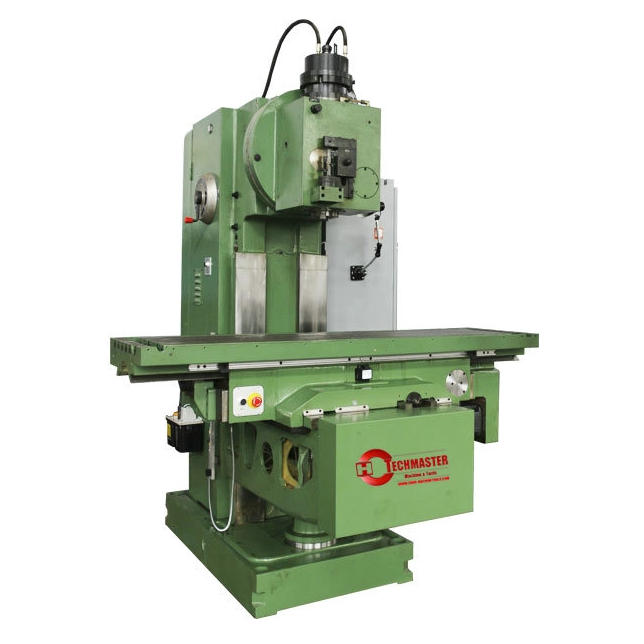

Features of FFX5045 Heavy-duty Vertical Knee-type Milling Machine
1. FX5045 Heavy-duty Vertical Knee-type Milling Machine is developed by absorbing the features and technology of advanced European countries in the middle period of 1990s.
2. FX5045 Heavy-duty Vertical Knee-type Milling Machine has strong loading capacity, large specification parameter, high rigidity and unprecedented precision.
3. The quality of FX5045 Heavy-duty Vertical Knee-type Milling Machine is obtained according to several years’ combination design or transformation design, and the birth of this kind of product has made the dream of milling machine to pursue senior, high-level knee-type milling machine come true.
4. The machining capacity of FX5045 Heavy-duty Vertical Knee-type Milling Machine is greatly enlarged with optional accessories as dividing head, rotary table, machine vice, milling chuck, etc.
5. Digital readout is added to FX5045 Heavy-duty Vertical Knee-type Milling Machine, which can improve the machining accuracy and producing efficiency.
6. FX5045 Heavy-duty Vertical Knee-type Milling Machine is driven by ball screw.
Technical parameters of FX5045 Heavy-duty Vertical Knee-type Milling Machine
Model | Unit | FX5045 |
Working table size(L×W) | mm(in) | 1800x500 (71''x20'') |
T slot (Width × No. × Pitch) | mm(in) | 18x6x63 (0.71''x6x2.48'') |
Max. load-bearing | kg | 1500 |
Table travel manual (X×Y×Z) | mm(in) | 1330x360x630 (52''x14''x25'') |
Table travel power(X×Y×Z) | mm(in) | 1320x345x600 (52''x13.6''x23.6'') |
Spindle torque | Nm | 870 |
Spindle motor power | kW | 15 |
Spindle taper | | ISO50 7: 24 |
Spindle speed | rpm | 17 steps 45~1800 |
Max swiveling angle of vertical head | º | ±45º |
Distance from spindle to working table | mm(in) | 95~725 (3.7''~29'') |
Feed step | | 18 |
Feed rate (X,Y/Z) | mm/min(in/min) | 16-800/5-250 (0.63''-32''/0.2''-9.8'') |
Rapid feed (X,Y/Z) | mm/min(in/min) | 3000/1000 (118''/39'') |
Feed motor power | kW | 2.2 |
Overall dimensions (L×W×H) | mm(in) | 2530x2005x2595 (100''x79''x102'') |
Packing size (L×W×H) | mm(in) | 2580×2250×2470 (102''x89''x97'') |
Weight (net/gross) | kg | 4800/5700 |
Standard accessories of FX5045 Heavy-duty Vertical Knee-type Milling Machine
1. Milling arbor; 2. Drawbar;
3. Middle sleeve; 4. Inner hexagon spanner;
5. Spanner; 6. Oil gun;
Optional accessories of FX5045 Heavy-duty Vertical Knee-type Milling Machine
1. Dividing head; 2. Rotary table;
3. Ball screw; 4. 3-axis DRO (Digital Read Out);
