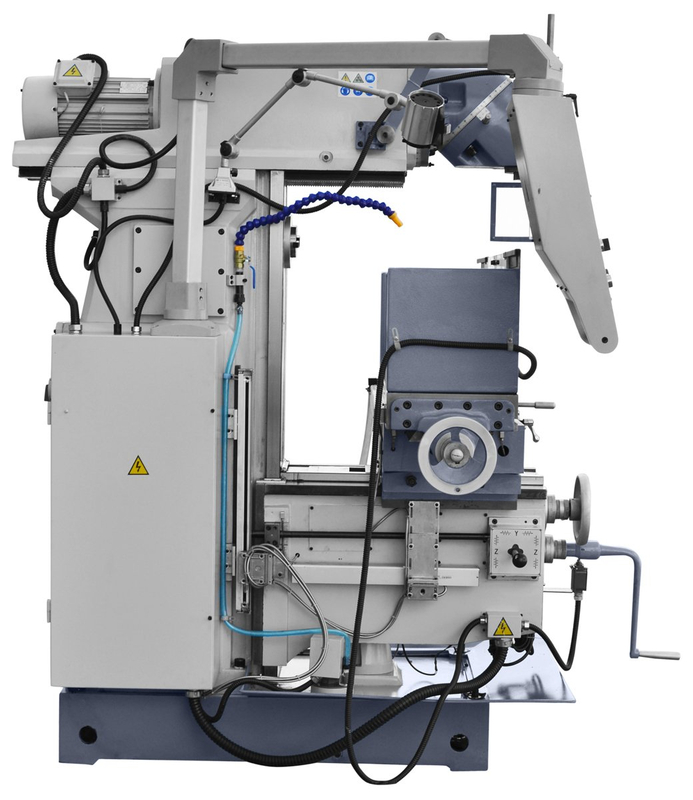

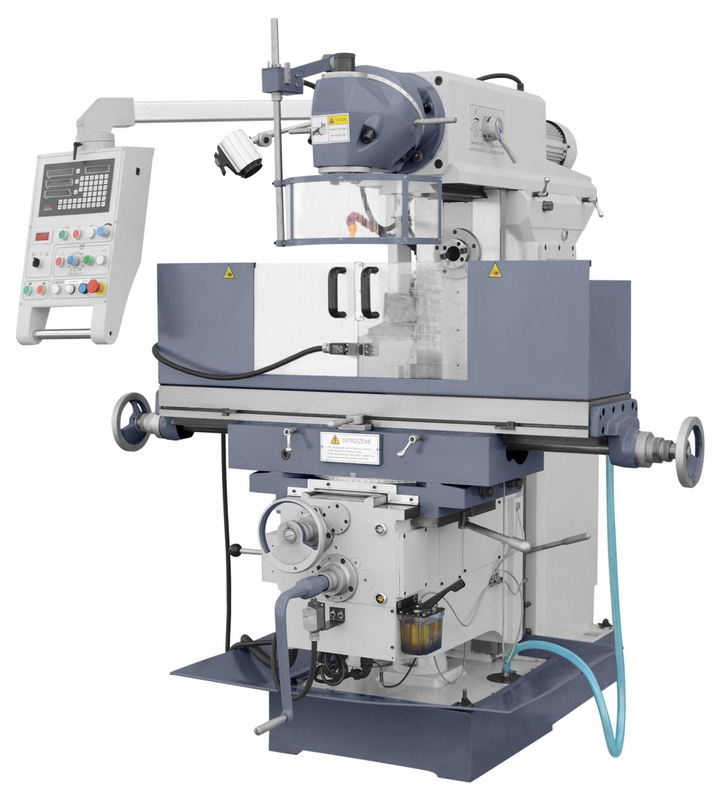

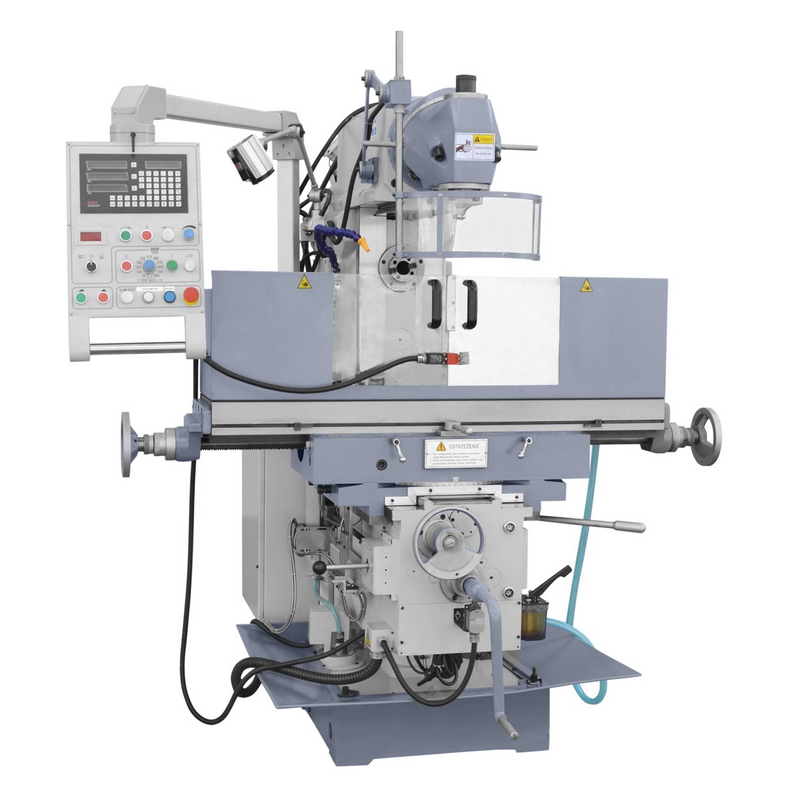

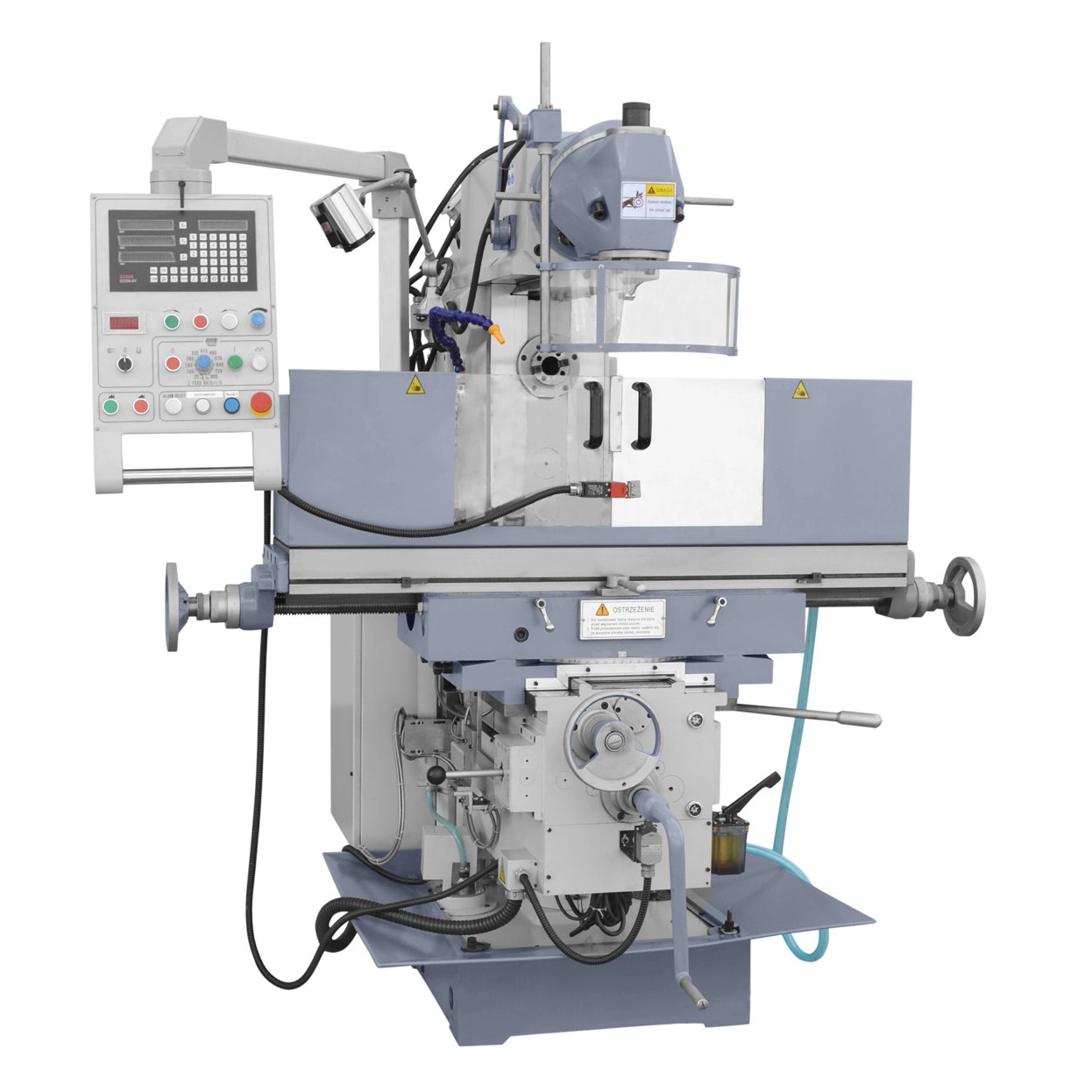

Universal milling machine UWF 126 PREMIUM
| Quantity: | |
|---|---|
Technical data | |
|---|---|
| TABLE WORKING DIMENSIONS | 1320x320 mm |
| TABLE TRAVEL LONGITUDINAL | 800 mm |
| TABLE CROSS TRAVEL | 290 mm |
| VERTICAL TABLE TRAVEL | 400 mm |
| NUMBER OF T-SLOTS IN TABLE | 3 |
| DISTANCE BETWEEN T-SLOTS | 95 mm |
| SPINDLE TAPER | 7:24 rpm ISO40 |
| SPINDLE SPEED | 75-1600 rpm |
| VERTICAL SPINDLE DISTANCE FROM TABLE | 183-583 mm |
| RAPID CROSS FEED | 800 mm/min |
| RAPID VERTICAL FEED | 267 mm/min |
| HORIZONTAL SPINDLE MOTOR | 4 kW |
| VERTICAL SPINDLE MOTOR | 4 kW |
| SERVOMOTOR POWER (FEED) | 1,8 kW |
| OVERALL DIMENSIONS | 2550x2161x2102 mm |
| WEIGHT | 2400 kg |
