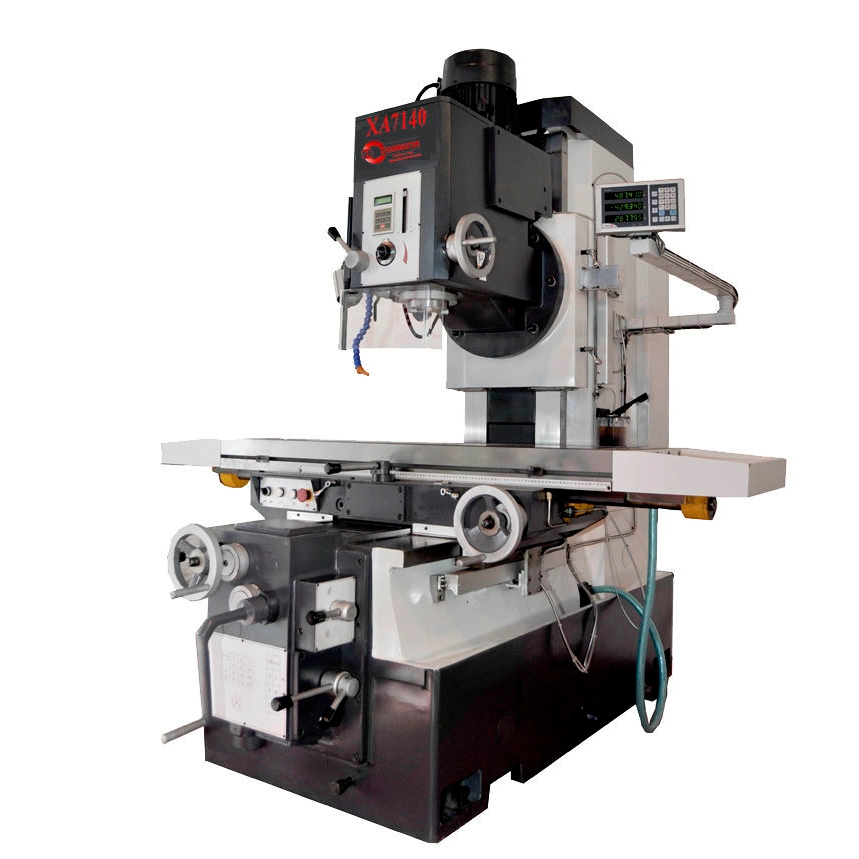

Industrial horizontal milling machine with traverse and rapid traverse in all 3 directions. Milling head with drill spindle and variable speed adjustment. Perfect for heavy loads.
variable speed, 2 steps
cooling system
halogen machine light
all guide ways hardened
head tiltable 30° in both directions
manual drill spindle
central lubrication system
| Spindle taper | DIN 2080 ISO 50 |
|---|---|
| Speed vertical spindle | 40 - 1800 rpm |
| Motor power vertical | 7,5 kW |
| Longitudinal table travel | X - 800, Y - 400 mm |
| Rapid travel | 1670 mm/min |
| Feed range | XYZ 18 - 627 mm/r |
| T-slots number/dimensions | 3 x 18 x 100 mm |
| Milling head tilt left/right | 30 ° |
| Spindle travel | 105 mm |
| Distance spindle-table | 30 - 580 mm |
| Table size | 1400 x 400 lxw |
| Dimensions machine w x h x d | 2290 x 1770 x 2120 mm |
| Net weight | 3660 kg |
| Voltage | 400 V |

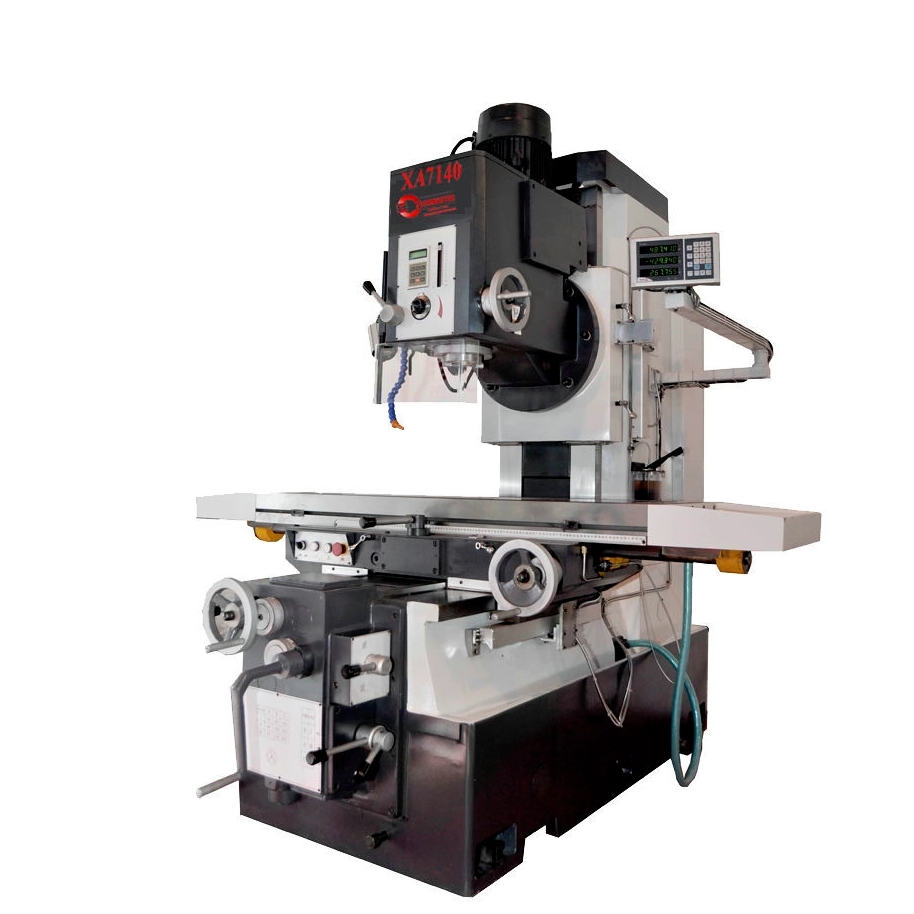

Industrial horizontal milling machine with traverse and rapid traverse in all 3 directions. Milling head with drill spindle and variable speed adjustment. Perfect for heavy loads.
