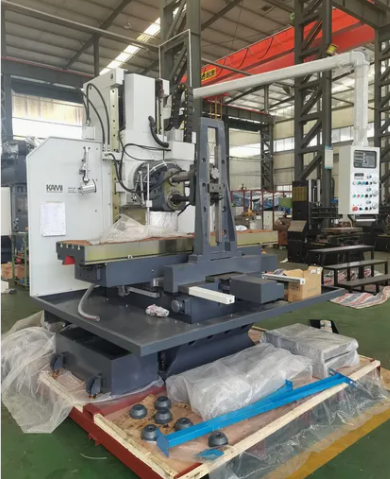

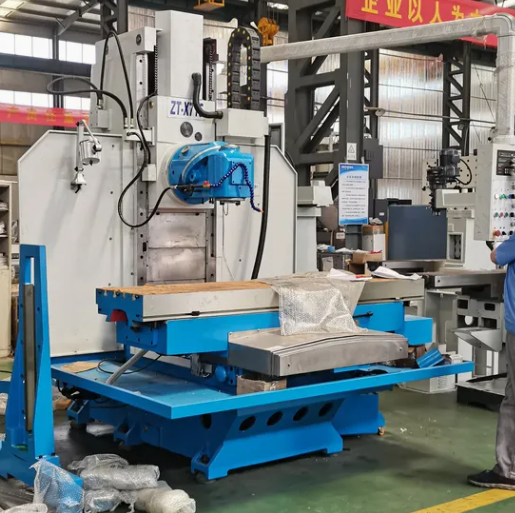

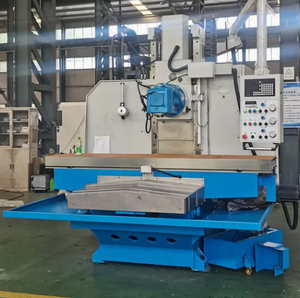

You are here: Home » Products » Milling Machine » Knee-type Milling Machine » Bed-Type Milling Machine ISO50 Big Table Size and Table Load X715,X716

Product Description

Product Description

hot-sale productions cnc convenience and stability bed-type milling machine

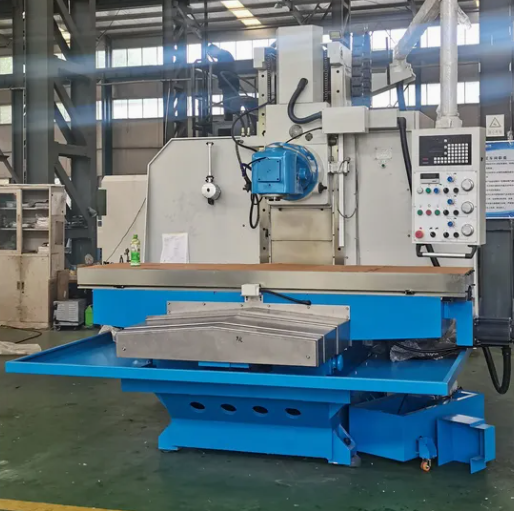

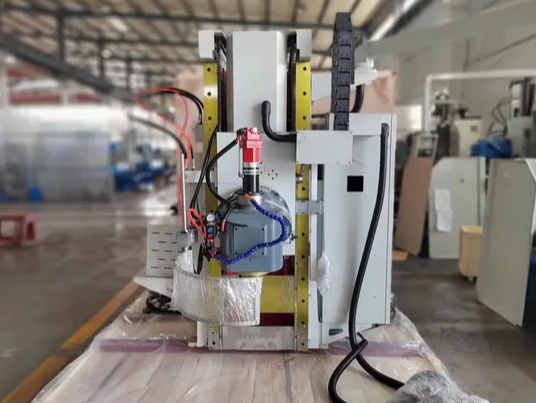

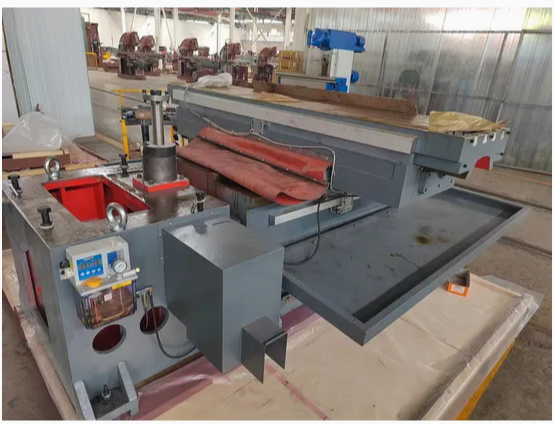

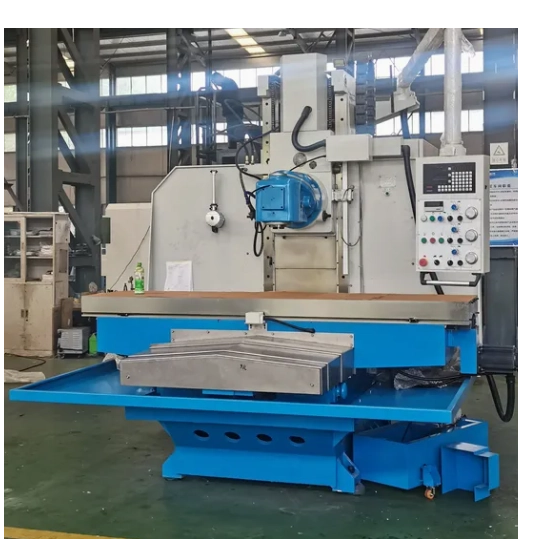

Detailed Photos

√ bed type milling machine

√ high rigidity machine structure for 2000kg heavy load capacity

√ mill head can swivel 360°, ensures vertical & horizontal milling mode

√ stepless spindle speeds in high and low 2 range, for both high-speed-fine-milling and low-speed-powerful-milling

√ brief design control panel, easy to operate

√ equipped with E-handwheels on control panel, ensures 3-axis easy & precise manual feeding

1.Variable spindle speeds in 2 steps
2.Ball screws on X Y and Z axes
3.Servo motors on X Y and z axes

• 2000kg heavy duty, bed-type milling machine
• infinitely variable spindle speeds
• 3-axis ball screws
• 3-axis individual servo motors driven
• equipped with E-handwheels for manual control of table movement
• equipped with automatic electronic lubrication pump
• equipped with coolant system & coolant water tank

Product Parameters

Specifications	Unit	X715	X716
Spindle hole taper	mm	7:24 ISO50	7:24 ISO50
Spindle speed range	r/min	Variable 6-300, 30-1500	Variable 6-300, 30-1500
Distance between spindle axis and column guideway	mm	610	8-660
Distance between spindle nose and table surface(V)	mm	0-650	0-700
Distance between spindle axis and table surface(H)	mm	8-660	8-660
Table size	mm	2100*500	2500*600
T slots	mm	4/20/100	5/20/100
Table travel-X	mm	1500	1800
Table travel-Y	mm	650	700
Table feed-X/Y	mm/min	2.5-3000	2.5-3000
Table feed-Z	mm/min	2.5-2500	2.5-2500
Table rapid feed X/Y/Z	mm/min	6000/6000/3000	6000/6000/3000
Main motor power	Kw	11	11
Torque of X/Y/Z axis AC servo motor	Nm	18/23/18	18/23/18
Cooling pump motor power	w	90	90
Overall size	mm	322024202800	438025202800
weight	kg	7300	9000
