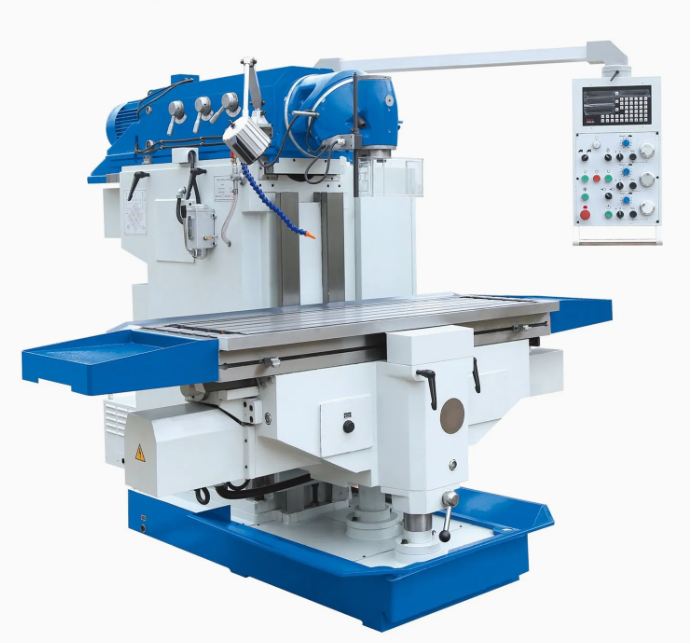

Swivel High Speed X5750 X5750A Vertical Rotary Head Milling Machine Tool with Knee Type
| Quantity: | |
|---|---|
Product Description
Swivel high speed X5750 X5750A vertical rotary head milling machine tool with knee type
1,Table 3 axes with ball screws, high precision
2,Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
3,Mechanical change speeds in head stock, powerful milling
4,Table with an extra supporting column, big load, high accuracy
5,It can mill any angle surface through front half-sphere by swiveling millinghead
Fast delivry .
Welcome your inquiry for detail quotation !!!

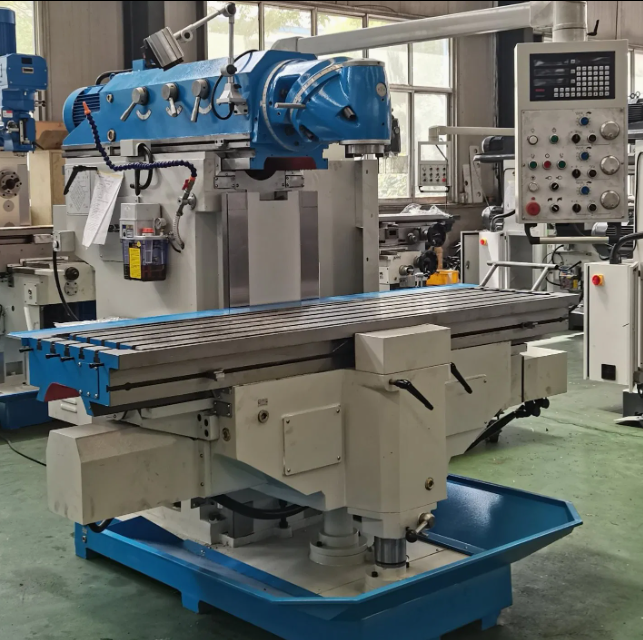

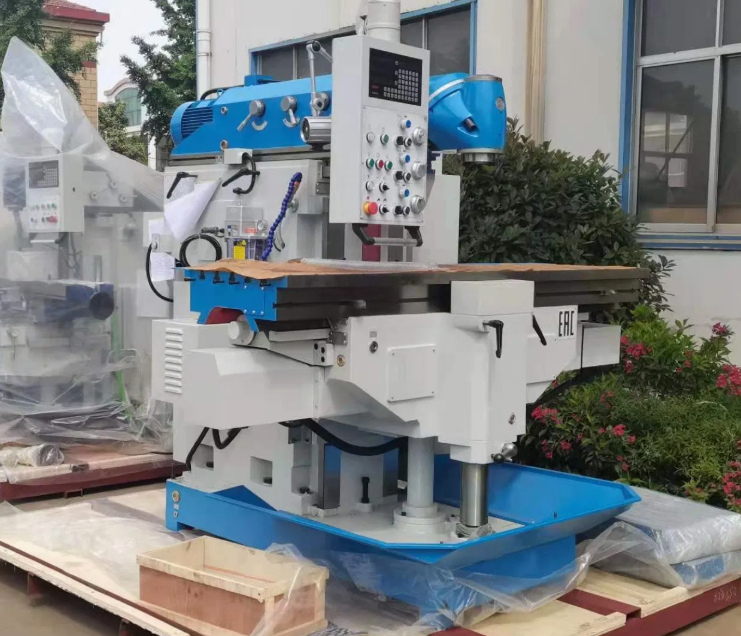

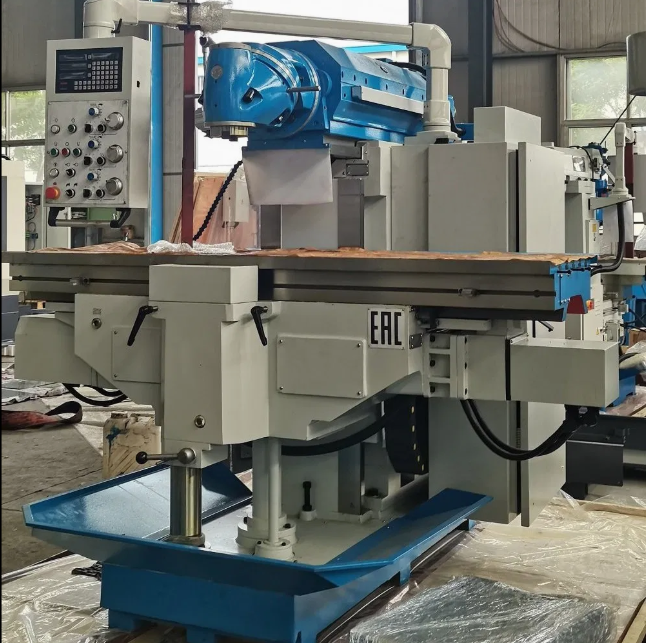

Detailed Photos
Mechanical change speeds head stock universal milling head 360 degree Big Work table 2000/1600*500mm
3 Servo motors +3 ball screws Double supporting column, 1800kg table load Electronic hand wheel+DRO operating box
Product Parameters
| Specifications | Unit | X5746 | X5750 | X5750A |
| Table size | mm | 460*1235 | 500*1600 | 500*2000 |
| T-slots(NO./width/pitch) | mm | 5*18*80 | ||
| Table travel (X/Y/Z) | mm | 900*650*450 | 1200*700*500 | 1400/700/500 |
| Swivel angle of milling head | - | 360° | ||
| Spindle taper | - | ISO40 | ISO50 | |
| Spindle speed range | r.p.m | (27) 30-2050 | ||
| Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/6-640 | 10-1000/10-1000/5-500 | |
| Table rapid speed | 2200/2200/1100 | |||
| Distance between spindle nose and table surface | mm | 58-508 | 50-550 | |
| Distance from spindle center line to column | mm | 20-670 | 28-728 | |
| Main motor power | Kw | 5.5 | 7.5 | |
| Feed motor | Kw | AC servo motor X/Y:18NM; Z: 27NM | ||
| Max load | Kg | 800 | 1800 | |
| Overall size | mm | 2570*2035*1990 | 2625*2460*2080 | 2625*2860*2080 |
| weight | kg | 3600 | 4200 | 4500 |

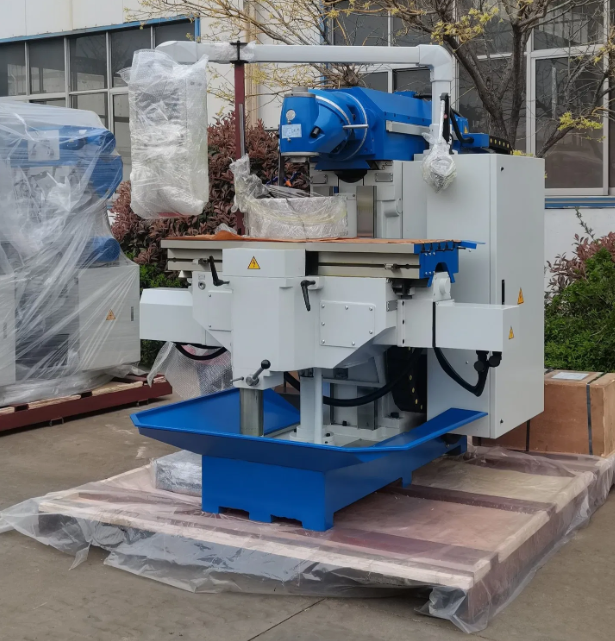

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
