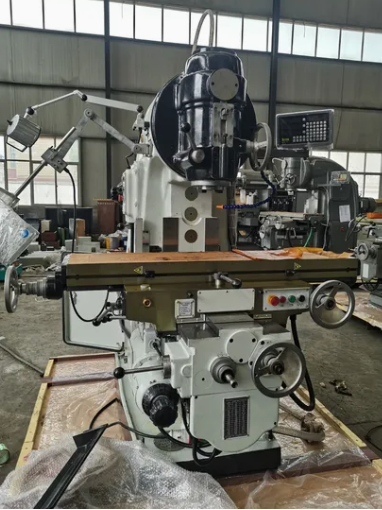

Vertical Milling Machine Used Wiedly Widely Used in All Walks of Life X5040

  • UNIVERSAL MILLING MACHINE X5040

Availability:
Quantity:
Inquire Add to Basket

Product Description

VERTICAL MILLING MACHINE USED WIEDLY Widely used in all walks of life
Vertical Milling Machine Used Wiedly Widely Used in All Walks of Life
Vertical Milling Machine Used Wiedly Widely Used in All Walks of Life

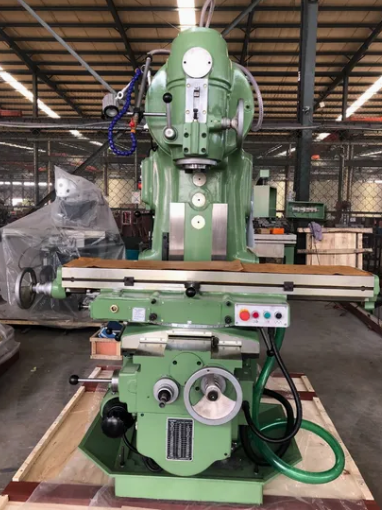

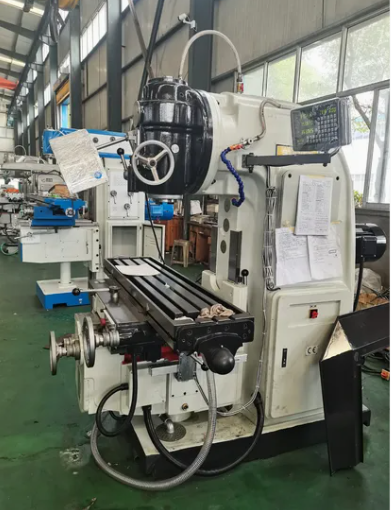

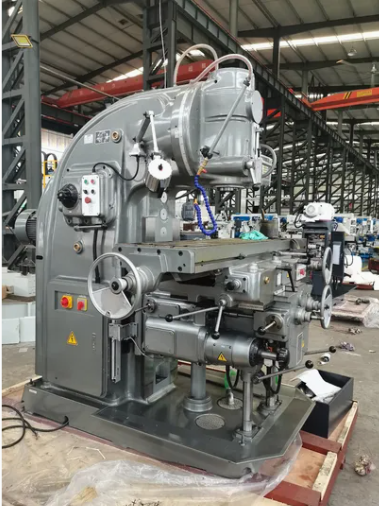

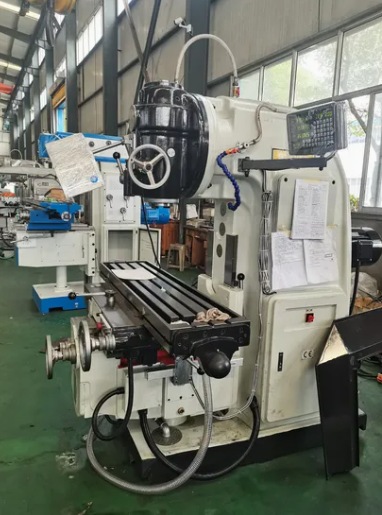

Detailed Photos

Vertical Milling Machine Used Wiedly Widely Used in All Walks of Life
The machine can down milling and up milling.
Table can rapid feed in cross, longitudinal, vertical directions, which can improve work efficiency.

Cross and vertical feed of table is controlled by only one handle.

Main drive parts and bearings are automatically lubricated by oil pump, an indicator is set to check the lubricant conveniently. Hand lubrications are set in obvious positions.
Main driving parts and spindle are mounted through rolling bearing, which can improve drive efficiency.

Adjust the spindle bearing to make sure the precision of spindle.
Vertical Milling Machine Used Wiedly Widely Used in All Walks of Life

Product Parameters

Spedification Units X5040
Table size mm 1700*400
NO.T-slots
3
Width of T-slots mm 18
Max load kg 800
Longitudinal travel mm 900/880
Cross travel mm 315/300
Verttical travel mm 385/365
Rapid feed speed mm/min X:2300
Y:1540
Z:770
Table feed range mm/min 23.5-1180/15-786/8/394
Spindle speed range r/min 30-1500
Spindle speed step steps 18
Stroke of spindle
quill		 mm 85
Max. swivel angle
of milling head
±45°
Distance between
spindle nose and
table surface		 mm 115/500
Power of spindle motor kw 11
Overall dimensions mm 2556*2159*2298
Net weight kg 4250

Certifications




Vertical Milling Machine Used Wiedly Widely Used in All Walks of Life

Packaging & Shipping

Vertical Milling Machine Used Wiedly Widely Used in All Walks of Life

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Machine packed with plywood case and steel pallet.

Vertical Milling Machine Used Wiedly Widely Used in All Walks of Life
Vertical Milling Machine Used Wiedly Widely Used in All Walks of Life
Vertical Milling Machine Used Wiedly Widely Used in All Walks of Life
