Small Noise Craft Exquisite Machine Tool Taiwan Lead Screw and Spindle XL8132,XL8140,XL8145
| Quantity: | |
|---|---|

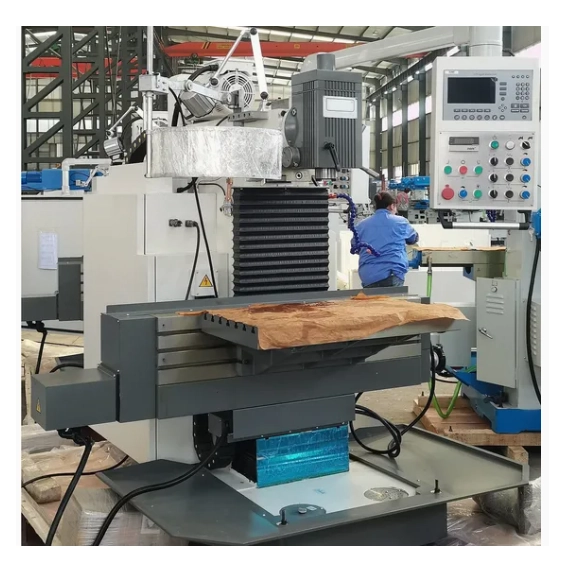

high precision universal metalworking milling machine
| Items | XL8132 | XL8140 | XL8145 |
| Working area | |||
| Worktable size (L×W) | 750x320mm | 800x400mm | 850x450mm |
| T slot (Width x No. x pitch) | 14x5x63mm | 14x6x63mm | 14x7x63mm |
| Vertical table size | 890x225mm | 1020x225mm | 1190x250mm |
| T slot (Width x No. x pitch) Vertical table | 14x3x63mm | ||
| Max. load of table | 160kg | 200kg | 300kg |
| Torque of feed motor (X) | 7.7Nm | 7.7Nm | 10Nm |
| Torque of feed motor (Y) | 7.7Nm | 7.7Nm | 10Nm |
| Torque of feed motor (Z) | 10Nm | 10Nm | 15Nm |
| Spindle axis-to-table surface distance(Horizontal) | 145-545mm | 145-545mm | 170-620mm |
| Spindle nose-to-table surface distance(Vertical) | 50-450mm | 50-450mm | 75-525mm |
| Travels | |||
| Longitudinal travel (X) | 405mm | 500mm | 600mm |
| Transverse travel (Y) | 305mm | 400mm | 450mm |
| Vertical travel (Z) | 400mm | 400mm | 450mm |
| Feeds of X Y Z axis | 10-1000mm/min | ||
| Rapid feed | 1200mm/min | ||
| Spindle | |||
| Spindle speed (V&H) | 2 steps; 40-260rpm, 260-2000rpm | ||
| Spindle taper (V&H) | NT40 | ||
| Vertical quill travel | 60mm | ||
| Main motor power | 3.7kW | 3.7kW | 5.5kW |
| Others | |||
| Machine size (L×W×H) | 1500x1700x1800mm | 1500x1700x1800mm | 1600x1800x2000mm |
| Net weight | 1450 kg | 1550 kg | 1750 kg |
