Conventional Milling Machines XL6432CL Universal Swivel Head Milling Machine
| Quantity: | |
|---|---|
Product Description
Conventional milling machines XL6432CLW Universal swivel head milling machine
1.Finely graduated feeds in all axis, driven by servo motor, it is a patent product in our company.
2.Complete with rapid feed in x-, y- and z-axis to reduce downtime
3.Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance
Fast delivery , welcome your inquiry!!!

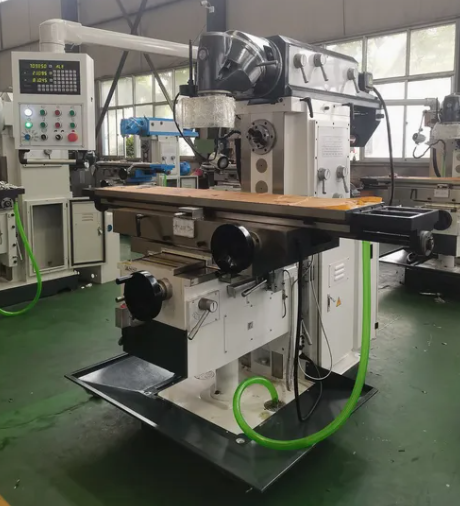

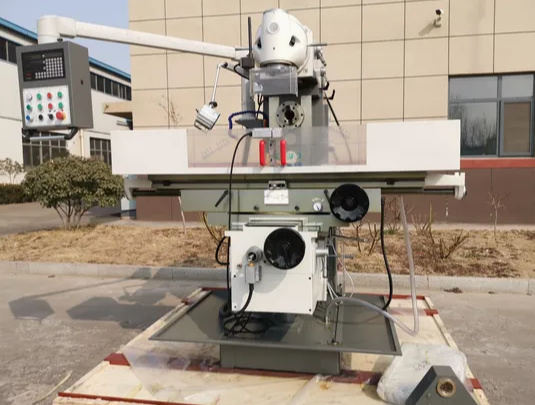

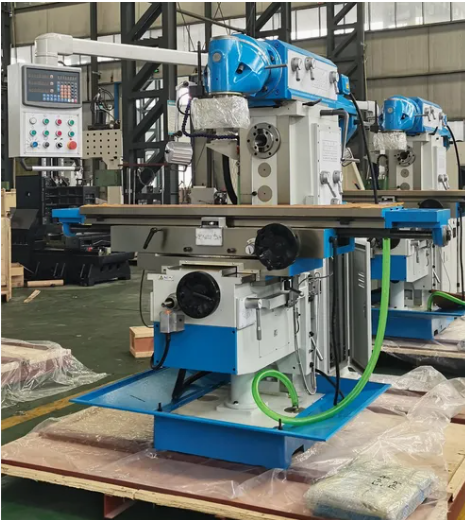

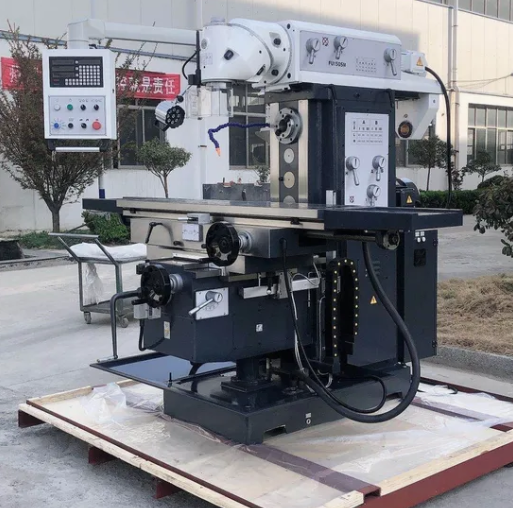

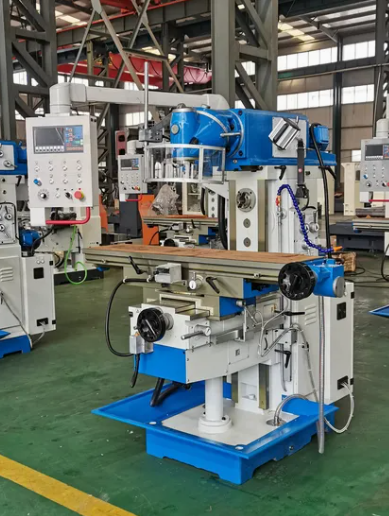

Detailed Photos
The machines have a wide application for single-piece or small batch production in manufacturing, instruments, construction, maintenance and repair workshops and so like industries.
Featuring optimum structure, easy operation and less maintenance, the machine can also be equipped with DRO system for higher positioning and efficiency in batch production.
Product Parameters
| Specifications | Unit | XL6432 | XL6432C | XL6432CL |
| Table size | mm | 1325×360 | 1600×360 | |
| Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
| Table feed(X/Y/Z) | mm/min | 30~750/20~500/15~375 | ||
| Spindle taper | 7:24 IS050 (H) 7:24 IS050 (V) | |||
| Arm travel | mm | 550 | ||
| Distance between spindle nose and table surface | mm | 196-656 | 196-646 | |
| Distance between horizontal nose and table surface | mm | 20-480 | 20-470 | |
| Distance between spindle axis and arm surface | mm | 200 | ||
| Spindle speed range | r.p.m | 12 steps 60-1750 (V) 12 steps 60-1800 (H) | ||
| T-slots(NO./width/pitch) | mm | 3/18/80 | ||
| Main motor power | Kw | 5.5 (H) 4 (V) | ||
| 3 to feed Ac servo motor torque | N.m | 15 | ||
| Overall size | mm | 1800×2100×2000 | 2245×2100×2000 | 2520×2100×2000 |
| Net weight | kg | 2685 | 2750 | 2800 |
Certifications
