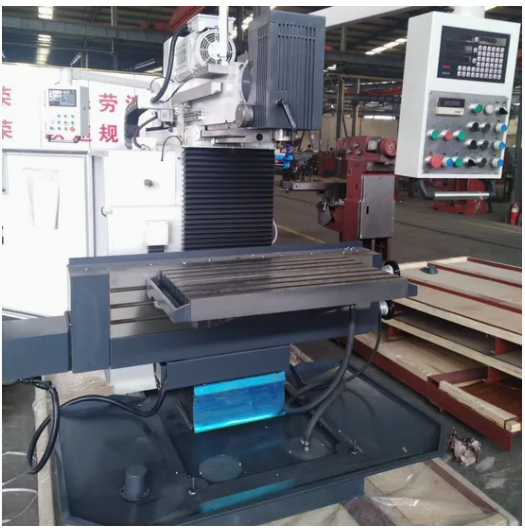

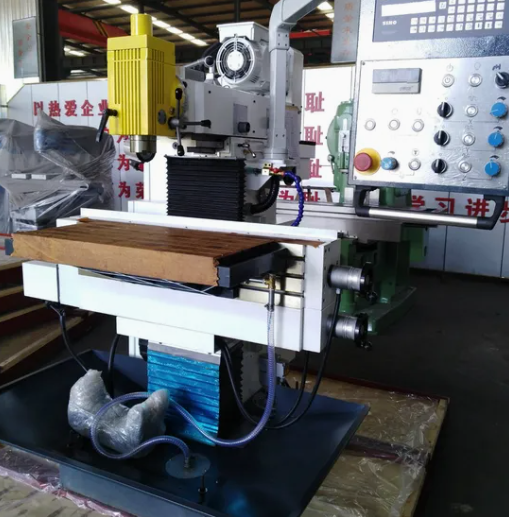

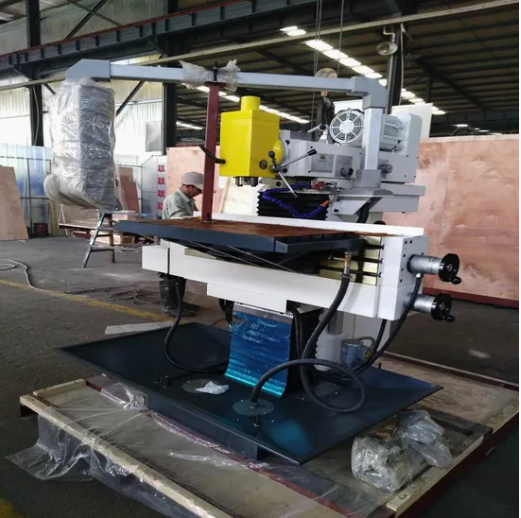

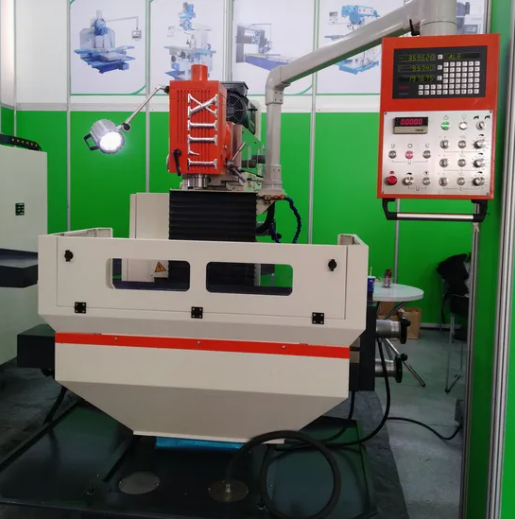

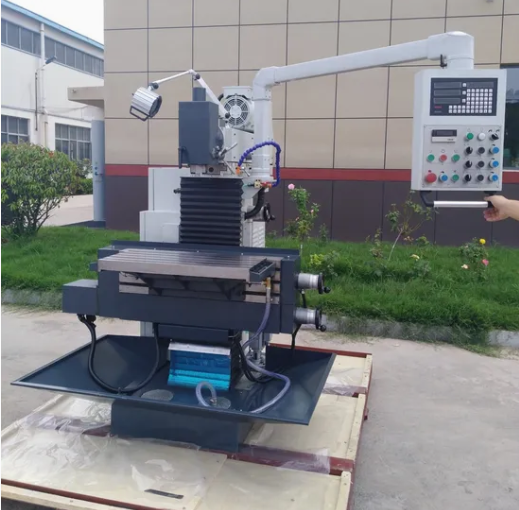

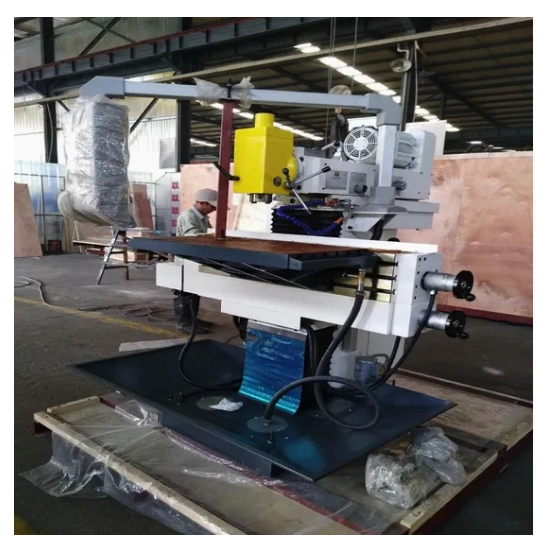

High Speed High Precision CE Metal Cutting Education Universal Tool Milling Machine XL8132 XL8142 ,XL 8145
| Quantity: | |
|---|---|
Δ Spindle:
√ step-less spindle speed, in high & low speed ranges, suitable for high-speed-fine-machining & low-speed-powerful-machining
√ vertical & horizontal spindles combined, for flexible operation
√ 60mm spindle stroke, milling and drilling functions are available
Δ Working feed:
√ X/Y/Z-axis ball screws, good precision
√ X/Y/Z-axis driven by 3 independent servo motors, can realize X/Y/Z-axis synchronous feeding
√ servo motors for spindle and feeding, machine with low noise, good precision, easy to maintenance
√ X/Y/Z-axis with electronic handwheels, for easy and precise manual-feeding
√ vertical & horizontal combined work-tables, for flexible clamping of workpiece
√ fitted with automatic centralized lubrication system, for automatic timing lubrication
Features of universal tool milling machine
1.Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds
2.Infinitely variable vertical cutting head with a swivel ±90°and the spindle controlled by variable frequency motor.
3.Electronic handwheel adopted on X Y Z 3-axis ,easy operating
4.Automatic oil lubrication, cooling system,Chip collector tray,CE Schneider Electric are standard.
This machine is designed to be a middle-sized Universal Tool Milling Machine, can perform procedures such as milling, boring, drilling, and slotting, etc, and is suitable for machining cutter, fixture, die and mould, and other components with complex figuration. With the aid of various special attachments, it can machine all kinds of components such as spiral, arc, gear, rack, spline, and so on.
This universal tool milling machine is a versatile machine,extensively used for metal cutting manufacturer in different mechanical industries. It is particularly suitable for half-finished and precision-machined manufacturing of machine parts,which has complicated shapes. It has a great advantage for manufacturing middle and small parts to use this machine tool.
| Items | XL8132 | XL8140 | XL8145 |
| Working area | |||
| Worktable size (L×W) | 750x320mm | 800x400mm | 850x450mm |
| T slot (Width x No. x pitch) | 14x5x63mm | 14x6x63mm | 14x7x63mm |
| Vertical table size | 890x225mm | 1020x225mm | 1190x250mm |
| T slot (Width x No. x pitch) Vertical table | 14x3x63mm | ||
| Max. load of table | 160kg | 200kg | 300kg |
| Torque of feed motor (X) | 7.7Nm | 7.7Nm | 10Nm |
| Torque of feed motor (Y) | 7.7Nm | 7.7Nm | 10Nm |
| Torque of feed motor (Z) | 10Nm | 10Nm | 15Nm |
| Spindle axis-to-table surface distance(Horizontal) | 145-545mm | 145-545mm | 170-620mm |
| Spindle nose-to-table surface distance(Vertical) | 50-450mm | 50-450mm | 75-525mm |
| Travels | |||
| Longitudinal travel (X) | 405mm | 500mm | 600mm |
| Transverse travel (Y) | 305mm | 400mm | 450mm |
| Vertical travel (Z) | 400mm | 400mm | 450mm |
| Feeds of X Y Z axis | 10-1000mm/min | ||
| Rapid feed | 1200mm/min | ||
| Spindle | |||
| Spindle speed (V&H) | 2 steps; 40-260rpm, 260-2000rpm | ||
| Spindle taper (V&H) | NT40 | ||
| Vertical quill travel | 60mm | ||
| Main motor power | 3.7kW | 3.7kW | 5.5kW |
| Others | |||
| Machine size (L×W×H) | 1500x1700x1800mm | 1500x1700x1800mm | 1600x1800x2000mm |
| Net weight | 1450 kg | 1550 kg | 1750 kg |
Delivery time: generally 30-60 days production time after confirmation of order
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Packing size: 2100 x 1900 x 2250mm (L / W / H), can be delivered in 20GP container.
