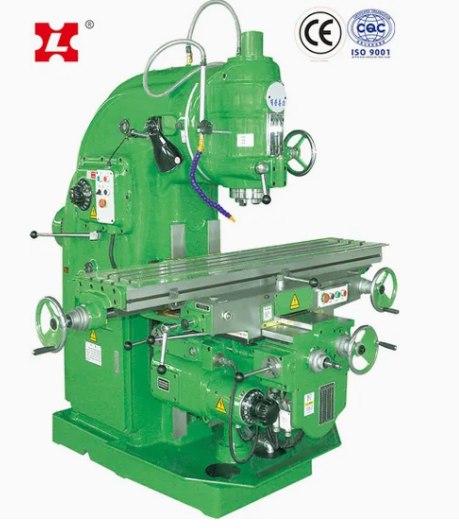

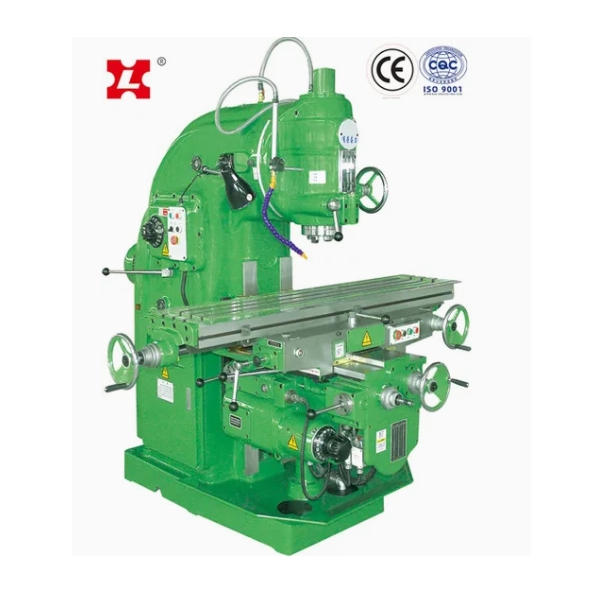

Vertical Milling Machine XL 5036

  • Vertical Milling Machine XL 5036

Availability:
Quantity:
Inquire Add to Basket



Product Description

vertical milling machine XL 5036 applied to heavy cut
Vertical Milling Machine XL 5036 Applied to Heavy Cut
Vertical Milling Machine XL 5036 Applied to Heavy Cut

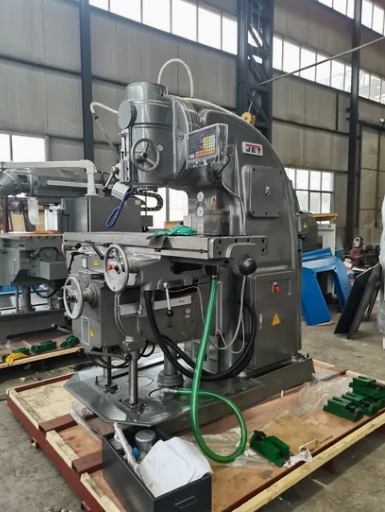

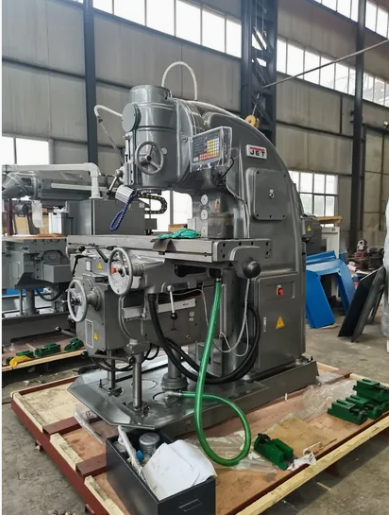

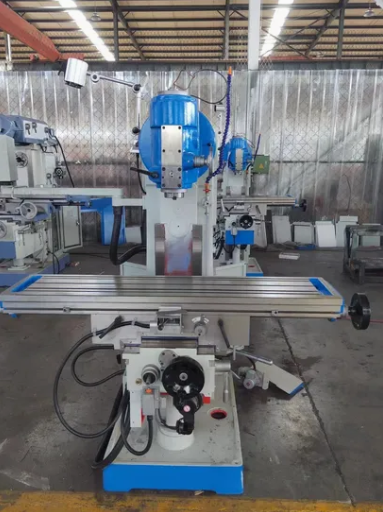

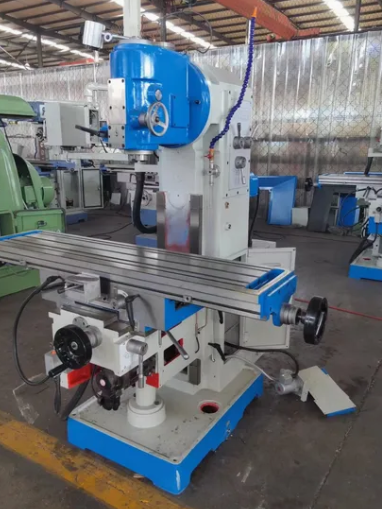

Detailed Photos

Vertical Milling Machine XL 5036 Applied to Heavy Cut
The machine can down milling and up milling.
Table can rapid feed in cross, longitudinal, vertical directions, which can improve work efficiency.

Cross and vertical feed of table is controlled by only one handle.

Main drive parts and bearings are automatically lubricated by oil pump, an indicator is set to check the lubricant conveniently. Hand lubrications are set in obvious positions.
Main driving parts and spindle are mounted through rolling bearing, which can improve drive efficiency.

Adjust the spindle bearing to make sure the precision of spindle.
Vertical Milling Machine XL 5036 Applied to Heavy Cut

Product Parameters

Spedification Units X5040
Table size mm 1700*400
NO.T-slots
3
Width of T-slots mm 18
Max load kg 800
Longitudinal travel mm 900/880
Cross travel mm 315/300
Verttical travel mm 385/365
Rapid feed speed mm/min X:2300
Y:1540
Z:770
Table feed range mm/min 23.5-1180/15-786/8/394
Spindle speed range r/min 30-1500
Spindle speed step steps 18
Stroke of spindle
quill		 mm 85
Max. swivel angle
of milling head
±45°
Distance between
spindle nose and
table surface		 mm 115/500
Power of spindle motor kw 11
Overall dimensions mm 2556*2159*2298
Net weight kg 4250

Certifications




Vertical Milling Machine XL 5036 Applied to Heavy Cut

Packaging & Shipping

Vertical Milling Machine XL 5036 Applied to Heavy Cut

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Machine packed with plywood case and steel pallet.
Vertical Milling Machine XL 5036 Applied to Heavy Cut
Vertical Milling Machine XL 5036 Applied to Heavy Cut
Vertical Milling Machine XL 5036 Applied to Heavy Cut
Previous:
Next:
Leave Messages

Related Products

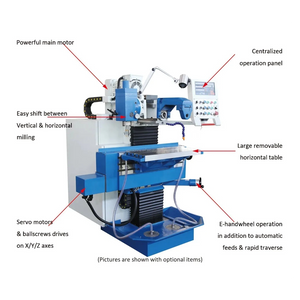

Customizable Universal Tool Milling Machine XL8132;XL8140;XL8145
Customizable Universal Tool Milling Machine XL8132;XL8140;XL8145

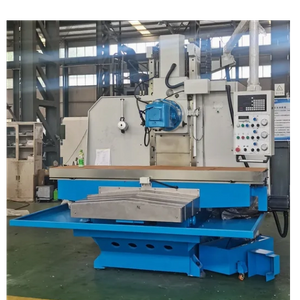

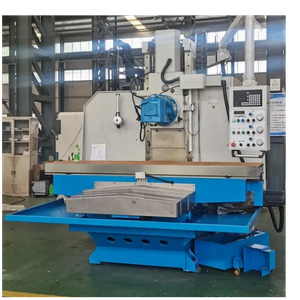

Bed-Type Milling Machine ISO50 Big Table Size and Table Load X715,X716
Bed-Type Milling Machine ISO50 Big Table Size and Table Load X715,X716

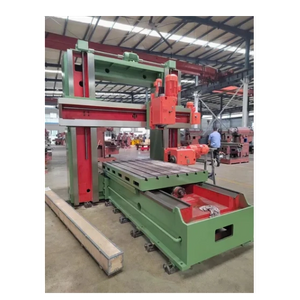

Plain Type Milling Machine X2010

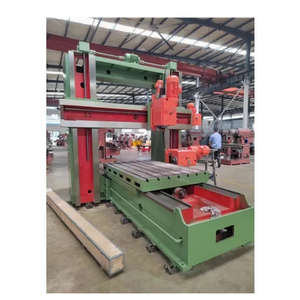

Plain Type Milling Machine X2010*2m Conventional Gantry Machine
Bed-Type Milling Machine ISO50 Big Table Size and Table Load X715,X716
Bed-Type Milling Machine ISO50 Big Table Size and Table Load X715,X716

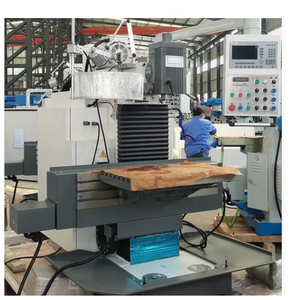

Small Noise Craft Exquisite Machine Tool Taiwan Lead Screw and Spindle XL8132,XL8140,XL8145
Small Noise Craft Exquisite Machine Tool Taiwan Lead Screw and Spindle XL8132,XL8140,XL8145
Milled in All Directions at Any Angle for Metalworking X5746,X5750,X5750A
Milled in All Directions at Any Angle for Metalworking X5746,X5750,X5750A

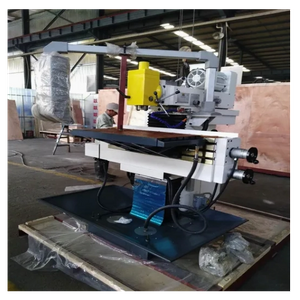

High Speed High Precision CE Metal Cutting Education Universal Tool Milling Machine XL8132 XL8142 ,XL 8145
High Speed High Precision CE Metal Cutting Education Universal Tool Milling Machine XL8132 XL8142 ,XL 8145

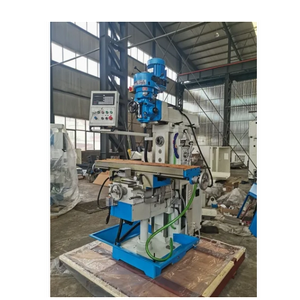

Large Table Fresadora Torreta with CE and ISO9001 Certification XL6336,XL6336C, XL6336CL
Large Table Fresadora Torreta with CE and ISO9001 Certification XL6336,XL6336C, XL6336CL

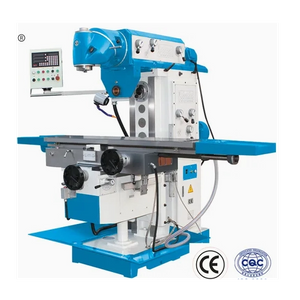

RAM Milling Machine Table 3 Axes Are Controlled by One Servo Motor XL6230
RAM Milling Machine Table 3 Axes Are Controlled by One Servo Motor XL6230
Bed-Type Milling Machine ISO50 Big Table Size and Table Load X715,X716
Bed-Type Milling Machine ISO50 Big Table Size and Table Load X715,X716
Small Noise Craft Exquisite Machine Tool Taiwan Lead Screw and Spindle XL8132,XL8140,XL8145
Small Noise Craft Exquisite Machine Tool Taiwan Lead Screw and Spindle XL8132,XL8140,XL8145

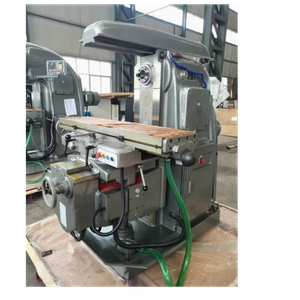

X6140 /X6132 Universal Milling Machine ISO 40 CE and ISO9001 Certificate
