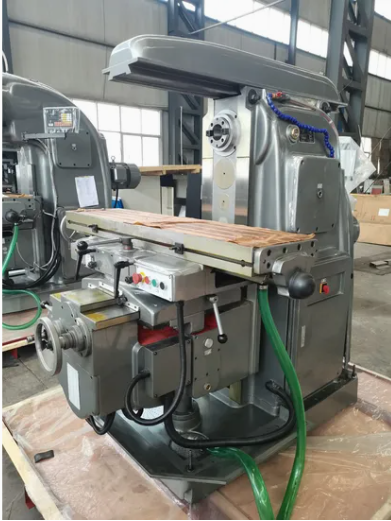

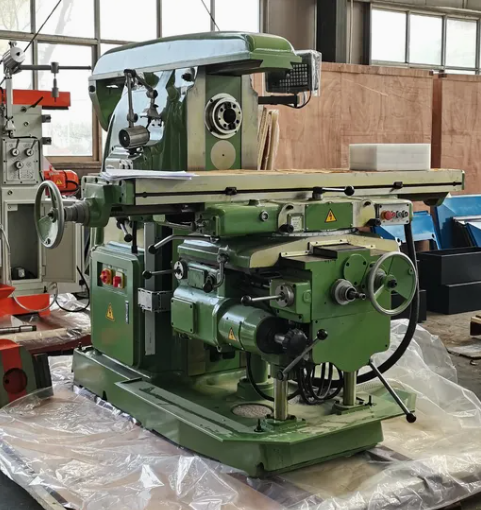

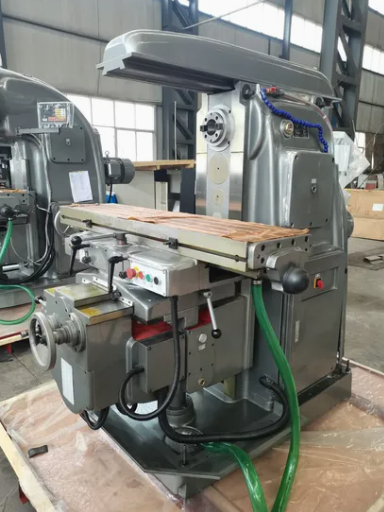

X6140/X6132 Universal Milling Machine ISO 40 CE and ISO9001 Certificate
| Quantity: | |
|---|---|
Product Description
√ conventional horizontal knee type milling machine
√ gearbox directly driven spindle for powerful milling
√ 18 steps, 30-1500rpm wide range spindle speed, ensures good torque when operating
√ mechanical driven work-table with high rigidity
√ work-table swivel ±45° (left and right), enlarge the processing range
√ high rigidity machine structure ensures 800kg (X6140), 500kg (X6132) heavy load capacity
√ control buttons are located both in front and at side of machine body, convenient to operate
Product Parameters
| Specification | Unit | X6140 | X6132 |
| Table size | mm | 1700X400 | 1325X320 |
| T-slots(NO./Width/Pitch) | 3/18/90 | 3/18/70 | |
| X axis travel(manual/auto) | mm | 900/880 | 700/680 |
| Y axis travel(manual/auto) | mm | 315/300 | 255/240 |
| Z axis travel(manual/auto) | mm | 350/330 | 320/300 |
| Rapid feed speed | mm/min | 2300/2300/770 | |
| Table feed speed-X/Y | mm/min | 23.5-1180 | |
| Table feed speed-Z | mm/min | 8-394 | |
| Max load | kg | 800 | 500 |
| Spindle taper | 7:24 ISO50 | ||
| Spindle speed range | r/min | 30~1500 | |
| Spindle speed step | steps | 18 steps | |
| Max.swivel angle of table | ±45° | ||
| Spindle axis to table distance | mm | 30-380 | 30-350 |
| Main motor Power | kw | 11 | 7.5 |
| Overall dimensions | mm | 2556×2159×1770 | 2294X1770X1610 |
| Net weight | kg | 3850 | 2650 |
Standard Configuration
| . | Item | Specification |
| 1 | lubrication system | - |
| 2 | water cooling system with spray nozzle | - |
| 3 | work lamp | - |
| 4 | draw bar | - |
| 5 | milling chuck set | ISO50 (or ISO40) |
| 6 | reducer sleeve | ISO50-Φ40 (or ISO40-Φ32) |
| 7 | tools & metallic tool box | - |
Optional Configuration
Certifications
Packaging & Shipping
Company Other Products
Company has mainly 12 series products include hundreds of models:
CNC gantry type machining center,
VMC machining center,
Simple NC milling machine,
conventional Vertical milling machine,
conventional Horizontal milling machine,
conventional Universal swivel head milling machine,
conventional Sliding ram milling machine,
conventional Bed type milling machine,
conventional Tool milling machine,
conventional Gantry milling machine etc.
