Product Description

Product Description

Ordinary gantry type large table high quality milling machine

Xili Machining Tool CE ISO 9001 Certificate Plain Type Milling Machine

Product Parameters

Specification		Unit	X2010	X2012	X2014
Max.outline	Length	mm	2000/3000/4000
	width	mm	1300	1400	1800
	width	mm	1000	1000/1200
Distance between columns		mm	1440	1600	1920
Table zise	Length		2000/3000/4000
	width		1000	1250
Table feeding speed	Feed		20-360	25-450
	Rapid travel		1050	1300
Spindle taper			7:24 ISO50
Spindle speed step		r/min	82-505
Swivel angle of milling head			±35°
Along the cross rail		mm	65/320/890
Side milling head		mm	50/265/730
Power of spindle motor		kw	7.5
Power of table motor		kw	4/5.5/7.5	5.5/7.5
overall size	Length	mm	4550/7000/9000	5000/7000/9000
	width	mm	3200	3550
	Height	mm	2550	2950/3150

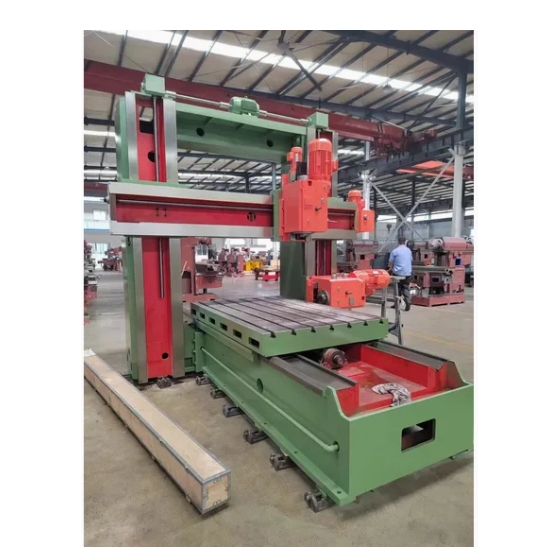

Detailed Photos

Xili Machining Tool CE ISO 9001 Certificate Plain Type Milling Machine

√ gear driven milling head with 7.5kw spindle motor, ensures powerful milling

√ 6 steps spindle speed from 82rpm to 505rpm, for good torque when processing

√ 35° left and right swivel head, with 350mm spindle stroke

√ rectangular and V type guideway design, high rigidity & low friction, 2000kg load capacity

√ scientific design of electrical circult cabinet for easy maintenance

√ brief designed control panel is easy to operate

Certifications

Packaging & Shipping

Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)

Delivery type: no need to dismantle machine, can be loaded into 40HQ container

Delivery time: generally 60 days production time after the confirmation of order
