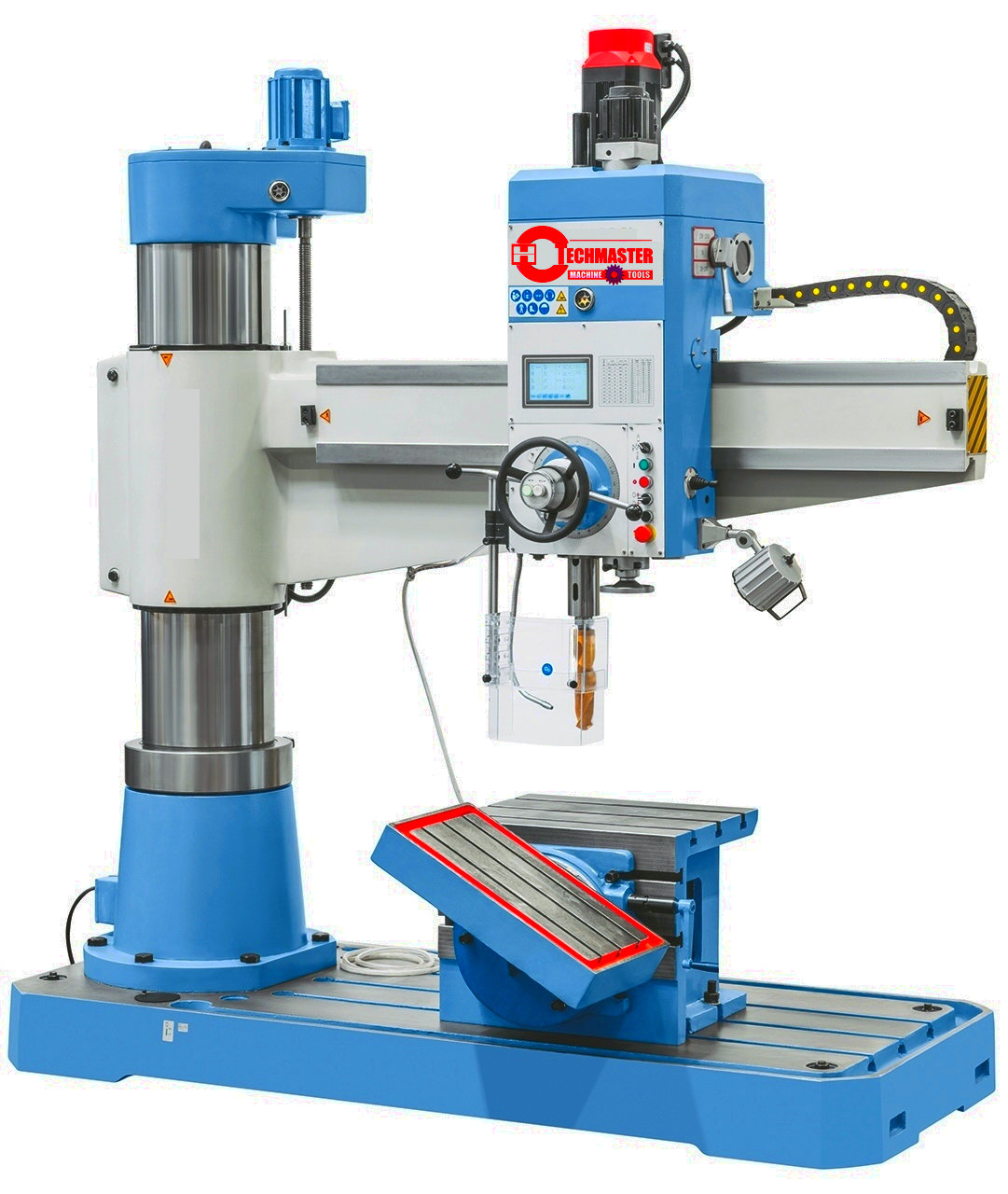

CNC RADIAL DRILLING MACHINE ZK3050X16
| Quantity: | |
|---|---|
The radial drilling machine Servo is a clearly arranged machine with high performance and easy to use. This model is ideal for complex tasks such as drilling, countersinking, reaming and thread cutting. The special features of this model are the operation via a large touchscreen as well as servo motors for drive and spindle feed.
PRODUCT PROPERTIES
The standard control calculates the ideal speed or feed rate for drilling and thread cutting after entering the tool diameter and material (cast iron / steel)
Large touchscreen for all adjustment work and functions (e.g. drilling, deep hole drilling, thread cutting, etc.)
The spindle drive and the quill feed are carried out by high-quality servo motors
Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations
Electronically adjustable drill depth including checking of the input value
Complete with stepless speed, set speed is visible on digital display
Display of the measurements either mm or inch
Guiderails on radial arm are hardened and polished
Ideal for drilling, countersinking, reaming and tapping
PRODUCT SPECIFICATIONS
Drilling capacity max.50 mm
Thread cutting max.M45
Distance spindle to column min./max.350 - 1600 mm
Vertical movement of the support 580 mm
Travel of drill head (horizontally) 1250 mm
Spindle stroke 320 mm
Morse taper MK 5
Spindle speeds 20 - 200 / 200 - 2000 rpm
Feed range 0 - 795 mm/min
Distance spindle to box table 155 - 735 mm
Distance spindle to base 655 - 1230 mm mm
Clamping area base 1750 x 980 mm
Box table (L x W x H) 635 x 500 x 500 mm
Motor power 3,7 kW
Machine dimension (W x D x H) 2550 x 1100 x 2600 mm
Weight approx. 3225 kg
Standard Accessories
Box table
Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2
LED working light
Initial filling with Shell Tellus 46
Coolant device
Touchscreen
Servomotor for spindle feed
Lifting motor
Hydraulic motor
Height adjustable protective cover
Energy chain
