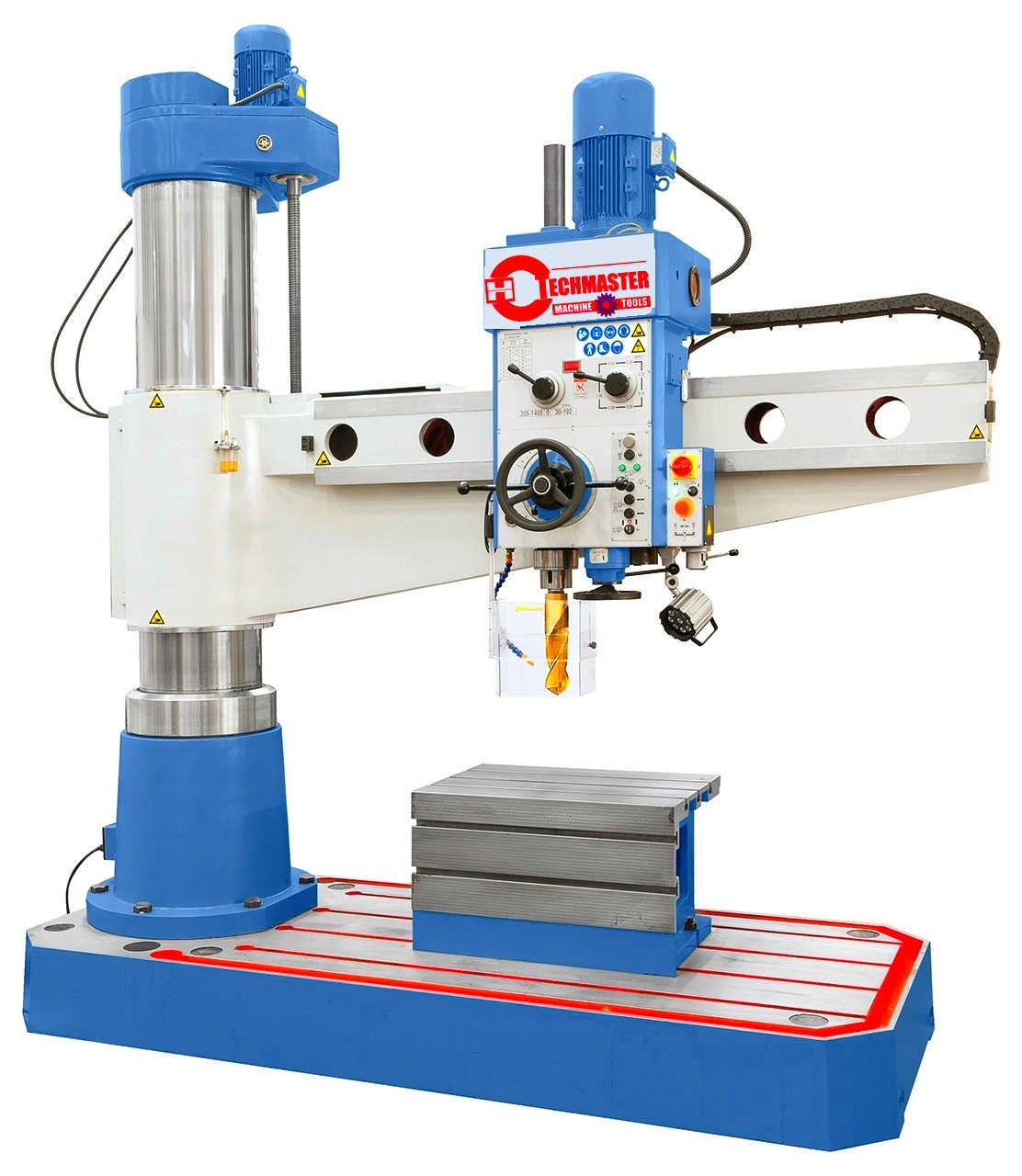

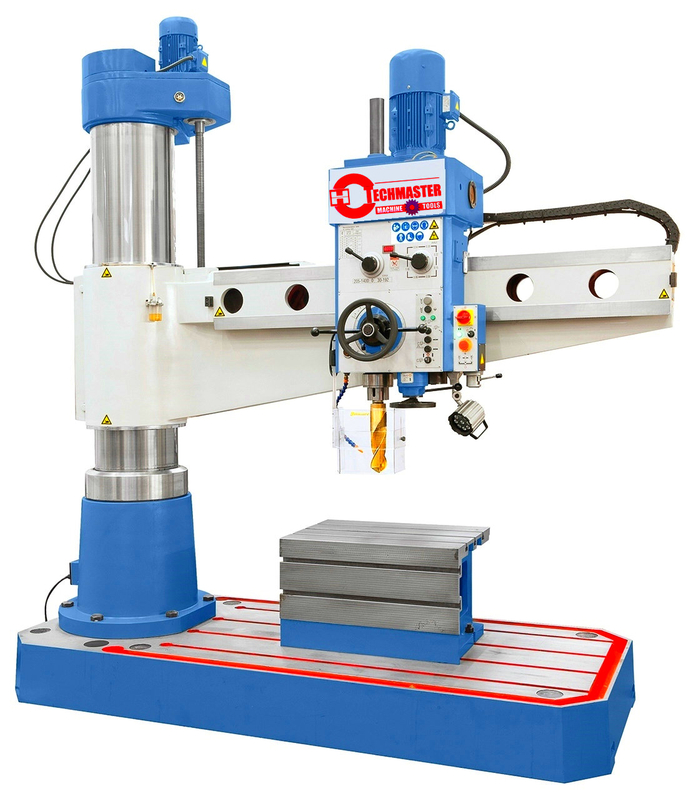

VARIO RADIAL DRILLING MACHINE Z3080Vx25

PRODUCT PROPERTIES

Complete with stepless speed, set speed is visible on digital display

Spindle features high concentricity and automatic spindle brake

Radial arm, drill head and column each with hydraulic clamp

Large base plate, ideal for processing of oversize workpieces

Torsion-free, polished column increases sliding capacity of radial arm

Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations

Control switch allows for individual clamping or unclamping of drill head and/or column

Guiderails on radial arm are hardened and polished

Counter weight on spindle to ensure optimal balance

Ideal for drilling, countersinking, reaming and tapping

PRODUCT SPECIFICATIONS

Drilling capacity max. 80 mm

Thread cutting max. M60

Distance spindle to column min./max. 450 - 2550 mm

Vertical movement of the support 820 mm

Travel of drill head (horizontally) 2100 mm

Spindle stroke 400 mm

Morse taper MT 6

Spindle speeds 30 - 220, 200 - 1400 rpm

Feed range (8) 0,06 - 1,38 mm/rev.

Distance spindle to box table 300 - 1120 mm

Distance spindle to base 800 - 1620 mm

Clamping area base 2500 x 1250 mm

Box table (L x W x H) 850 x 580 x 500 mm

Motor power 7,5 kW

Machine dimension (W x D x H) 3590 x 1250 x 3530 mm

Weight approx. 7400 kg

Standard  Accessories

Box table

Drill chuck arbor MT 5 / B 16

Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2

LED machine light

Initial filling with Shell Tellus 46

Coolant device

Frequency inverter

Digital readout of speeds

Lifting motor

Hydraulic motor

Height adjustable protective cover

Tools
