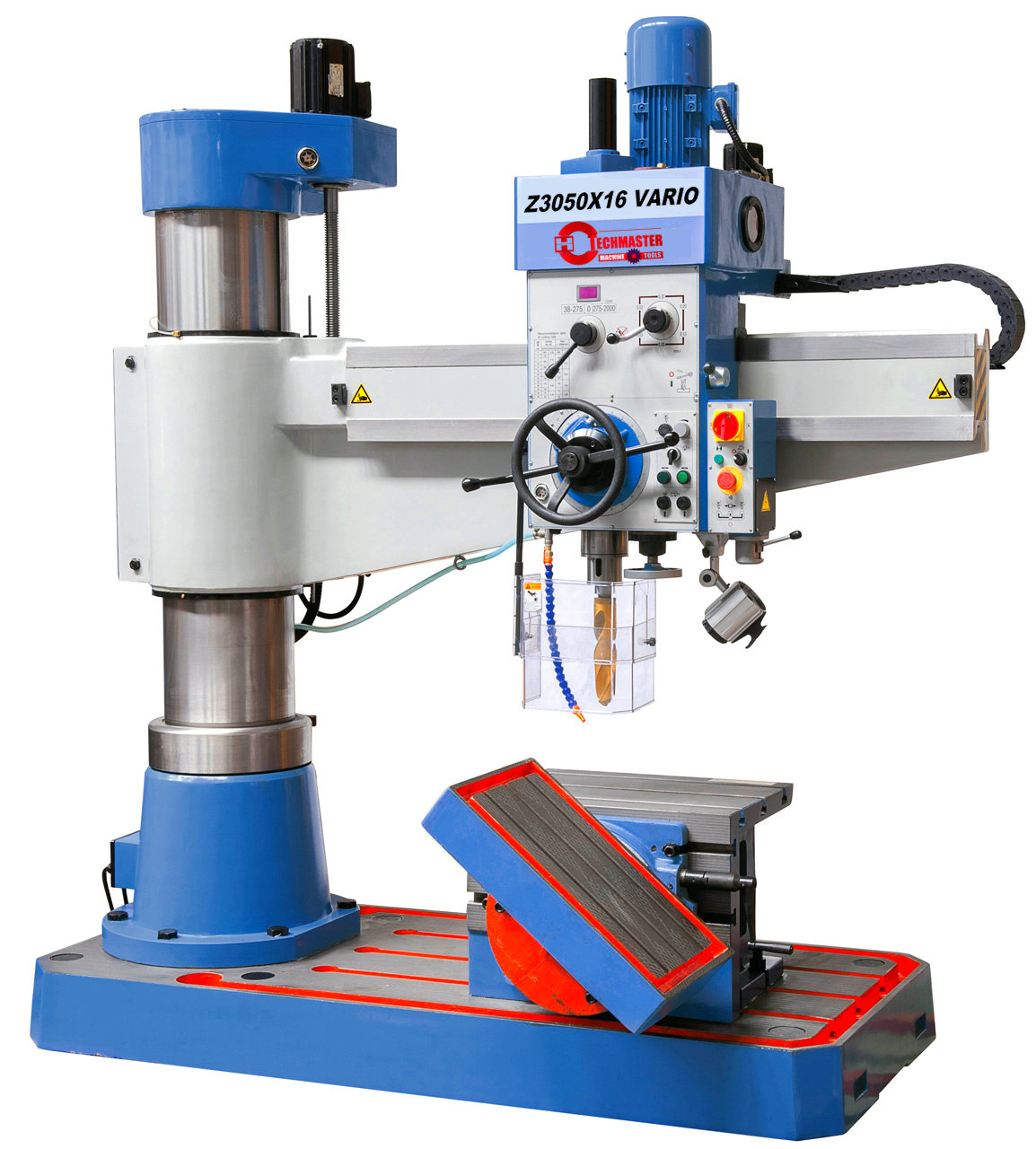

VARIO RADIAL DRILLING MACHINE Z3060Vx16

PRODUCT PROPERTIES

Complete with stepless speed, set speed is visible on digital display

Spindle features high concentricity and automatic spindle brake

Radial arm, drill head and column each with hydraulic clamp

Large base plate, ideal for processing of oversize workpieces

Torsion-free, polished column increases sliding capacity of radial arm

Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations

Control switch allows for individual clamping or unclamping of drill head and/or column

Guiderails on radial arm are hardened and polished

Counter weight on spindle to ensure optimal balance

Ideal for drilling, countersinking, reaming and tapping

PRODUCT SPECIFICATIONS

Drilling capacity max.60 mm

Thread cutting max. M45

Distance spindle to column min./max. 350 – 1600 mm

Vertical movement of the support 585 mm

Travel of drill head (horizontally)1250 mm

Spindle stroke 325 mm

Morse taper MT 5

Spindle speeds 38 – 275, 275 - 2000 rpm

Feed range (8) 0,06 – 1,00 mm/rev.

Distance spindle to box table 165 – 750 mm

Distance spindle to base 665 – 1250 mm

Clamping area base 1740 x 980 mm

Box table (L x W x H) 750 x 500 x 500 mm

Motor power 4,0 kW

Machine dimension (W x D x H) 2600 x 1100 x 2770 mm

Weight approx. 3800 kg

Standrad Accessories

Box table

Drill chuck arbor MT 5 / B 16

Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2

LED machine light

Initial filling with Shell Tellus 46

Coolant device

Frequency inverter

Digital readout of speeds

Lifting motor

Hydraulic motor

Height adjustable protective cover

Tools
