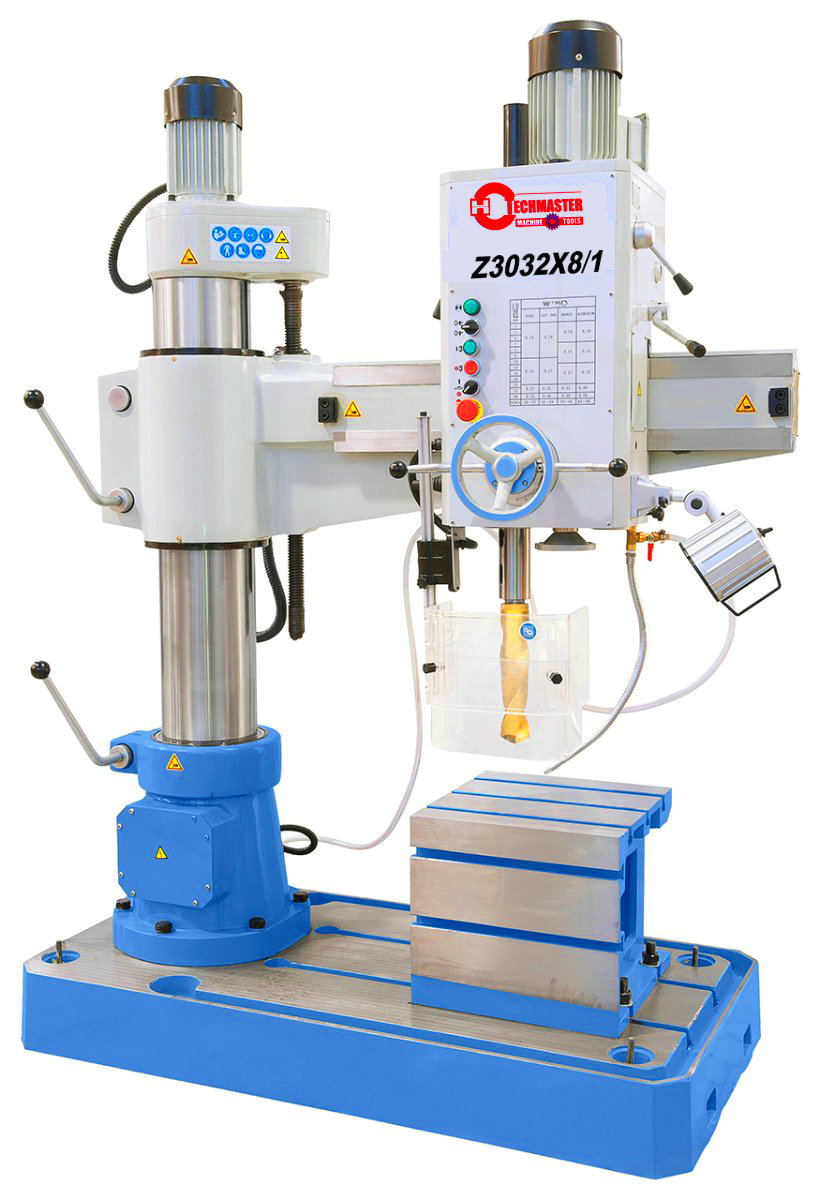

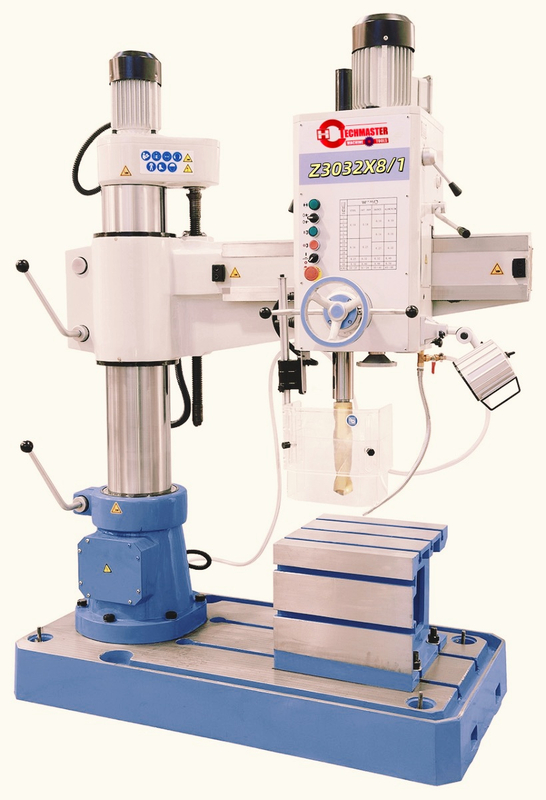

PRODUCT PROPERTIES
Mechanical adjustment of the tilting movement of the support and the adjustment of the headstock
Smooth surface of column guarantees easy movement of arm
Solid construction allows smooth running
Easy adjustment to clamped workpiece
User-friendly control elements on front of machine
Electric height adjustment of swivel arm
Wide speed range allows ideal speed settings
Thread cutting takes place by change of spindle rotation
PRODUCT SPECIFICATIONS
Drilling capacity max. 32 mm
Thread cutting max. M24
Distance spindle to column min./max. 310 - 820 mm
Vertical movement of the support 500 mm
Travel of drill head (horizontally) 510 mm
Spindle stroke 250 mm
Spindle speeds (6) 75 - 1220 rpm
Morse taper MT 4
Feed range 0,1 / 0,16 / 0,25 mm/rev.
Distance spindle to box table 16 - 515 mm
Distance spindle to base 370 - 870 mm
Box table (L x W x H)
400 x 400 x 350 mm
Clamping area base 825 x 690 mm
Column diameter 200 mm
Lifting motor 0,75 kW
Motor power 1,5 kW
Machine dimension (W x D x H) 1470 x 750 x 2100 mm
Weight approx. 1200 kg
Standard
Box table
Coolant device
LED working light
Lifting motor
Height adjustable protective cover
Operating tool
