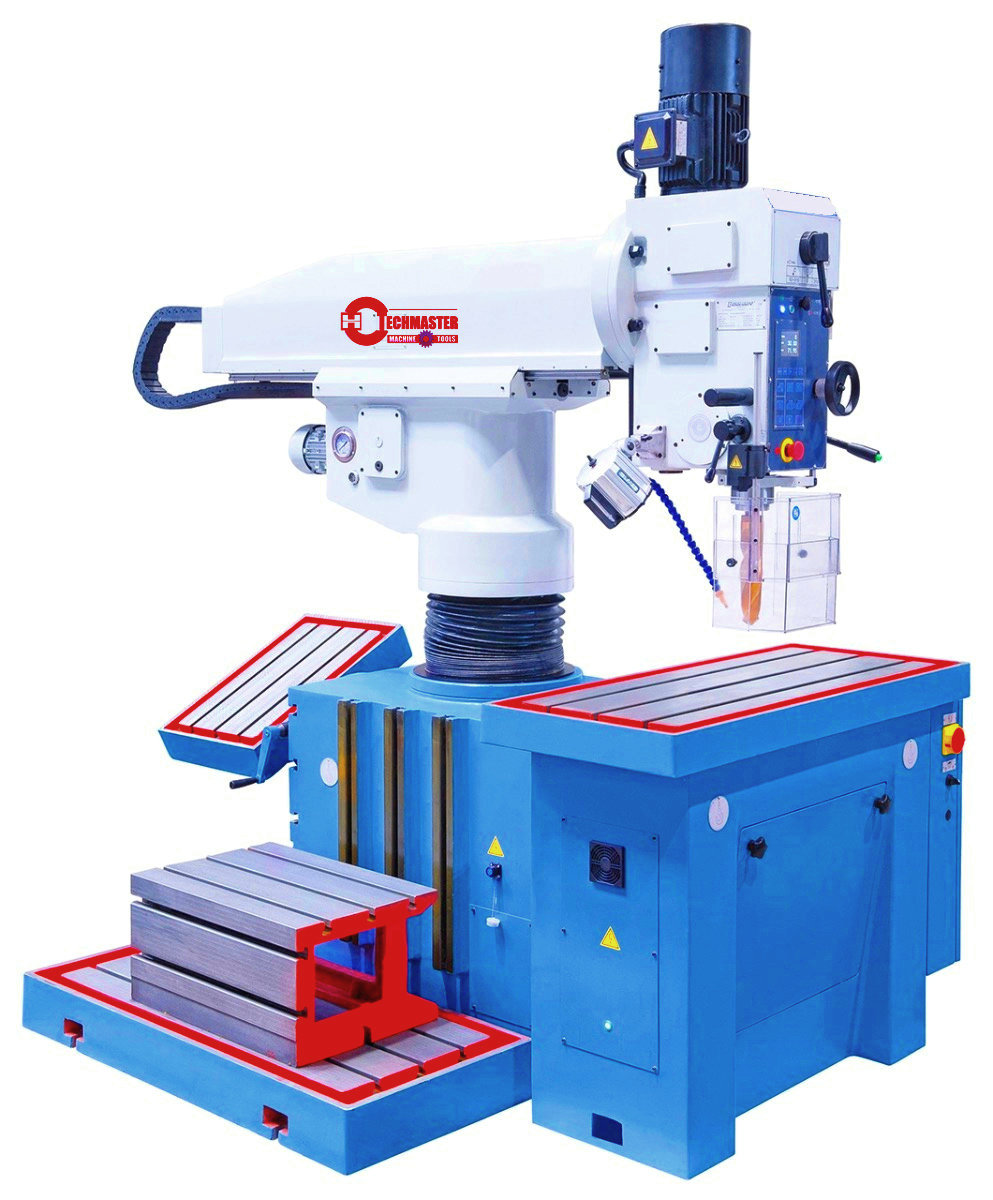

PRODUCT PROPERTIES
The construction allows a variety of clamping and processing possibilities
Electromotive height adjustment of drill head without changing drill position, ideal for deep hole drilling
Drill head tilts 180°, support tilts horizontal and can be moved forwards and backwards
Thread cutting device and 6 automatic drill feeds as standard
Large table size (1195 x 500 mm) for simultaneous mounting of several workpiecesSolid construction eliminates vibrations
Digital display of speed and drill depth included
Quick adjustment of drill head to workpiece, hydraulic clamping
All settings are made directly on the large touchscreen display
Solidly designed column guarantees high rigidity of extension arm
Electronic, stepless speed adjustment as standard
PRODUCT SPECIFICATIONS
Drilling capacity max. 40 mm
Thread cutting max. M30
Distance spindle to column min./max. 370 - 950 mm
Vertical movement of the support 390 mm
Drill head tiltable -90° to +90°
Spindle stroke 200 mm
Spindle speed, stepless 50 - 316 / 316 - 2000 rpm
Morse taper MT 4
Feed range (6) 0,08 - 0,50 mm/rev.
Distance spindle to table surface 390 - 780 mm
Table size 1195 x 500 mm
T-slot size 18 mm
Column diameter 220 mm
Motor power 2,2 kW
Machine dimension (W x D x H) 1200 x 2450 x 2720 mm
Weight approx. 2800 kg
DELIVERY CONTENTS
Electromagnetic spindle feed
Digital readout of speeds
Digital readout of drill depth
Touchscreen
Electromotive drill head adjustment
Initial filling with Shell Tellus 46
Keyless drill chuck 1 - 13 mm / B 16
Drill chuck arbor MT 4 / B 16
Morse taper drill sleeve MT 4 / 3, 4 / 2, 3 / 1
LED machine light
Thread cutting device
Tiltable horizontal table 400 x 600 mm
Box table 420 x 600 x 300 mm
Clamping plate 1200 x 550 mm
Coolant pump
Height adjustable protective cover
