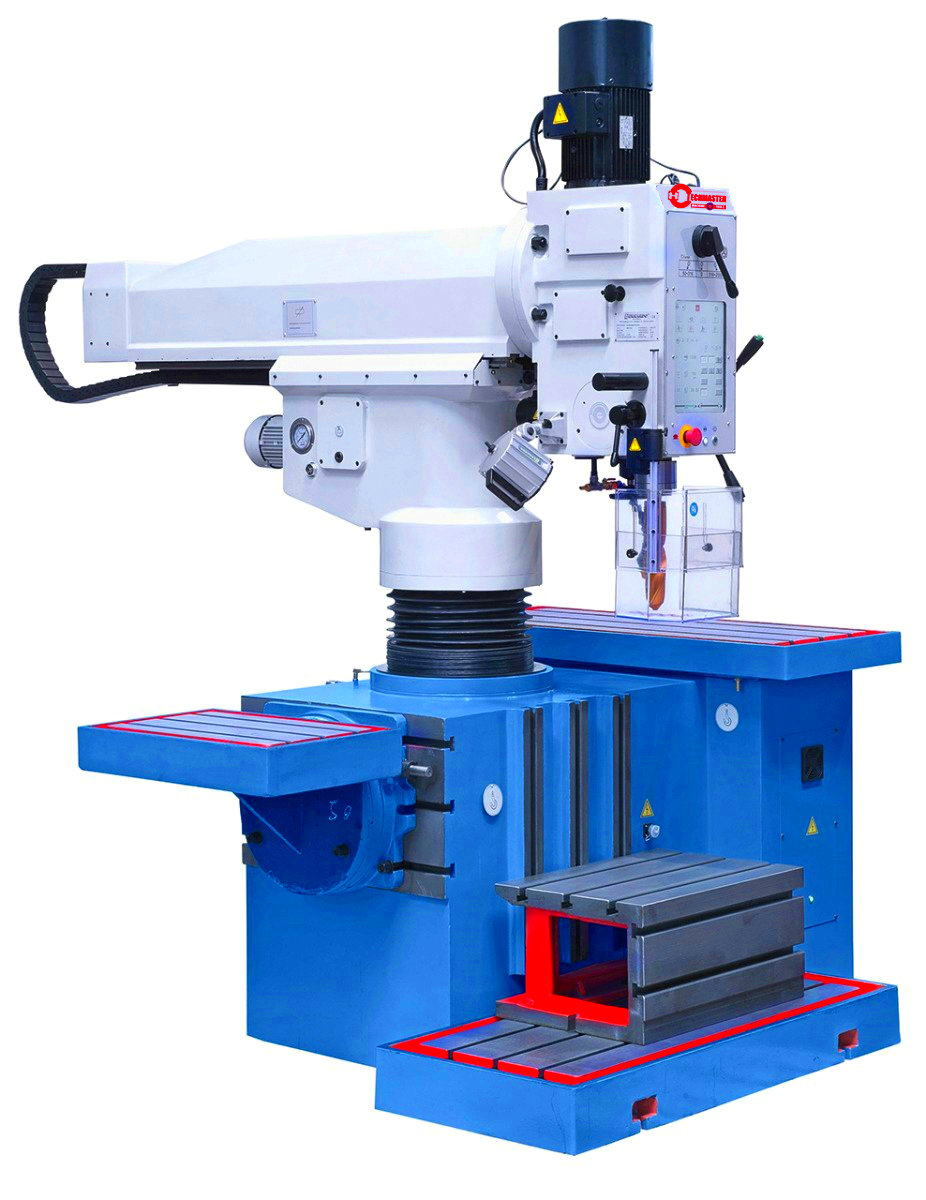

The standard Bohrtronic control calculates the ideal speed or feed rate for drilling and thread cutting after entering the tool diameter and material (cast iron / steel)
Innovative design and construction allows numerous options for clamping and processing
Electromotive height adjustment of drill head without changing the drill position, ideal for drilling deep holes
Large table size (1200 x 500 mm) to allow simultaneous clamping of several workpieces
Quick adjustment of drill head to each workpiece, hydraulic clamping
Comes complete with electronic, stepless speed adjustment and 2 gear settings
Reinforced column guarantees rigidity of drill arm
Solid construction guarantees processing free from vibrations
The quill feed takes place by a high quality servo motor
Complete with stepless speed, set speed is visible on digital display
Drilling capacity max. | 50 mm |
Thread cutting max. | M36 |
Distance spindle to column min./max. | 360 - 950 mm |
Vertical movement of the support | 400 mm |
Drill head tiltable | -90° to +90° |
Spindle stroke | 240 mm |
Spindle speed, stepless | 50 - 316 / 316 - 2000 rpm |
Morse taper | MT 4 |
Feed range | 1 - 300 mm/min |
Distance spindle to table surface | 390 - 780 mm |
Table size | 1200 x 500 mm |
T-slot size | 18 mm |
Column diameter | 240 mm |
Motor power | 3,0 kW |
Machine dimension (W x D x H) | 1250 x 2500 x 2800 mm |
Weight approx. | 2800 kg |
Electromagnetic spindle feed
Touchscreen with Bohtronic control
Servomotor for spindle feed
Frequency inverter
Electromotive drill head adjustment
Initial filling with Shell Tellus 46
Morse taper drill sleeve MT 4 / 3, 4 / 2, 3 / 1
Thread cutting device
Coolant device
LED machine light
Height adjustable protective cover
Tools
