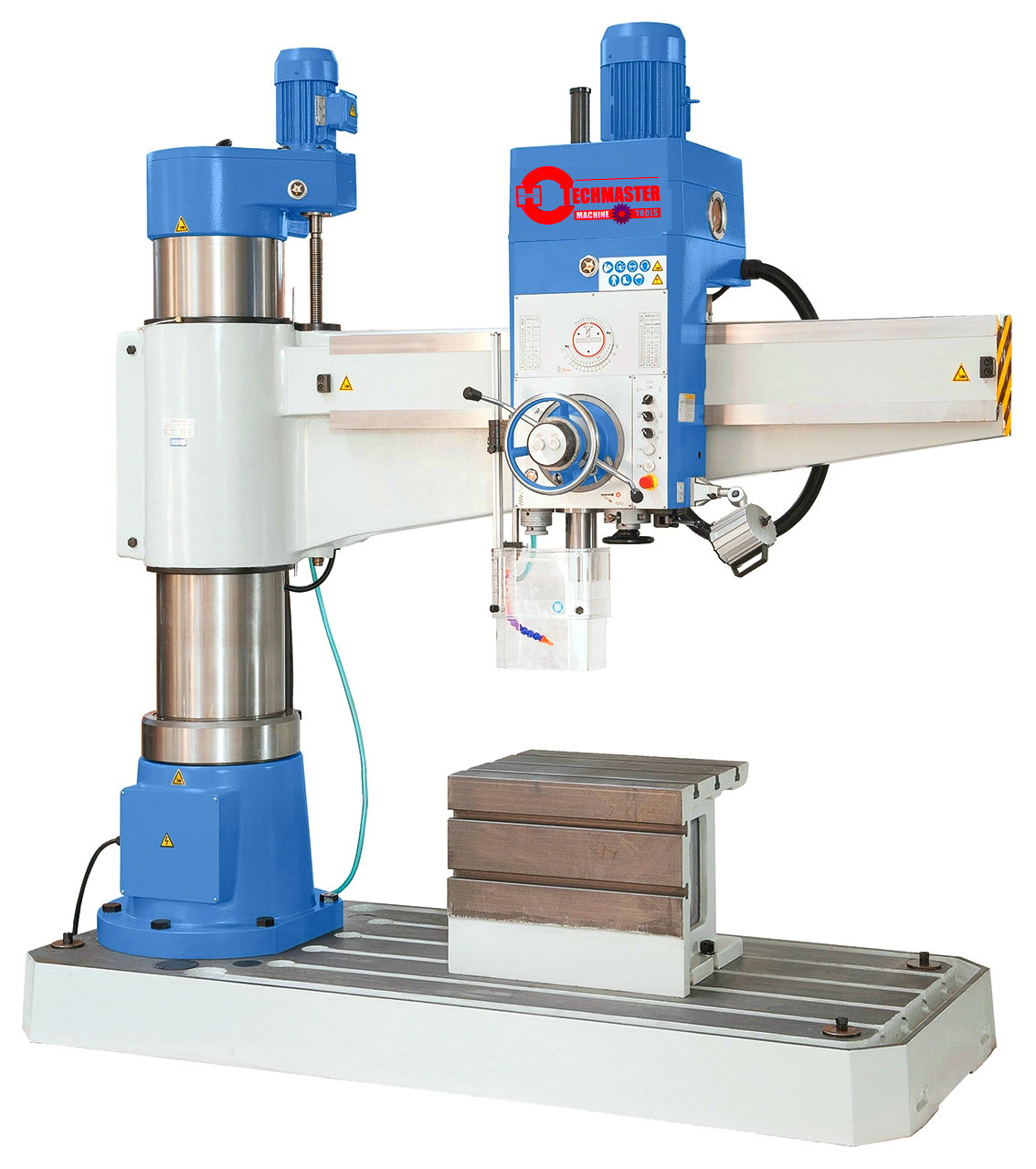

RADIAL DRILLING MACHINE Z3050x16/1

PRODUCT PROPERTIES

Oversize base plate, ideal for processing of large workpieces

Torsion-free, polished column promotes sliding capacity of radial arm

Radial arm and drill head feature independent hydraulic clamp

Lifting motor allows for easy height adjustment of radial arm

Ideal for drilling, countersinking, reaming and tapping

Hardened, polished gears in oil bath

Polished surface ensures for smooth movement of drill head on radial arm

PRODUCT SPECIFICATIONS

Drilling capacity max. 50 mm

Thread cutting max. M42

Distance spindle to column min./max. 350 – 1590 mm

Vertical movement of the support 590 mm

Travel of drill head (horizontally) 1240 mm

Spindle stroke 320 mm

Morse taper MT 5

Spindle speeds (16) 25 - 2000 rpm

Feed range (16) 0,04 – 3,2 mm/rev.

Distance spindle to box table 150 - 740 mm

Distance spindle to base 645 - 1240 mm

Clamping area base 1600 x 980 mm

Box table (L x W x H) 620 x 490 x 495 mm

Motor power 4,0 kW

Machine dimension (W x D x H) 2450 x 980 x 2840 mm

Weight approx. 3500 kg

 Standard Accessories

Box table

Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2

LED machine light

Initial filling with Shell Tellus 46

Coolant device

Lifting motor

Hydraulic motor

Tools

Height adjustable protective cover
