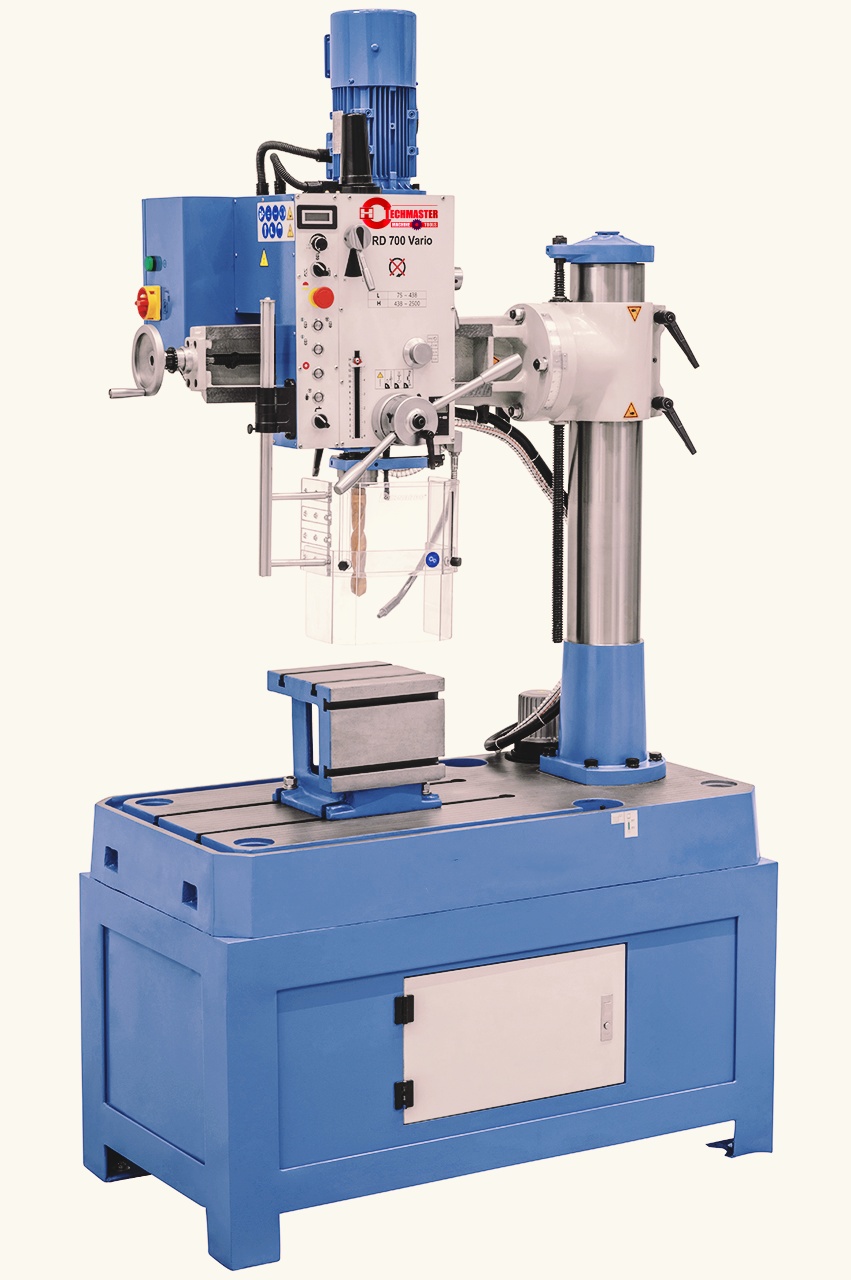

Radial drilling machine RD 700 Vario
| Quantity: | |
|---|---|
The RD 700 Vario is a heavy radial drilling machine featuring stepless speed adjustment, automatic spindle feed and a digital speed display. For an extended range of applications, the machine also has a pivoting support arm (± 45°).
Stepless speed adjustment, easy readout on digital display
Serially equipped with automatic spindle feed and thread cutting device
Polished base features T-slots for clamping of oversize workpieces
Smooth surface of column guarantees easy movement of arm

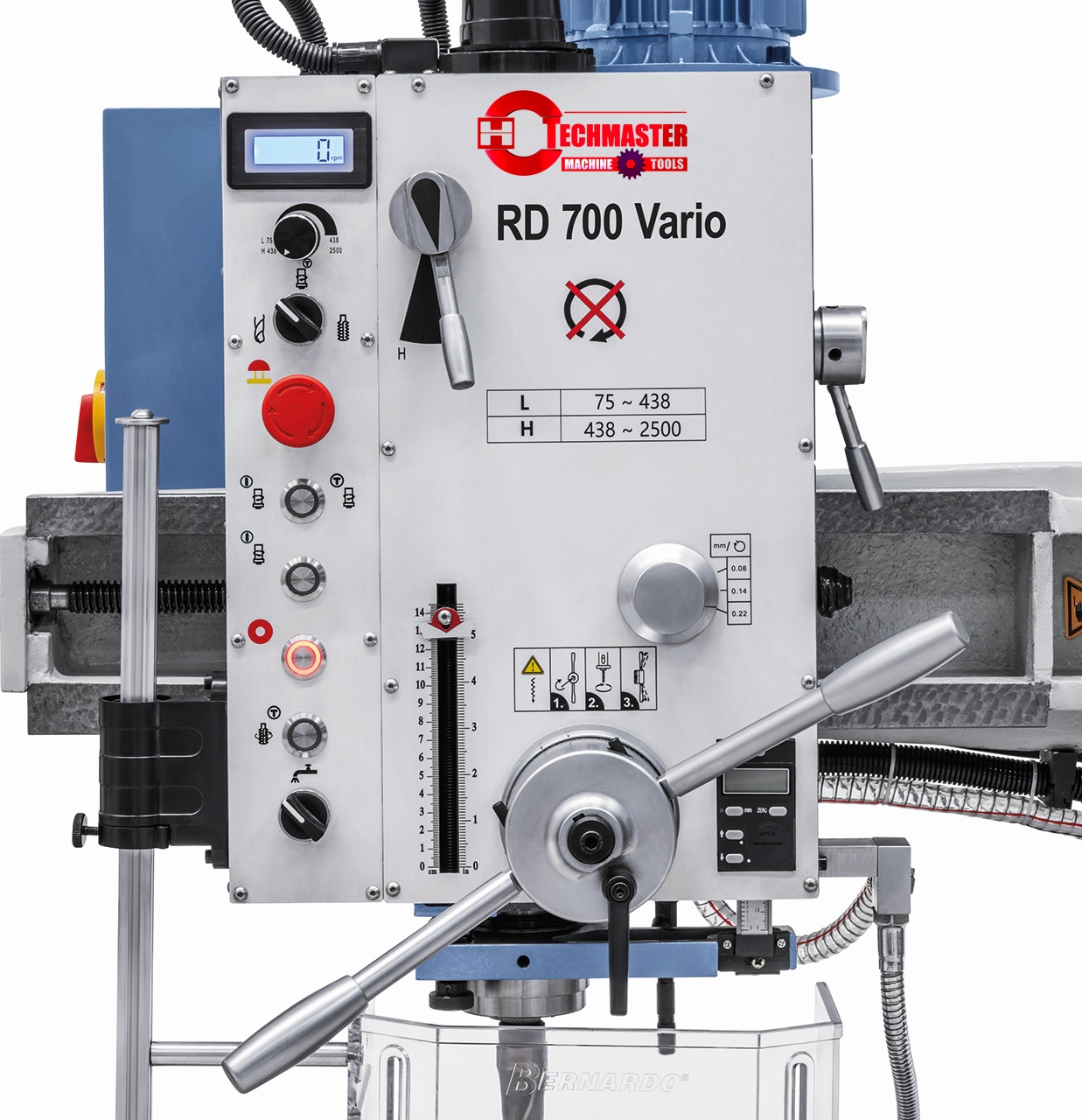

User-friendly control elements on front of machine
Optimal cutting speed through stepless adjustable speed
Drill head, column and radial arm are clamped mechanically
Ideal for drilling, countersinking, reaming and tapping
Drilling capacity max. | 32 mm |
Thread cutting max. | M22 |
Distance spindle to column min./max. | 300 - 700 mm |
Vertical movement of the support | 505 mm |
Travel of drill head (horizontally) | 400 mm |
Spindle stroke | 130 mm |
Spindle speeds / 2 steps | 75 - 438 / 438 - 2500 rpm |
Morse taper | MT 3 |
Feed range | 0,08 / 0,14 / 0,22 mm/rev. |
Distance spindle to box table | 0 - 430 mm |
Distance spindle to base | 175 - 680 mm |
Box table (L x W x H) | 250 x 250 x 250 mm |
Clamping area base | 900 x 620 mm |
Column diameter | 150 mm |
Motor power | 1,5 kW |
Machine dimension (W x D x H | 1220 x 640 x 1750 (2350*) mm |
Weight approx.* | 722 kg |
* with optional stand
Box table
Drill chuck 3 - 16 mm / B18
Drill chuck arbor MT 3 / B 18
Morse taper drill sleeve MT 3 / 2
Collant device
Thread cutting device
Digital speed indication
Digital drill depth indication
Height adjustable protective cover
Operating tool
