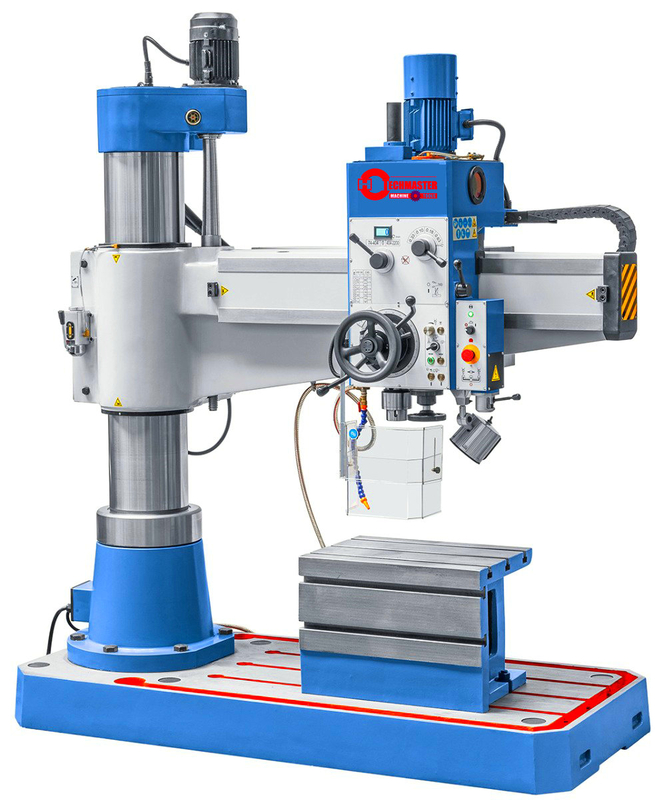

VARIO RADIAL DRILLING MACHINE Z3040Vx13

PRODUCT PROPERTIES

Complete with stepless speed, set speed is visible on digital display

Spindle features high concentricity and automatic spindle brake

Radial arm, drill head and column each with hydraulic clamp

Large base plate, ideal for processing of oversize workpieces

Torsion-free, polished column increases sliding capacity of radial arm

Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations

Control switch allows for individual clamping or unclamping of drill head and/or column

Guiderails on radial arm are hardened and polished

Counter weight on spindle to ensure optimal balance

Ideal for drilling, countersinking, reaming and tapping

PRODUCT SPECIFICATIONS

Drilling capacity max. 40 mm

Thread cutting max.M40

Distance spindle to column min./max. 300 - 1300 mm

Vertical movement of the support 600 mm

Travel of drill head (horizontally) 1000 mm

Spindle stroke 290 mm

Morse taper MT 4

Spindle speeds 74 - 404 / 404 - 2200 rpm

Feed range (4) 0,1 - 0,63 mm/rev.

Distance spindle to box table 100 - 700 mm

Distance spindle to base 570 - 1170 mm

Clamping area base 1220 x 900 mm

Box table (L x W x H) 640 x 450 x 450 mm

Motor power 2,2 kW

Machine dimension (W x D x H) 2050 x 1050 x 2560 mm

Weight approx. 2380 kg

Standard Accessories

Box table

Drill chuck arbor

Morse taper drill sleeve

LED machine light

Initial filling with Shell Tellus 46

Coolant device

Frequency inverter

Digital readout of speeds

Lifting motor

Hydraulic motor

Height adjustable protective cover

Tools
