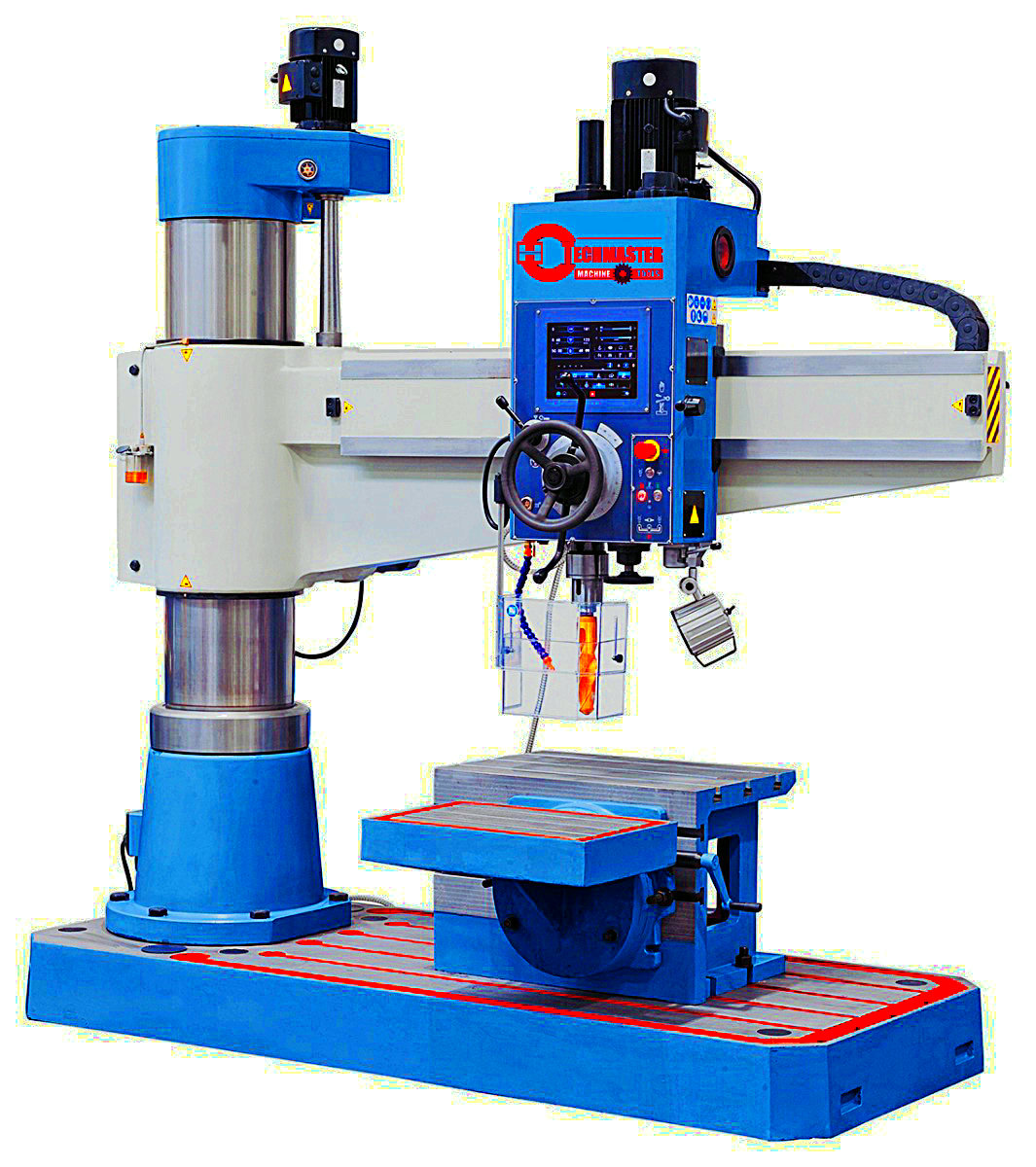

CNC RADIAL DRILLING MACHINE ZK3060X16(NT)

PRODUCT PROPERTIES

Large touchscreen for all settings, such as speed, drilling / thread cutting, height adjustment of support arm,…

The quill feed takes place by a high quality servo motor

Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations

Electronically adjustable drill depth including checking of the input value

Complete with stepless speed, set speed is visible on digital display

Display of the measurements either mm or inchGuiderails on radial arm are hardened and polished Counter weight on spindle to ensure optimal balance

Ideal for drilling, countersinking, reaming and tapping

PRODUCT SPECIFICATIONS

Drilling capacity max. 60 mm

Thread cutting max. M45

Distance spindle to column min./max. 350 - 1600 mm

Vertical movement of the support 585 mm

Travel of drill head  (horizontally) 1250 mm

Spindle stroke315 mm

Morse taper MT 5

Spindle speeds 38 - 275, 275 - 2000 rpm

Feed range 1 - 300 mm/min

Distance spindle to box table 165 - 750 mm

Distance spindle to base 665 - 1250 mm

Clamping area base 1740 x 980 mm

Box table (L x W x H) 750 x 500 x 500 mm

Motor power 4,0 kW

Machine dimension (W x D x H)

2490 x 1050 x 2780 mm

Weight approx. 3800 kg

Standard Accessories

Box table

Drill chuck arbor

Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2

LED working light

Initial filling with Shell Tellus 46

Coolant device

Touchscreen with Bohrtronic control

Servomotor for spindle feed

Frequency inverter

Lifting motor

Hydraulic motor

Height adjustable protective cover

Tools
