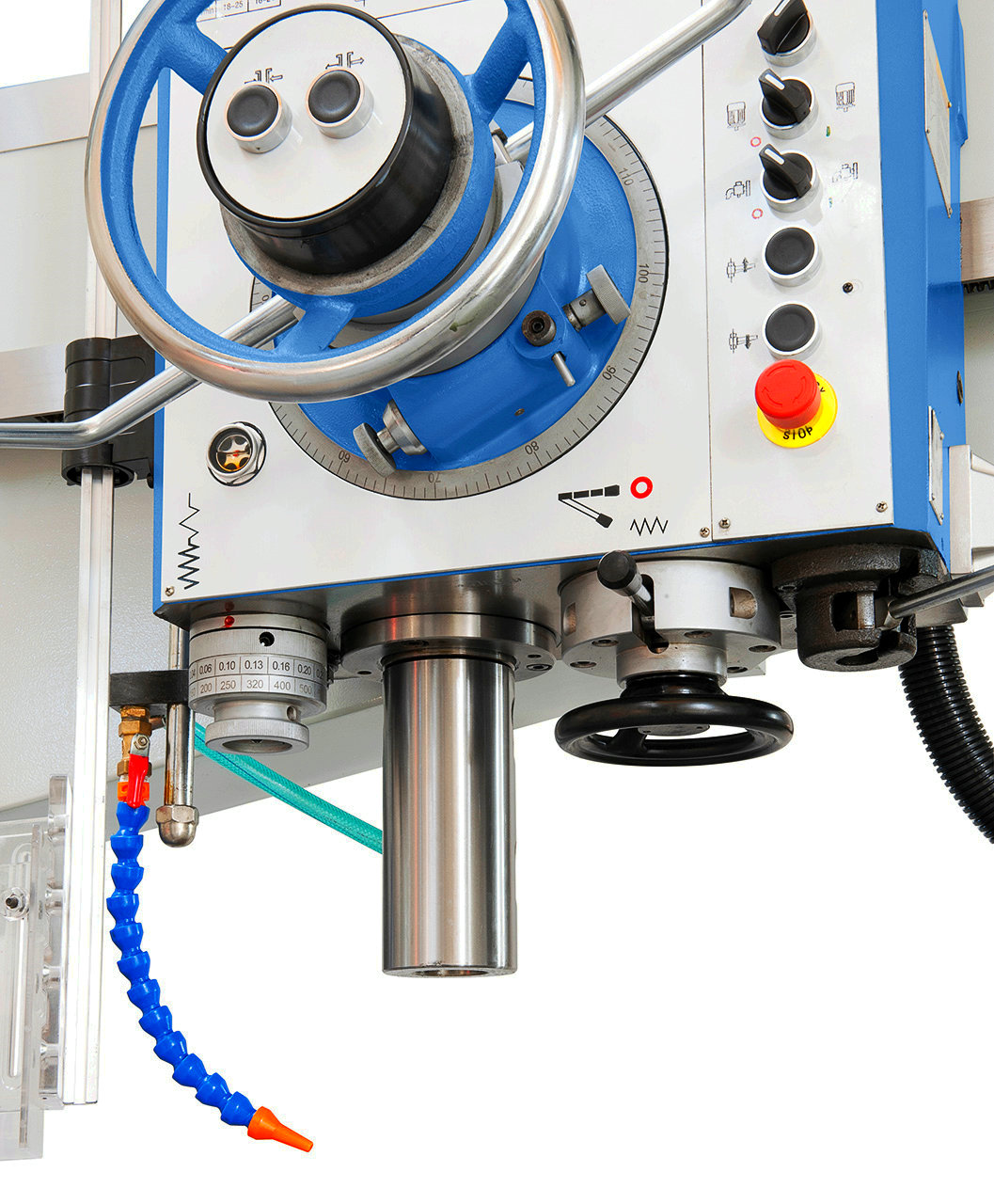

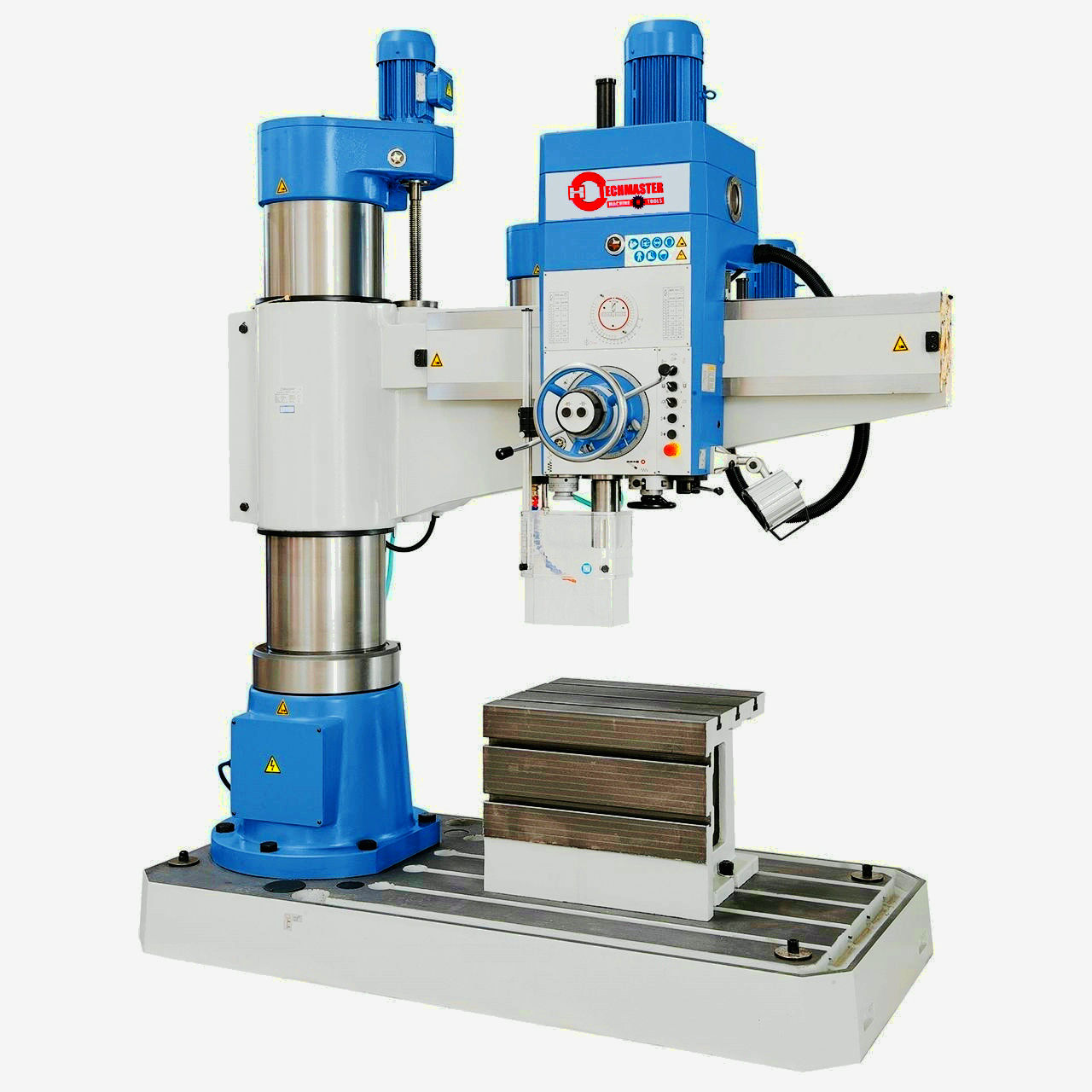

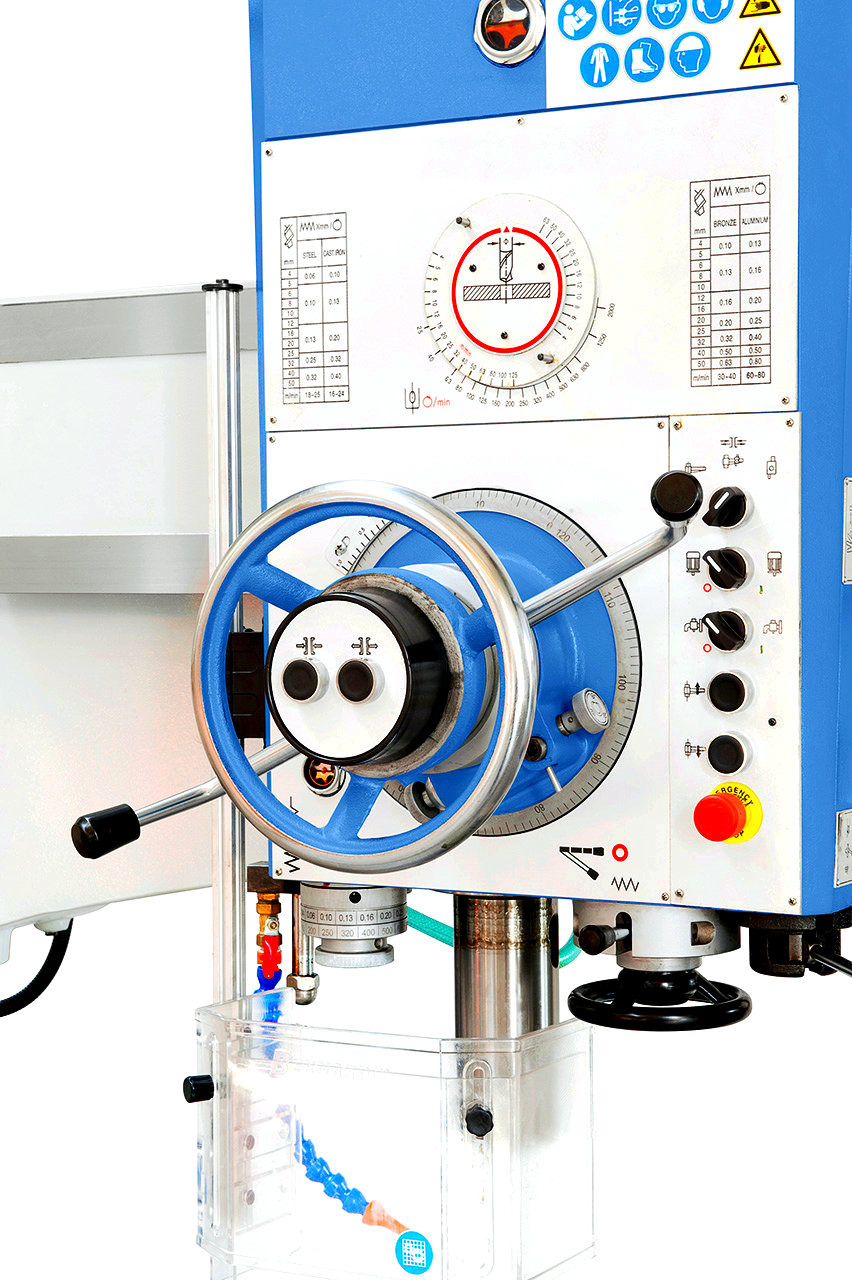

RADIAL DRILLING MACHINE Z3050x12/1

PRODUCT SPECIFICATIONS

Drilling capacity max. 50 mm

Thread cutting max. M42

Distance spindle to column min./max. 320 – 1220 mm

 Vertical movement of the support 580 mm

Travel of drill head (horizontally) 900 mm

Spindle stroke 335 mm

Morse taper MT 5 Spindle speeds (16) 25 - 2000 rpm

Feed range (16) 0,04 – 3,2 mm/rev.

Distance spindle to box table 0 - 670 mm

Distance spindle to base 330 – 1170 mm

Clamping area base 1300 x 980 mm

Box table (L x W x H) 630 x 500 x 500 mm

Motor power 4,0 kW

Machine dimension (W x D x H) 2035 x 1000 x 2830 mm

Weight approx. 3000 kg

Standard accessories

Box table

Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2

LED machine light

Initial filling with Shell Tellus 46

Coolant device

Lifting motor

Hydraulic motor

Tools

Height adjustable protective cover
