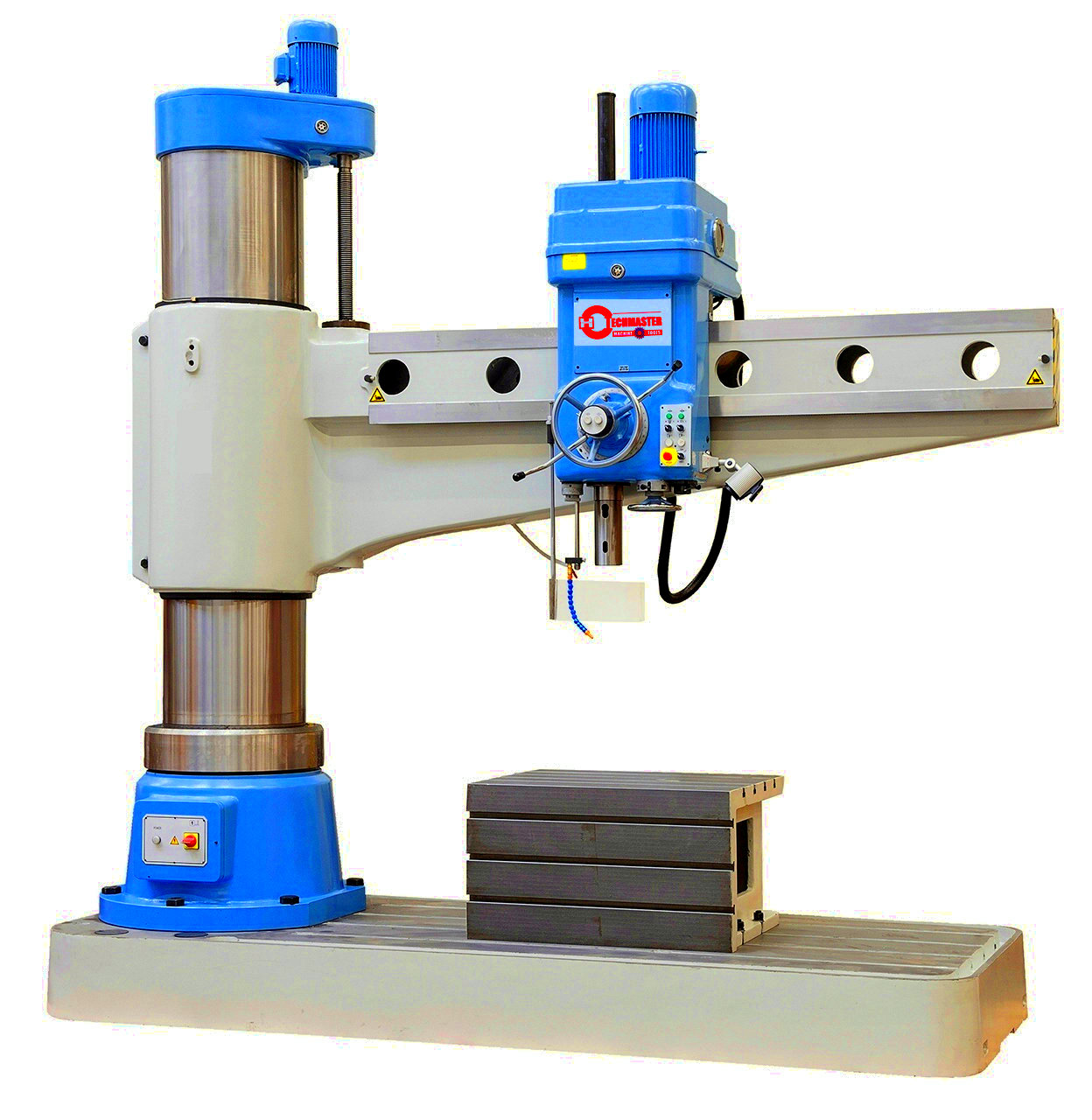

Oversize base plate, ideal for processing of large workpieces
Torsion-free, polished column promotes sliding capacity of radial arm
Radial arm and drill head feature independent hydraulic clamp
Lifting motor allows for easy height adjustment of radial arm
Ideal for drilling, countersinking, reaming and tapping
Hardened, polished gears in oil bath
Polished surface ensures for smooth movement of drill head on radial arm
Drilling capacity max. | 63 mm |
Thread cutting max. | M56 |
Distance spindle to column min./max. | 420 - 2000 mm |
Vertical movement of the support | 800 mm |
Travel of drill head (horizontally) | 1580 mm |
Spindle stroke | 405 mm |
Morse taper | MT 5 |
Spindle speeds | (16) 20 - 1600 rpm |
Feed range | (16) 0,04 - 3,2 mm/rev. |
Distance spindle to box table | 290 - 1075 mm |
Distance spindle to base | 795 - 1580 mm |
Clamping area base | 1980 x 1240 mm |
Box table (L x W x H) | 940 x 625 x 505 mm |
Motor power | 5,5 kW |
Machine dimension (W x D x H) | 3100 x 1240 x 3370 mm |
Weight approx. | 6500 kg |
Box table
Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2
LED machine light
Initial filling with Shell Tellus 46
Coolant device
Lifting motor
Hydraulic motor
Tools
Height adjustable protective cover
