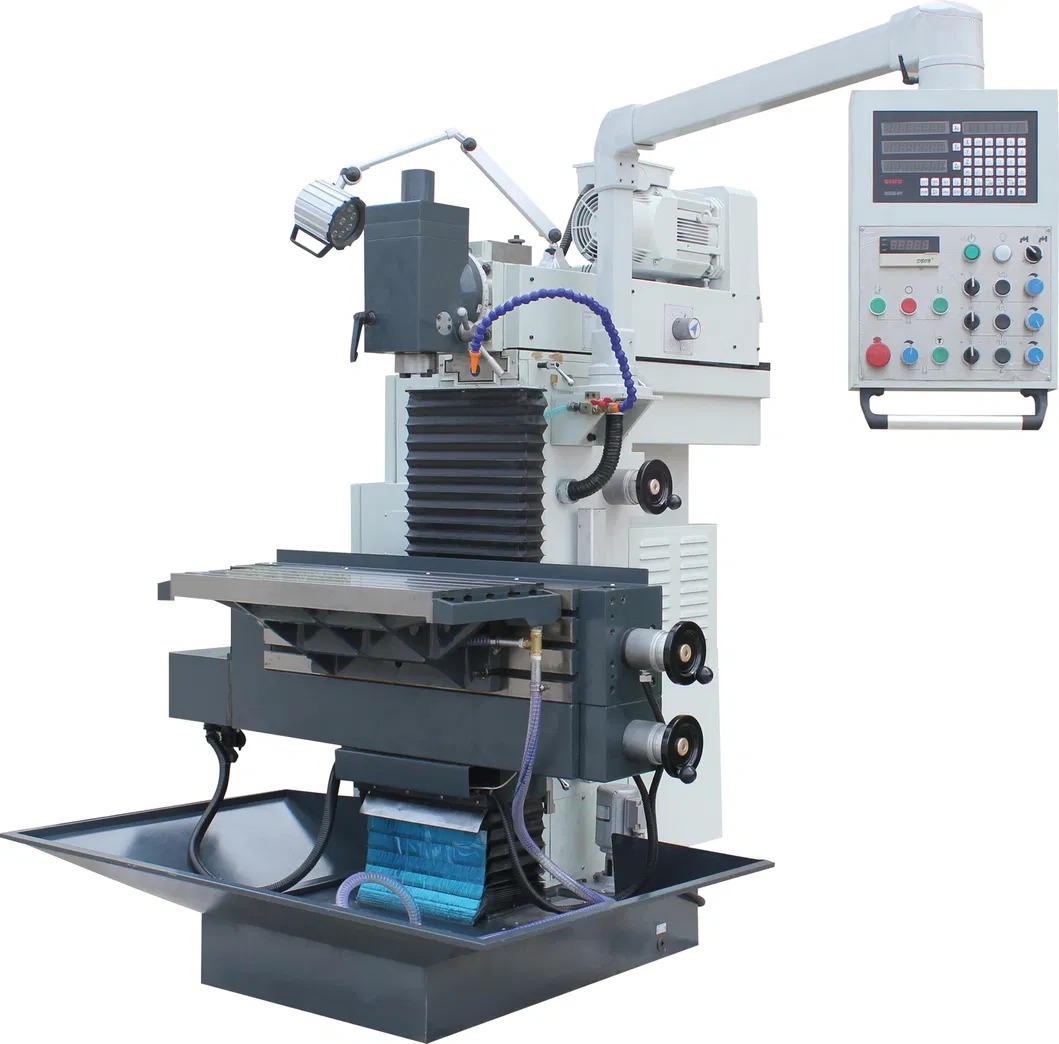

Customizable Universal Tool Milling Machine XL8132;XL8140;XL8145
| Quantity: | |
|---|---|
universal tool milling machine high flexibility powerful main motor
| Items | XL8132 | XL8140 | XL8145 |
| Working area | |||
| Worktable size (L×W) | 750x320mm | 800x400mm | 850x450mm |
| T slot (Width x No. x pitch) | 14x5x63mm | 14x6x63mm | 14x7x63mm |
| Vertical table size | 890x225mm | 1020x225mm | 1190x250mm |
| T slot (Width x No. x pitch) Vertical table | 14x3x63mm | ||
| Max. load of table | 160kg | 200kg | 300kg |
| Torque of feed motor (X) | 7.7Nm | 7.7Nm | 10Nm |
| Torque of feed motor (Y) | 7.7Nm | 7.7Nm | 10Nm |
| Torque of feed motor (Z) | 10Nm | 10Nm | 15Nm |
| Spindle axis-to-table surface distance(Horizontal) | 145-545mm | 145-545mm | 170-620mm |
| Spindle nose-to-table surface distance(Vertical) | 50-450mm | 50-450mm | 75-525mm |
| Travels | |||
| Longitudinal travel (X) | 405mm | 500mm | 600mm |
| Transverse travel (Y) | 305mm | 400mm | 450mm |
| Vertical travel (Z) | 400mm | 400mm | 450mm |
| Feeds of X Y Z axis | 10-1000mm/min | ||
| Rapid feed | 1200mm/min | ||
| Spindle | |||
| Spindle speed (V&H) | 2 steps; 40-260rpm, 260-2000rpm | ||
| Spindle taper (V&H) | NT40 | ||
| Vertical quill travel | 60mm | ||
| Main motor power | 3.7kW | 3.7kW | 5.5kW |
| Others | |||
| Machine size (L×W×H) | 1500x1700x1800mm | 1500x1700x1800mm | 1600x1800x2000mm |
| Net weight | 1450 kg | 1550 kg | 1750 kg |
XL81 series are a kind of general tool processing machine, which has vertical and horizontal milling function.
SPINDLE:
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is an ideal processing equipment for mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries.
DETAIL:
1). servo motors & ballscrews drives on X/Y/Z axes
2). easy shift between vertical & horizontal milling modes
3). automatic oil lubrication system
4). with electronic hand wheel, in addition to automatic feed
FEATURE:
√ step-less spindle speed, in high & low speed ranges, suitable for high-speed-fine-machining & low-speed-powerful-machining
√ vertical & horizontal spindles combined, for flexible operation
√ 60mm spindle stroke, milling and drilling functions are available

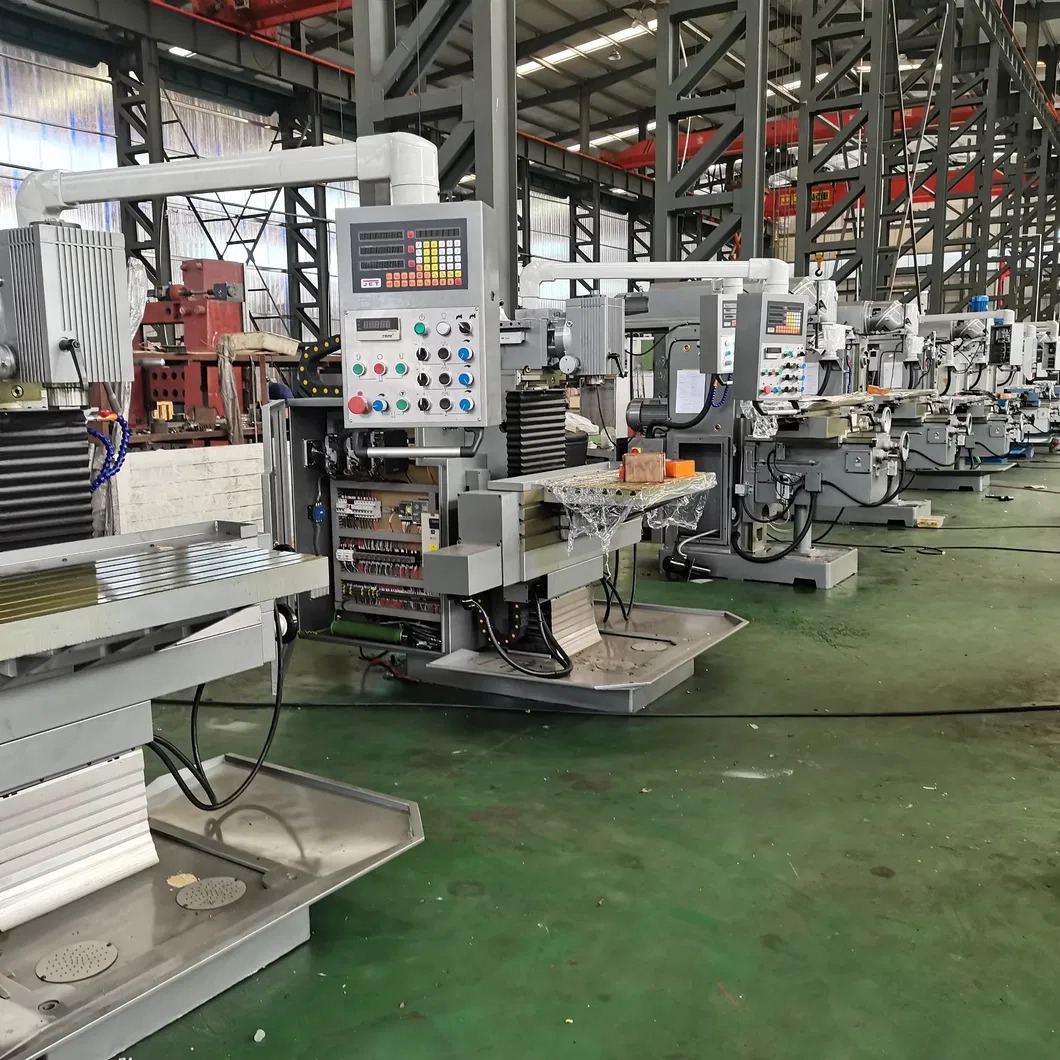

An innovative machine with latest advanced mechnics&electrics:

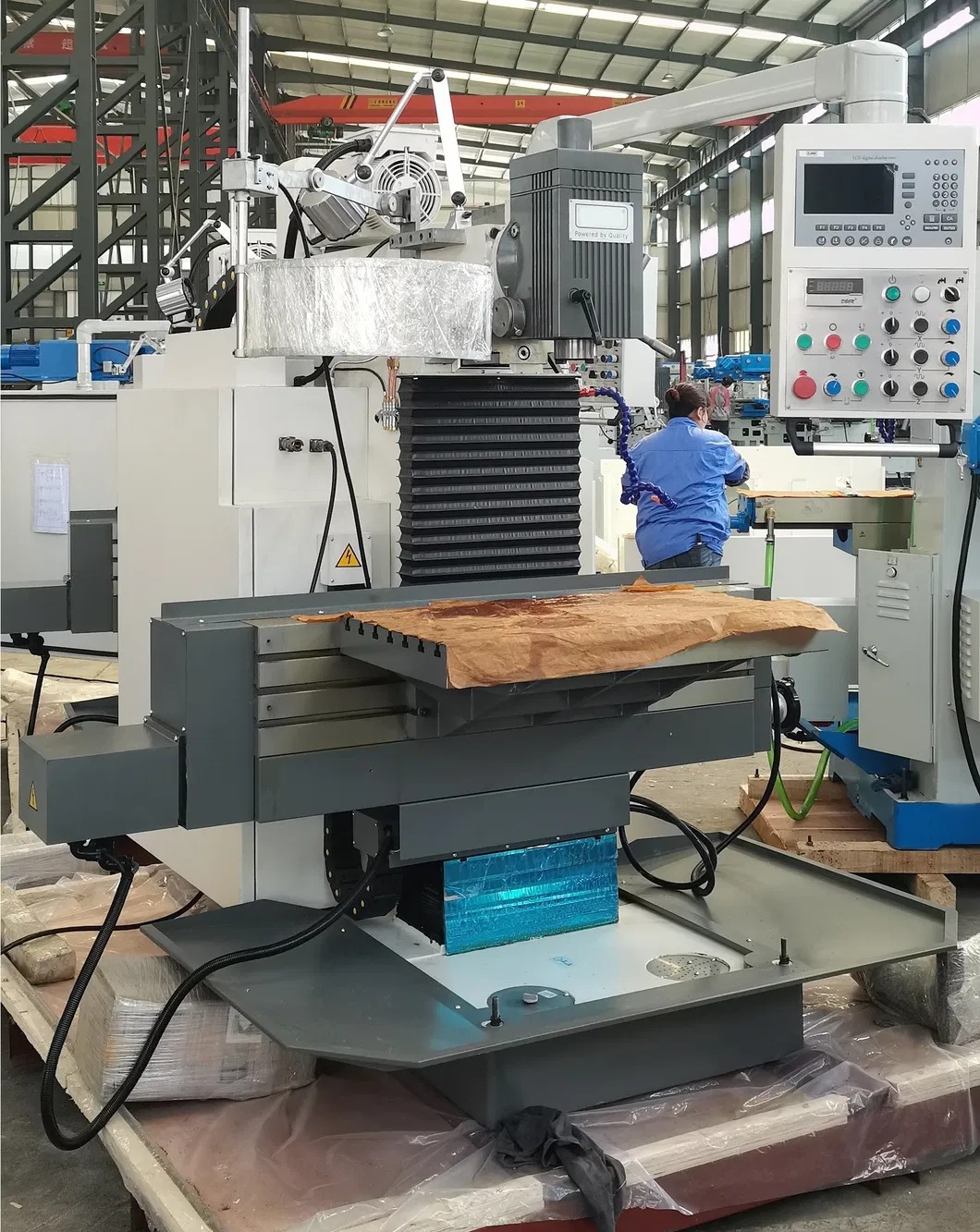

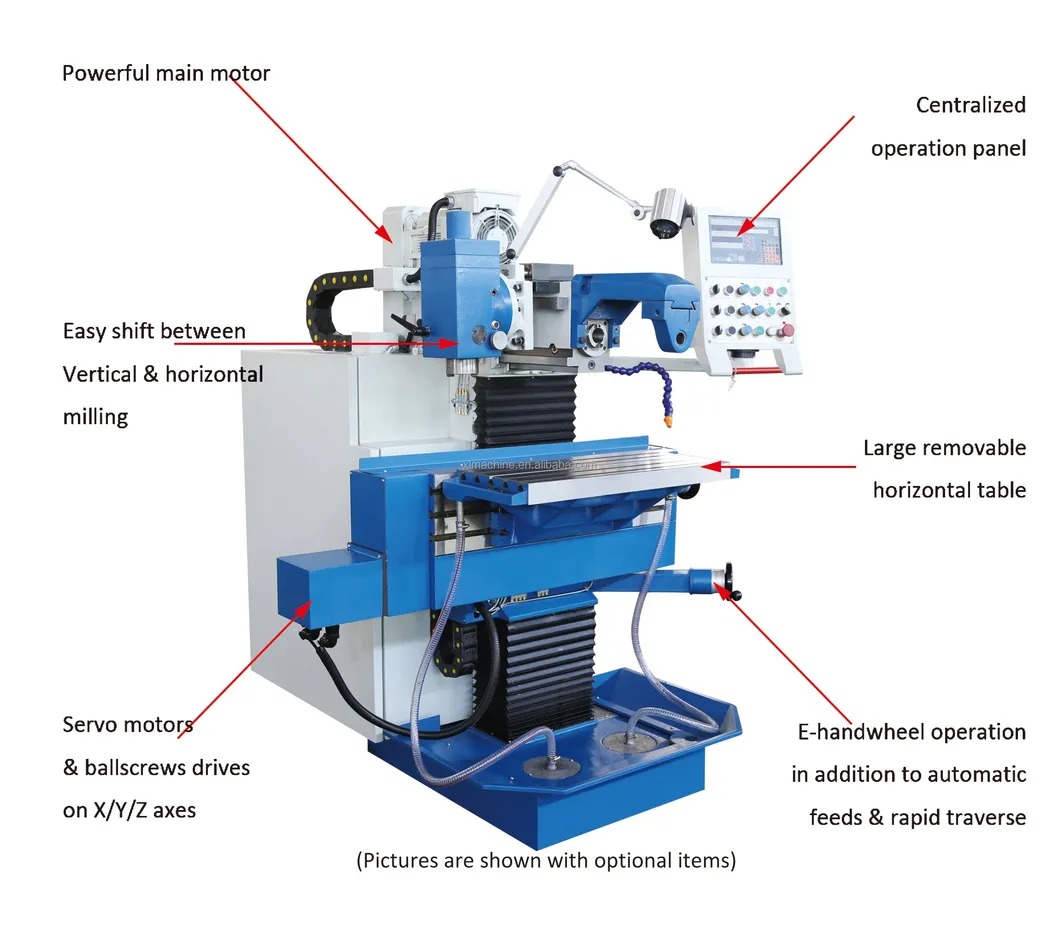

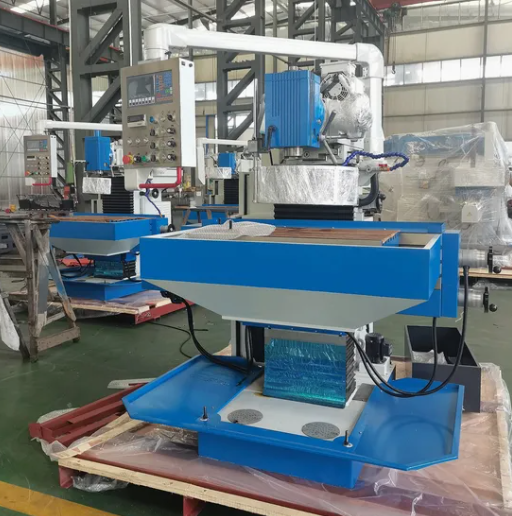

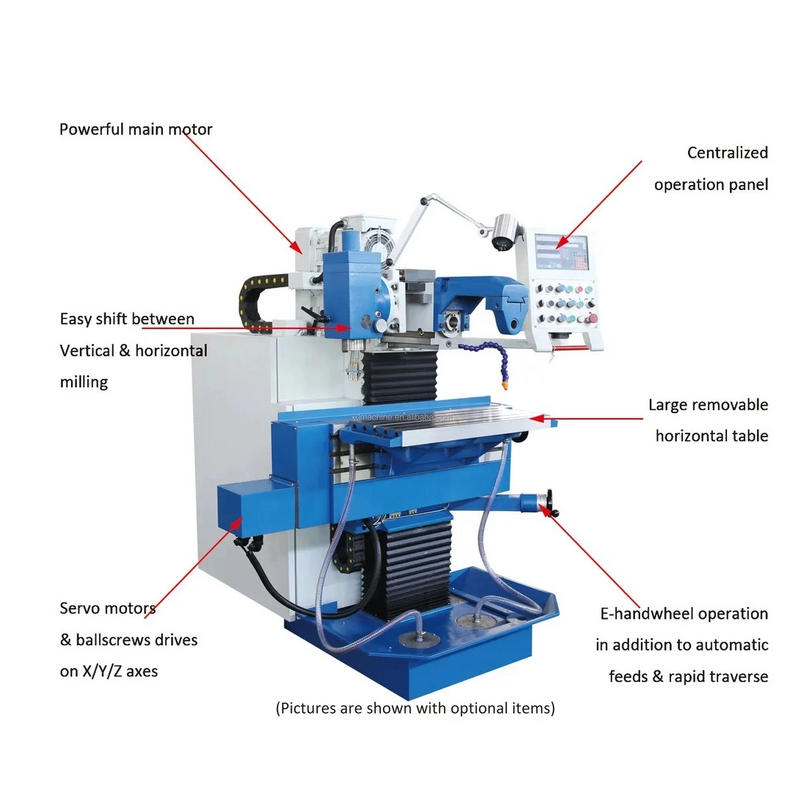

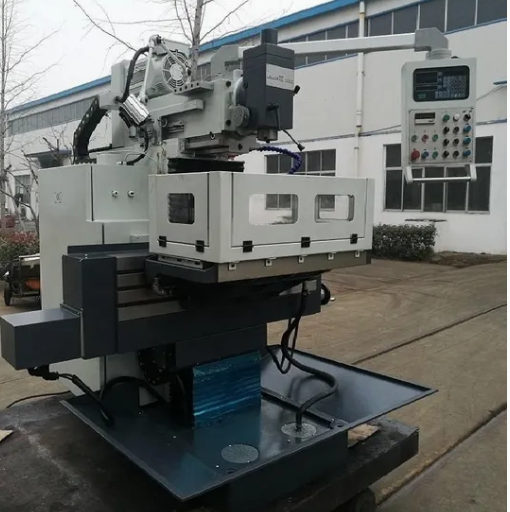

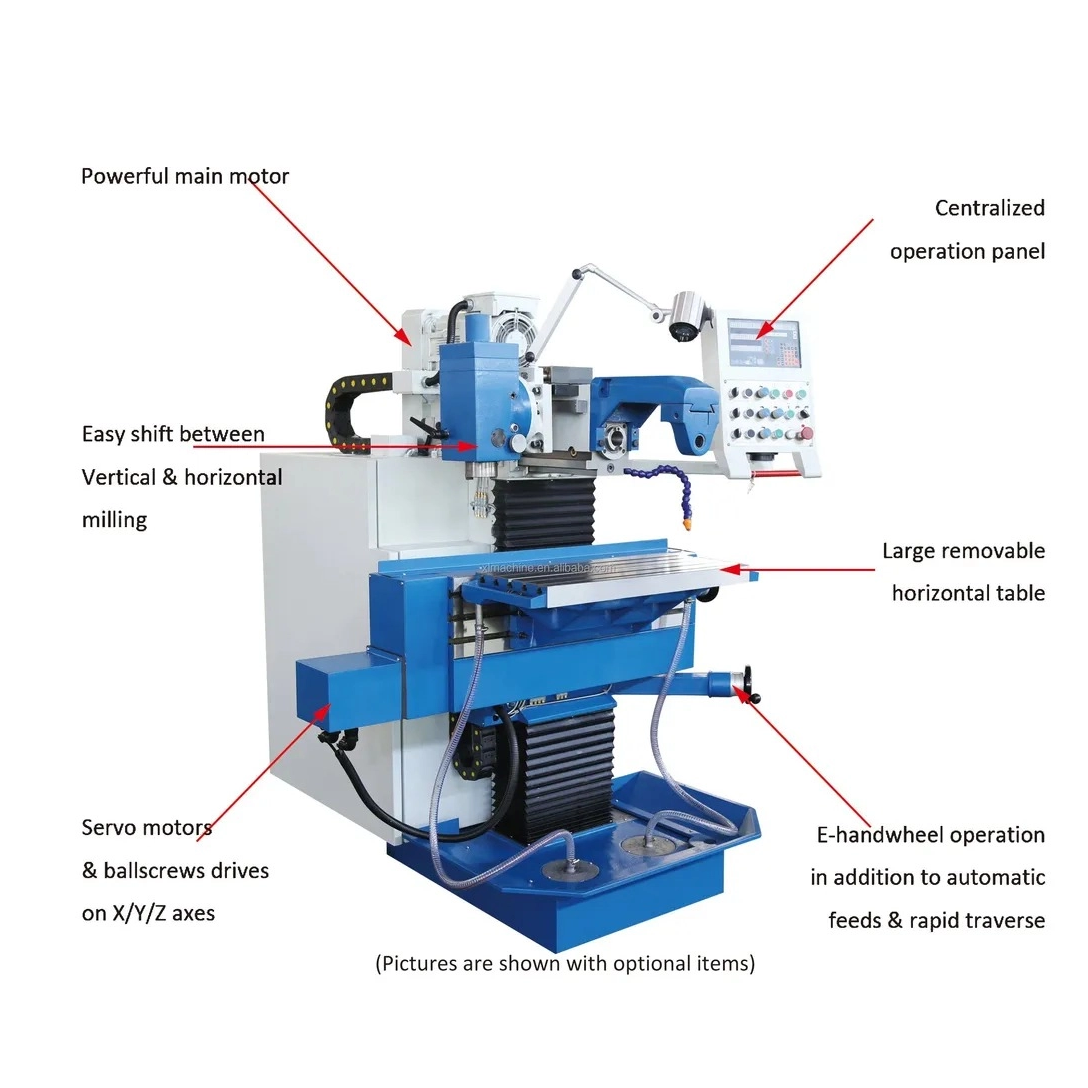

Φ High flexibility
√ combination of H&V spindles
√ designed with flexible modules
√ ideal for workshop & training
Φ High accuracy
√ variable spindle speeds in 2 steps
√ servo motors on X,Y and Z axes
√ ballscrews on X,Y and Z axes
Φ High efficiency
√ centralized operation panel
√ E-handwheel or auto operation
√ automatic lubrication
